ServicingtheHDDualPoint
Adjusters(DPA)
1.Removeallparts(refertotheInstallation
InstructionsfortheHDDPAKitandtoFigure
38).
2.Applyanti-seizecompoundtotheinsideof
thebushingareaoncuttingunitcenterframe
(Figure38).
3.Alignthekeysonangebushingstotheslotsin
theframeandinstallthebushings(Figure38).
4.Installawavewasherontotheadjustershaftand
slidetheadjustershaftintotheangebushings
intheframeofthecuttingunit(Figure38).
5.Securetheadjustershaftwithaatwasherand
locknut(Figure38).
6.Torquethelocknutto20to27N∙m(15to20
ft-lb).
Note:Thebedbaradjustershafthasleft-hand
threads.

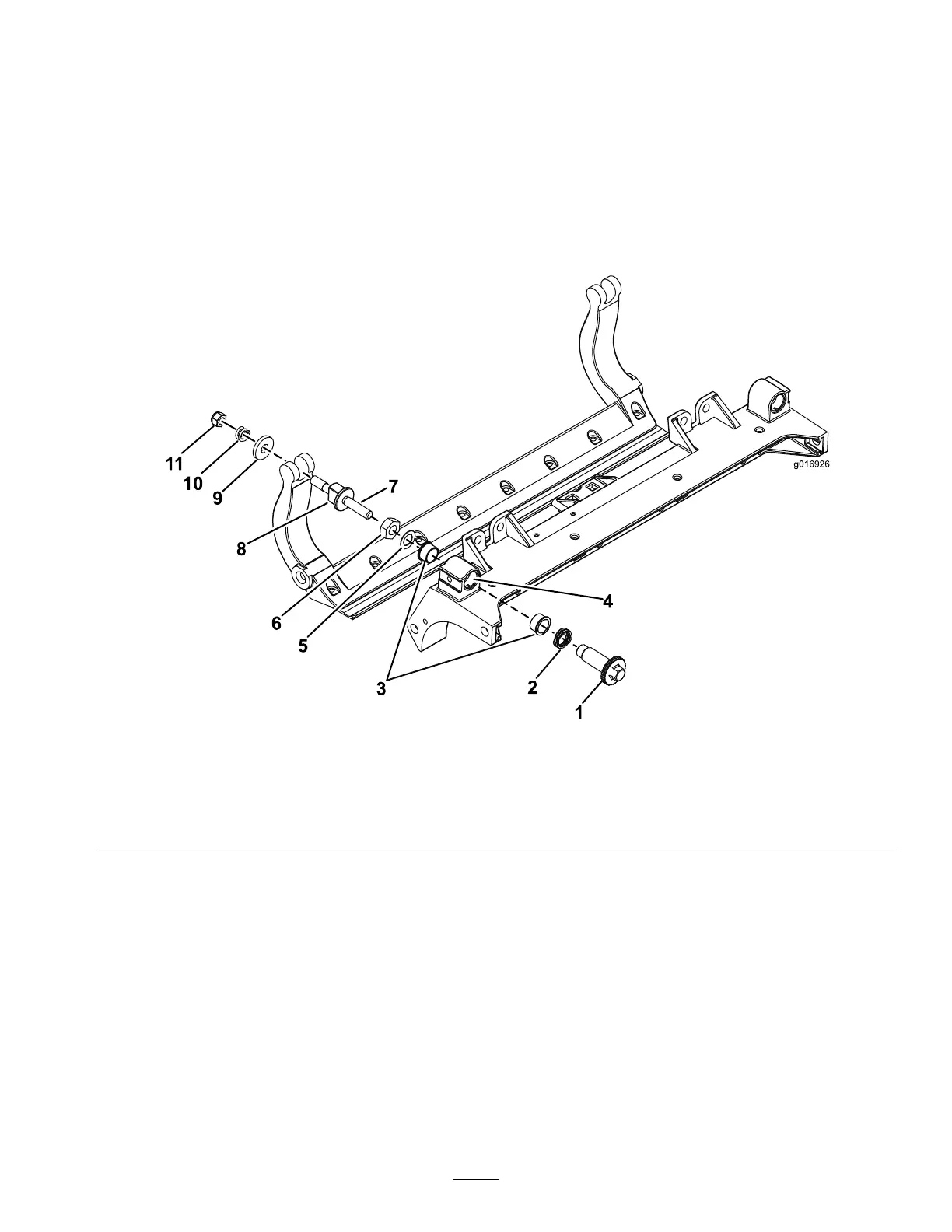

g016926
Figure38
1.Shaftadjuster
4.Applyanti-seizecompound
here.
7.Applyanti-seizecompound
here.
10.Compressionspring
2.Wavewasher5.Flatwasher8.Bedbar-adjusterscrew
11.Spring-tensionnut
3.Flangebushing
6.Locknut9.Hardenedwasher
7.Applyanti-seizecompoundtothethreadsofthe
bedbar-adjusterscrewthattintotheadjuster
shaft.
8.Threadthebedbar-adjusterscrewintothe
adjustershaft.
9.Looselyinstallthehardenedwasher,spring,and
springtensionnutontotheadjusterscrew.
10.Installthebedbar,positioningthemountingears
betweenthewasherandthebedbaradjuster.
11.Securethebedbartoeachsideplatewiththe
bedbarbolts(nutsonbolts)and6washers.
Note:Positionanylonwasheroneachsideof
theside-plateboss.
12.Placeasteelwasheroutsideeachofthenylon
washers(Figure38).
13.T orquethebedbarboltsto37to45N∙m(27to
33ft-lb).
14.Tightenthelocknutsuntiltheoutsidesteel
washerstopsrotatingandendplayisremoved
butdonotovertightenordeectthesideplates.
Note:Thewashersontheinsidemayhavea
gap(Figure38).
15.Tightenthenutoneachbedbar-adjuster
assemblyuntilthecompressionspringisfully
compressed,thenloosenthenut1/2turn(Figure
38).
