16.Repeatthisprocedureontheotherendofthe
cuttingunit.
17.Adjustthebedknifetothereel;refertoAdjusting
theBedknifetotheReel(page9).
ServicingtheRoller
TheRollerRebuildKit(PartNo.114-5430)andthe
RollerRebuildToolKit(PartNo.115-0803)(Figure
39)areavailableforservicingtheroller.TheRoller
RebuildKitincludesallthebearings,bearingnuts,
innerseals,andoutersealstorebuildaroller.
TheRollerRebuildToolKitincludesallthetoolsand
theinstallationinstructionsrequiredtorebuildaroller
withtherollerrebuildkit.Refertoyourpartscatalogor
contactyourauthorizedTorodistributorforassistance.

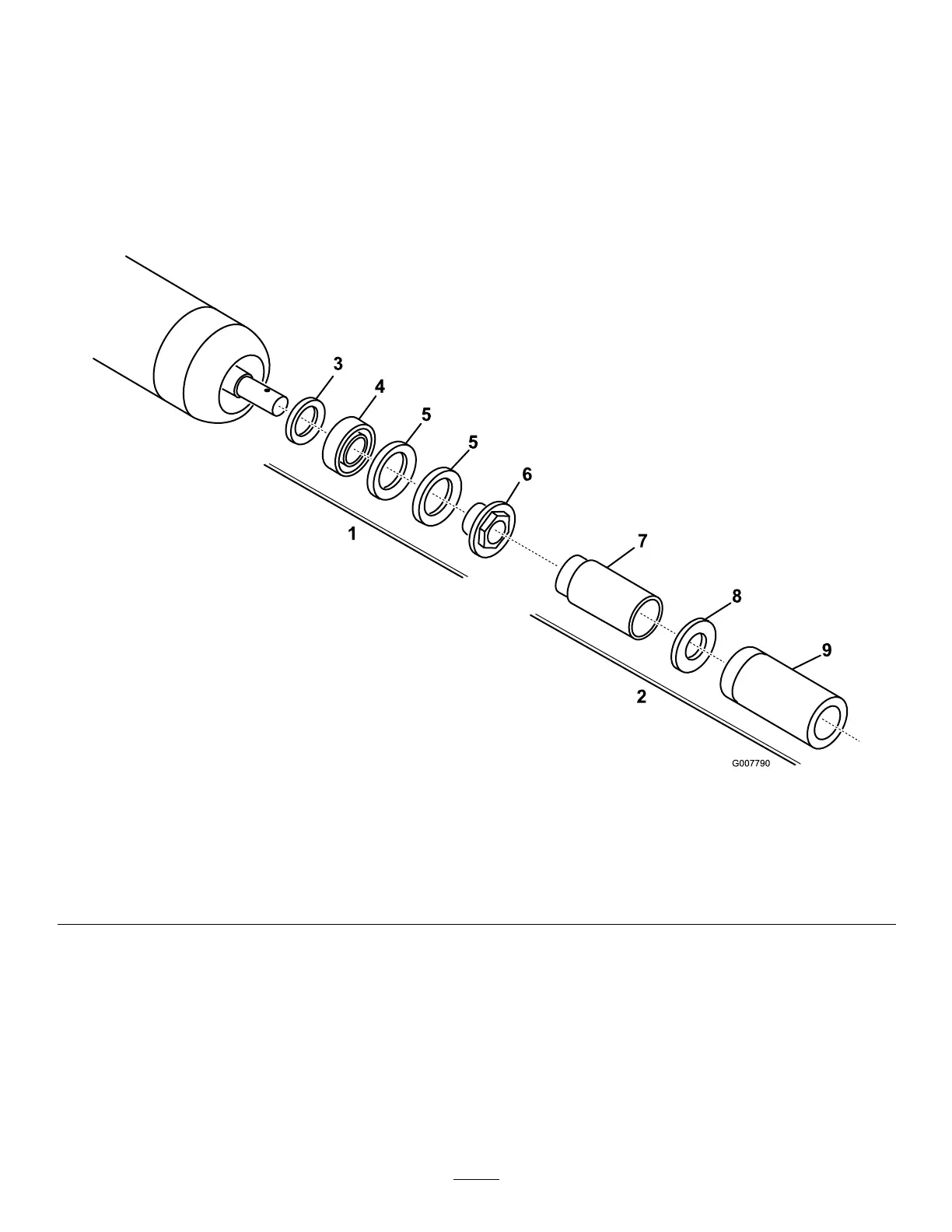

g007790
Figure39
1.RollerRebuildKit(PartNo.114-5430)
6.Bearingnut
2.RollerRebuildT oolkit(PartNo.115-0803)
7.Innersealtool
3.Innerseal8.Washer
4.Bearing
9.Bearing/outer-sealtool
5.Outerseal
