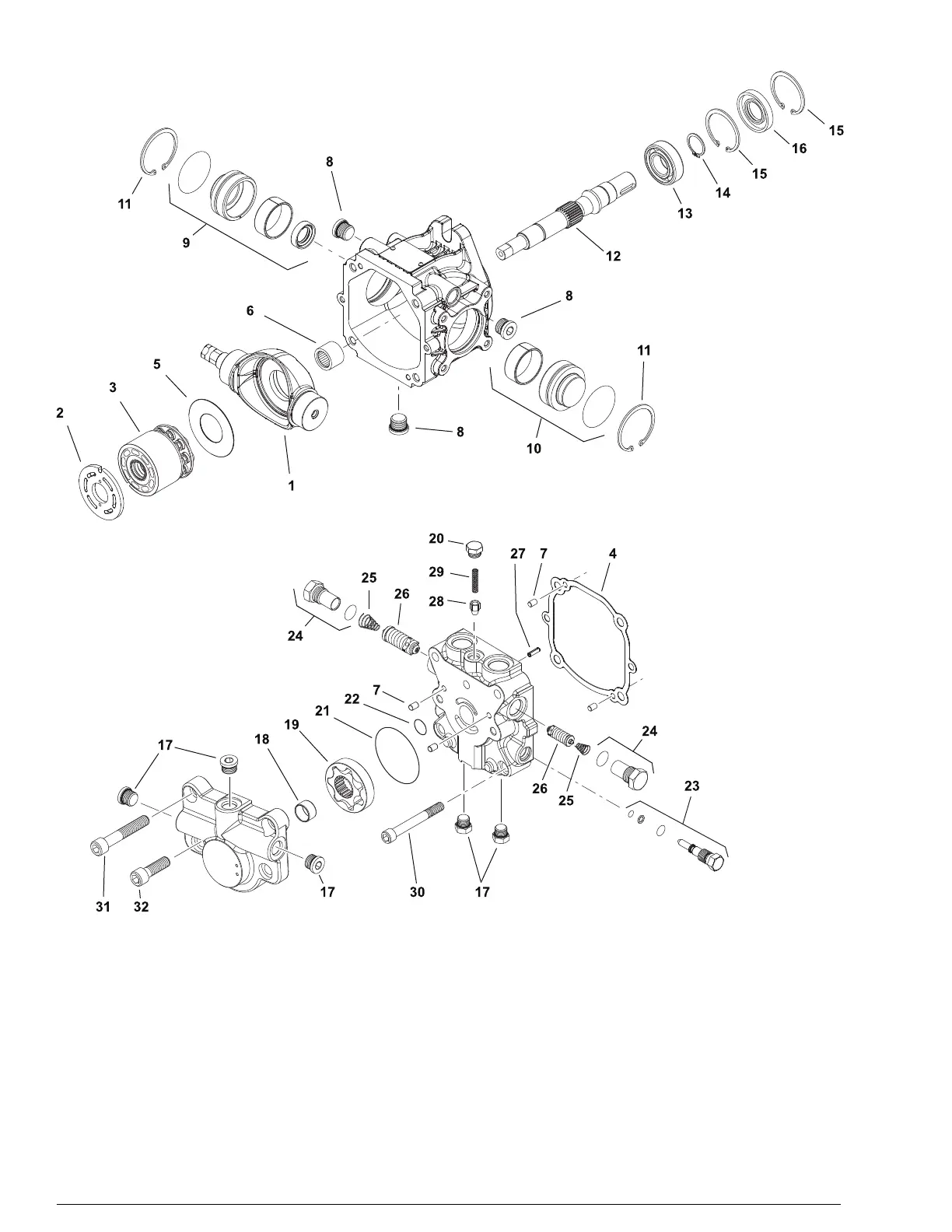

ServicingthePiston(traction)Pump

g350860

Figure53

1.Swashplate12.Shaft-Drive

23.BypassValveAsm

2.Plate-ValveCCW

13.Bearing-Ball

24.PlugAsm(2each)

3.CylinderBlockKit

14.Ring-Retaining

25.Spring(2each)

4.Gasket-Cap,End15.Ring-Retaining(2each)26.ReliefValve(2each)

5.Plate-Thrust

16.Seal-Lip,Shaft27.Pin-Slotted

6.Bearing-Needle

17.PlugAsm(5each)28.Cone-Valve,Relief

7.Pin(4each)

18.Bearing-Journal

29.Spring

8.Plug(3each)19.GerotorAsm30.Capscrew(2each)

9.JournalBearingCarrierAsm

20.PlugAsm

31.Capscrew(2each)

10.JournalBearingCarrierAsm21.O-Ring32.Capscrew(2each)

11.Ring-Retaining(2each)22.O-Ring

HydraulicSystem:ServiceandRepairs

Page5–74

SandPro

3040and5040

20251SLRevA
