ServicingtheWheelMotors

g350211

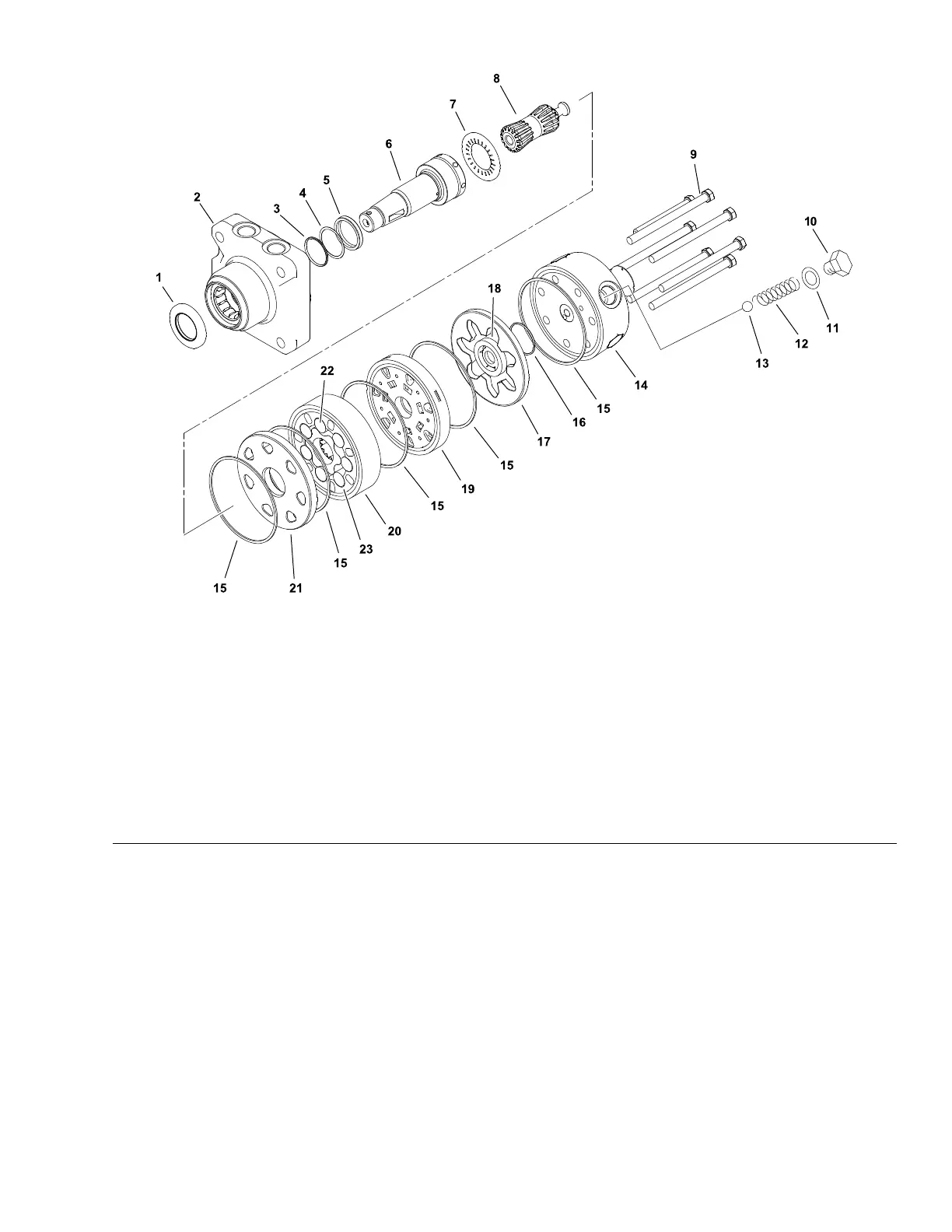

Figure56

(FrontWheelMotorShown)

1.Dirtandwaterseal

9.Capscrew(7each)17.Commutatorring

2.Housing10.Plug

18.Commutator

3.Back-upwasher

11.O-Ring19.Manifold

4.Back-upring

12.Spring20.Stator

5.Shaftseal

13.Ball21.Wearplate

6.Couplingshaft

14.Endcover22.Rotor

7.Thrustbearing

15.Bodyseal(5each)23.Vane(7each)

8.Drivelink

16.Commutatorseal

ThewheelmotorsusedontheSandPromachineshavethesamebasic

construction.Themotorsdohoweverhaveinternaldifferencesthatmakethem

uniquetotheirlocationonthemachine(front,leftrear,andrightrear).

Thefrontwheelmotorhasa280cc(17.1cuinch)perrevolutiondisplacement

androtatesintheclockwisedirectionforforwardoperation.Thefrontmotoris

alsoequippedwithacheckvalvethatallowsthemotortooverrunduringtight

turnsinforwardoperationandby-passesowinreverseoperation.

Therightandleftrearwheelmotorshavea141cc(8.6cuinch)perrevolution

displacementbuthavedifferentrotationforforwardoperation.Therightrear

motorhasaclockwisedrivedirectionforforwardoperationandtheleftrear

motorhasacounter-clockwisedirectionforforwardoperation.Additionally,the

leftrearmotorhasahotoilshuttlevalvetobleedoffasmallamountofhydraulic

uidforcoolingtheclosedlooptractioncircuit.

SandPro

3040and5040

Page5–81

HydraulicSystem:ServiceandRepairs

20251SLRevA
