4.Installthebatteryinthemachineandconnect
thebatterycables;refertoInstallingtheBattery
(page44).
Note:Donotrunthemachinewiththebattery
disconnected;electricaldamagemayoccur.

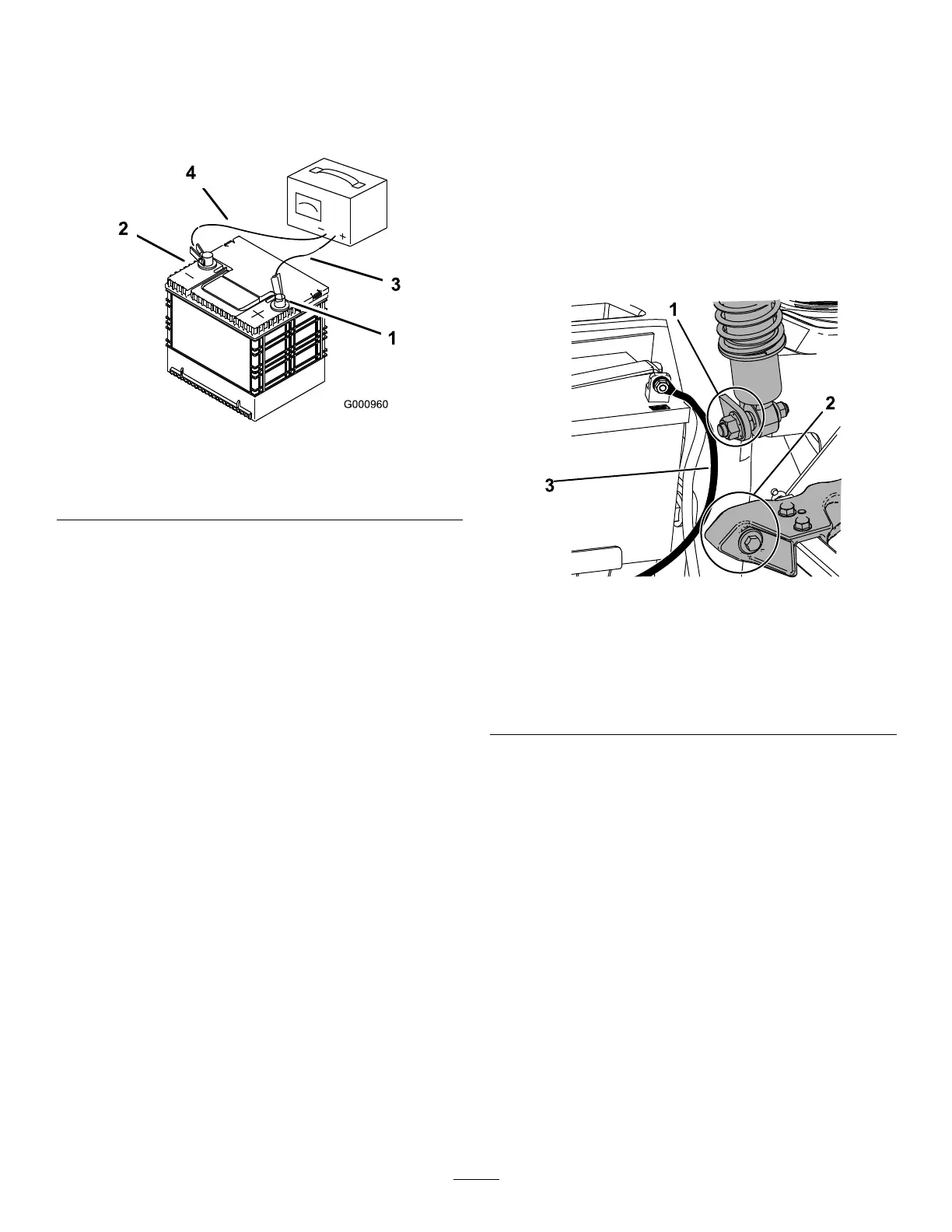

g000960
Figure51
1.Positive(+)batterypost3.Red(+)chargerlead
2.Negative(–)batterypost4.Black(–)chargerlead
InstallingtheBattery
1.Positionthebatteryinthetraywiththeterminal
postsoppositefromthehydraulictank(Figure
50).
2.Installthepositive(red)batterycabletothe
positive(+)batteryterminal.
3.Installthenegative(black)batterycableand
groundwiretothenegative(-)batteryterminal.
Note:ForMyRidemachines,ensurethatthe
groundcabledoesnotrubagainstthetrailing
armorlowershockmount(Figure53).
g236732
Figure52
1.Ensurethattheground
cabledoesnotrubagainst
thelowershockmount.
3.Groundcable
2.Ensurethattheground
cabledoesnotrubagainst
thetrailingarm.
4.Securethecableswith2bolts,2washers,and
2locknuts(Figure50).
5.Slidetheredterminalbootontothepositive(+)
batteryterminal.
6.Securethebatterywiththerubberstrap(Figure
50).
44
