Toro 2000 Series User Manual

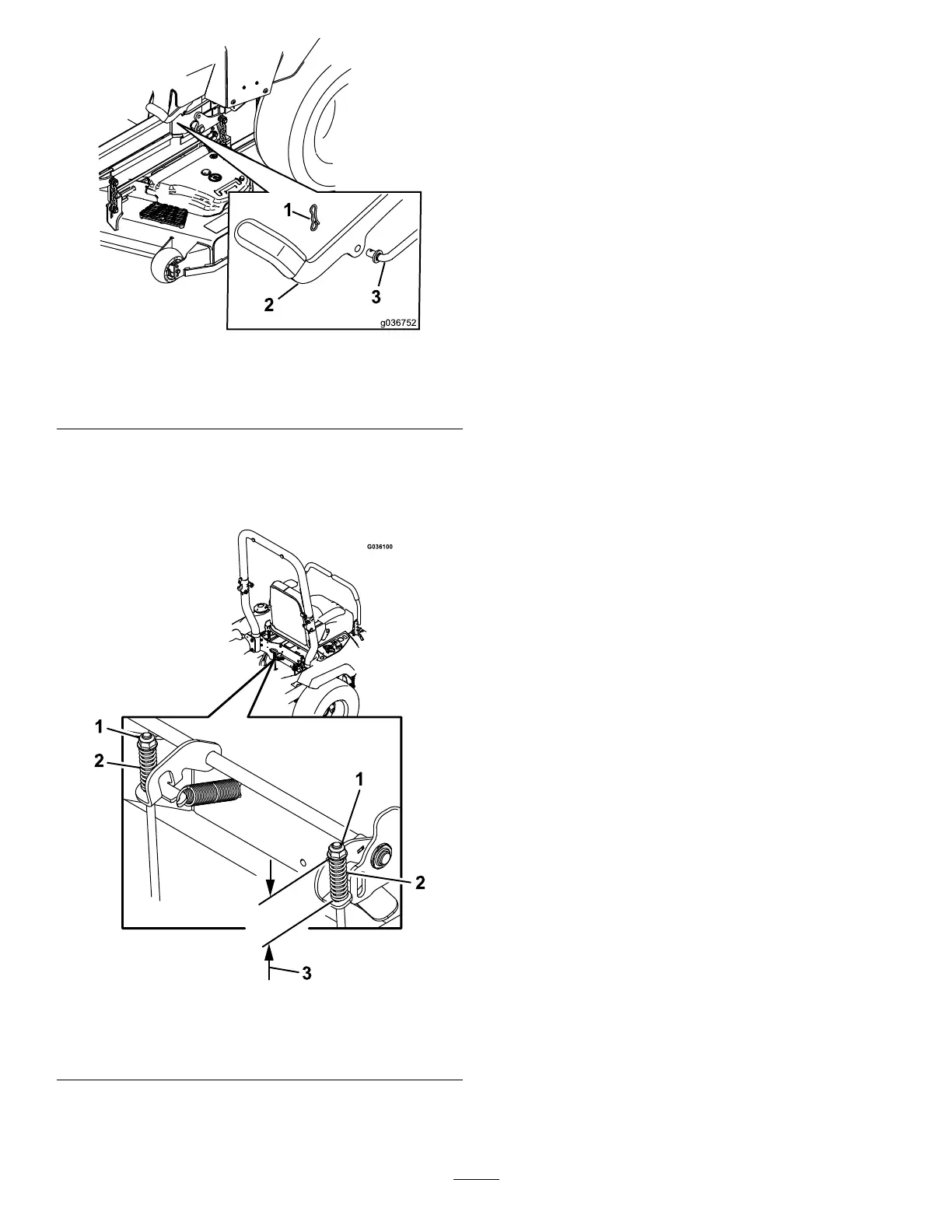

g036752
Figure58
1.Cotterpin3.Brakelinkageshaft
2.Parkingbrake
7.CheckbothspringlengthsasshowninFigure
59.Ifanadjustmentisnecessary,turnthe
topnutclockwisetoshortenthespringand
counterclockwisetolengthenit.
g036100
Figure59
1.Topnut
3.44mm(1-3/4inches)
2.Spring
8.Pushtheparkingbrakeleverallthewayforward
anddown.
9.Rotatethebrake-linkageshaftuntiltheend
alignswiththeholeinthelever.
•Shortenthelinkagebyturningitclockwise.
•Lengthenthelinkagebyturningit
counterclockwise.
10.Insertthebrake-linkageshaftintothe
parking-brakeholeandsecurewiththecotter
pin.Repeatstep5andadjustifnecessary.
11.Whenadjustmentiscomplete,removethejack
standsorequivalentsupportandlowerthe
machine.
12.PlacethemachineintotheOPERATINGposition.
RefertoUsingtheDrive-WheelReleaseValves
(page30).
48

Toro 2000 Series Specifications

General

Deck Material	Steel
Power Source	Gasoline
Engine Type	4-Cycle
Drive System	Rear-Wheel Drive
Speed Settings	Variable
Engine	Briggs & Stratton
Warranty	2 years limited
