39
ADJUSTING EMERGENCY/PARK
BRAKE (Fig. 36)
Adjust the service brakes when there is more than
one inch of "free travel" of the brake pedal, or when
the brakes do not work effectively. Free travel is
the distance the brake pedal moves before braking
resistance is felt.
To reduce free travel of brake pedal:
1. Loosen front nuts on threaded end of brake
cables.
2. Tighten rear nuts to move cable backward
until the pedal has 1/2 to 1 inch of free travel.
3. Tighten front nuts after brake is adjusted
correctly.
NOTE: Both brake cables must be adjusted
simultaneously so that the brake equalizer is
straight after adjustment is made.
BRAKE MAINTENANCE

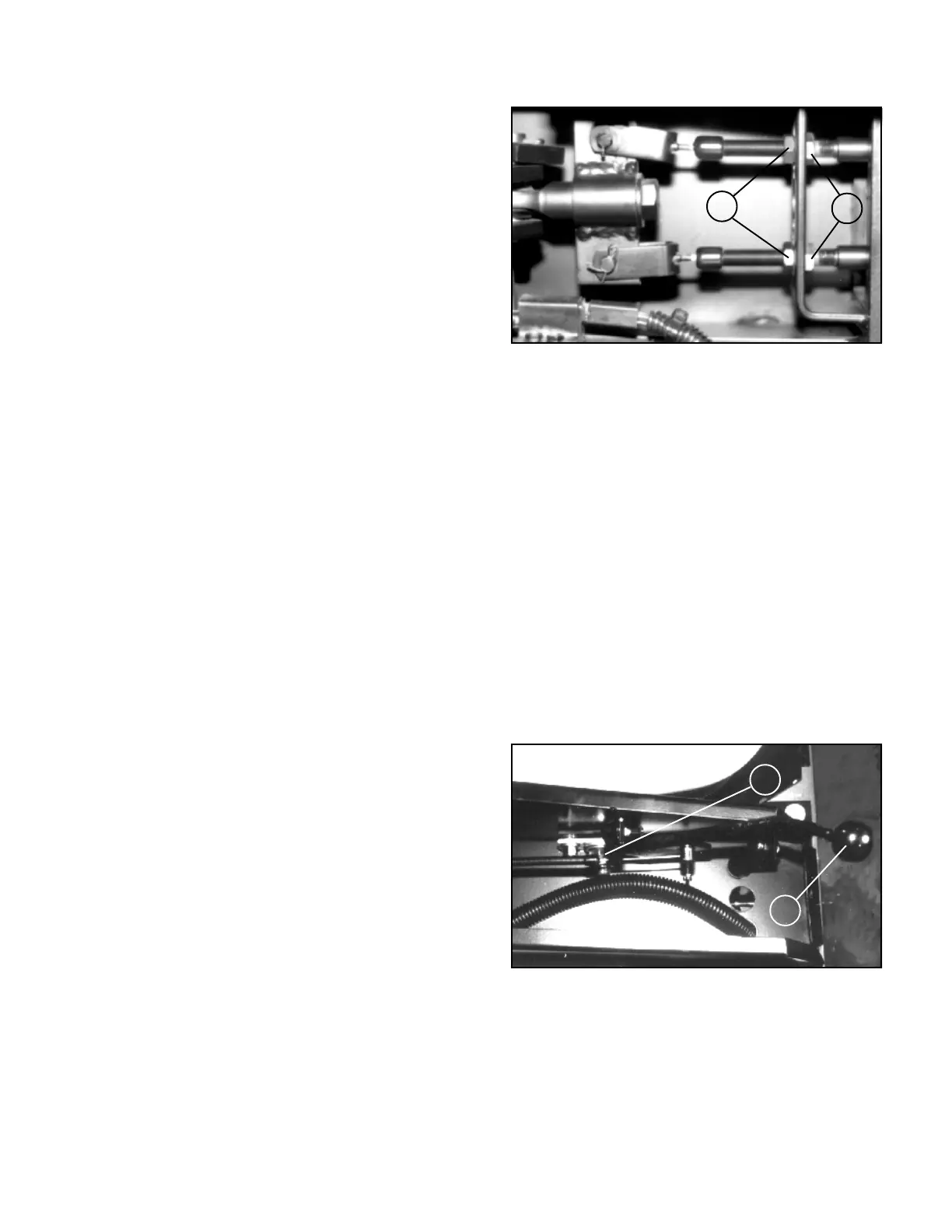

Figure 36
1. Front Nuts 2. Rear Nuts
ADJUSTING THROTTLE LEVER
TENSION (Fig. 37)
If the Throttle Lever has a tendency to creep away
from the "FAST" setting, the Throttle Pivot lock nut
may need to be tightened:
1. Position vehicle on a level surface, stop
vehicle, engage parking brake (lock), turn engine
off, and remove key.
2. Remove the Throttle Lever knob and Console
Cover.
3. Tighten Throttle Pivot lock nut.
4. Replace console cover and Throttle Lever
knob. NOTE: Be sure to return the Throttle Lever
to the "Slow" or starting position prior to starting
engine.
Figure 37
1. Throttle Handle 2. Pivot Lock Nut
THROTTLE LEVER TENSION
