40
AXLE MAINTENANCE

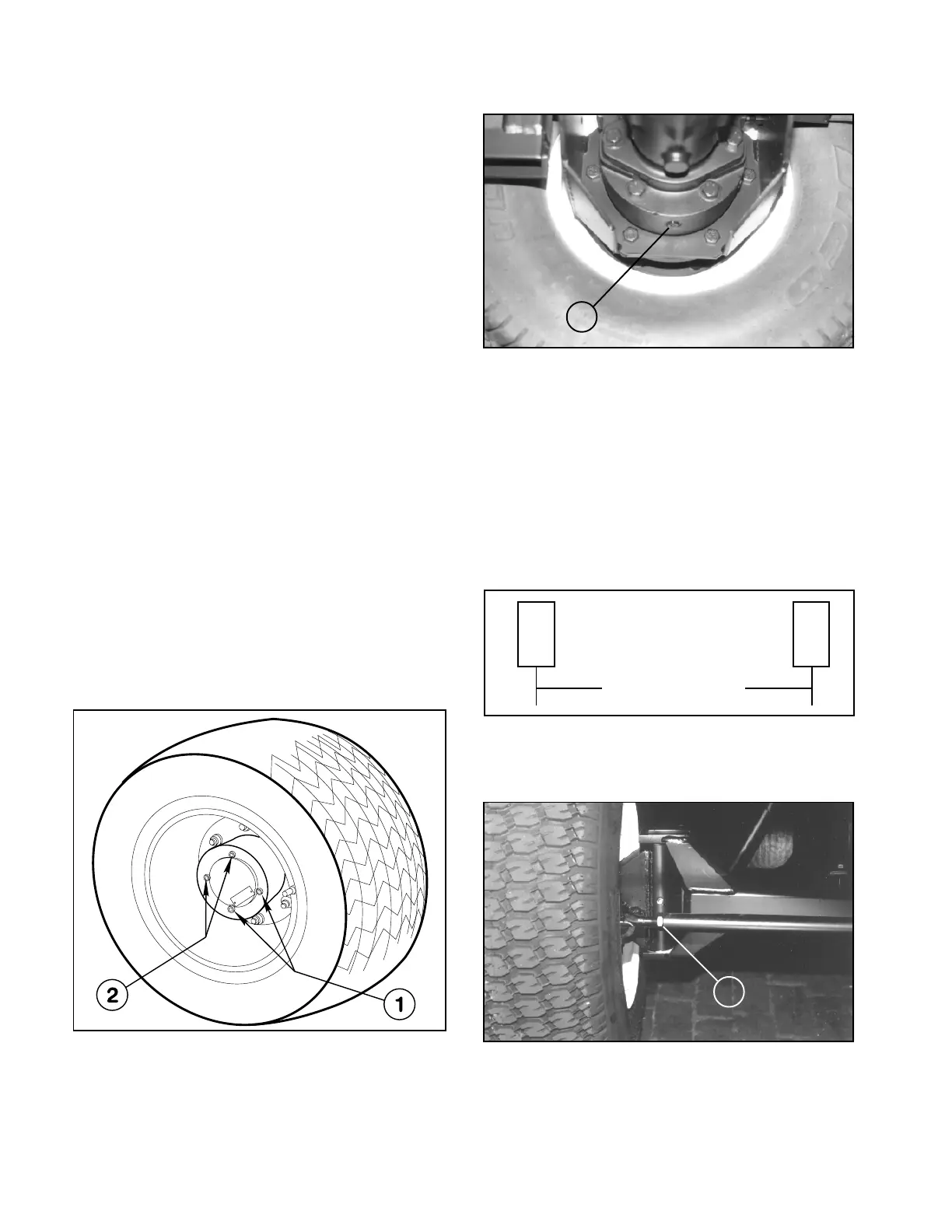

CHANGING PLANETARY GEAR
DRIVE OIL (Fig. 38,39)
Change oil initially after 200 hours operation and
every 800 hours or yearly. Check oil level if external
leakage is noted. (Refer to "Before Operating"
page 19.) Use high quality SAE 85W-140 wt. gear
lube replacement.
Capacity of each hub is 16 oz.
1. With machine on level surface, position wheel
so the check/drain plugs are at the 3 and 6 o'clock
positions. (Fig. 38 position 1.)
2. Remove both plugs. Allow oil to drain from
the bottom hole into a pan.
3. Remove drain plug from bottom of hub on
other side of wheel and allow oil to drain into pan.
(Fig. 39)
4. When Gear Drive is completely drained,
reinstall plug on bottom of hub and position wheel
so holes are at 9 and 12 o'clock position. (Fig. 38
position 2.)
5. Add gear oil to the 12 o'clock positioned hole.
Fill until the 9 o'clock hole begins to overflow.
6. Reinstall the Check/Drain plugs.
7. Repeat steps 1 thru 6 on opposite gear
assembly.
Figure 39
1. Check/Drain Plug
FRONT WHEEL TOE-IN (Fig. 40,41)
After every 600 operating hours or annually, check
front wheel toe-in.
1. Measure center-to-center distance (at axle
height) at front and rear of steering tires. Front
measurement must be 1/8 to 1/4 inch less than
rear measurement. (Fig. 40)
Figure 40
Center-to-center
Distance
2. To adjust, loosen jam nuts at both ends of the
tie rod. (Fig. 41)
1. Tie Rod (one nut on each end)
Figure 41
3. Rotate tie rod to move front of tire inward or
outward.
4. Tighten tie rod jam nuts when adjustment is
correct.
Figure 38
1. Position of Plugs 2. Position of Plugs
for draining oil. for filling with oil.
1153
