46
CONTROLS AND OPERATION:

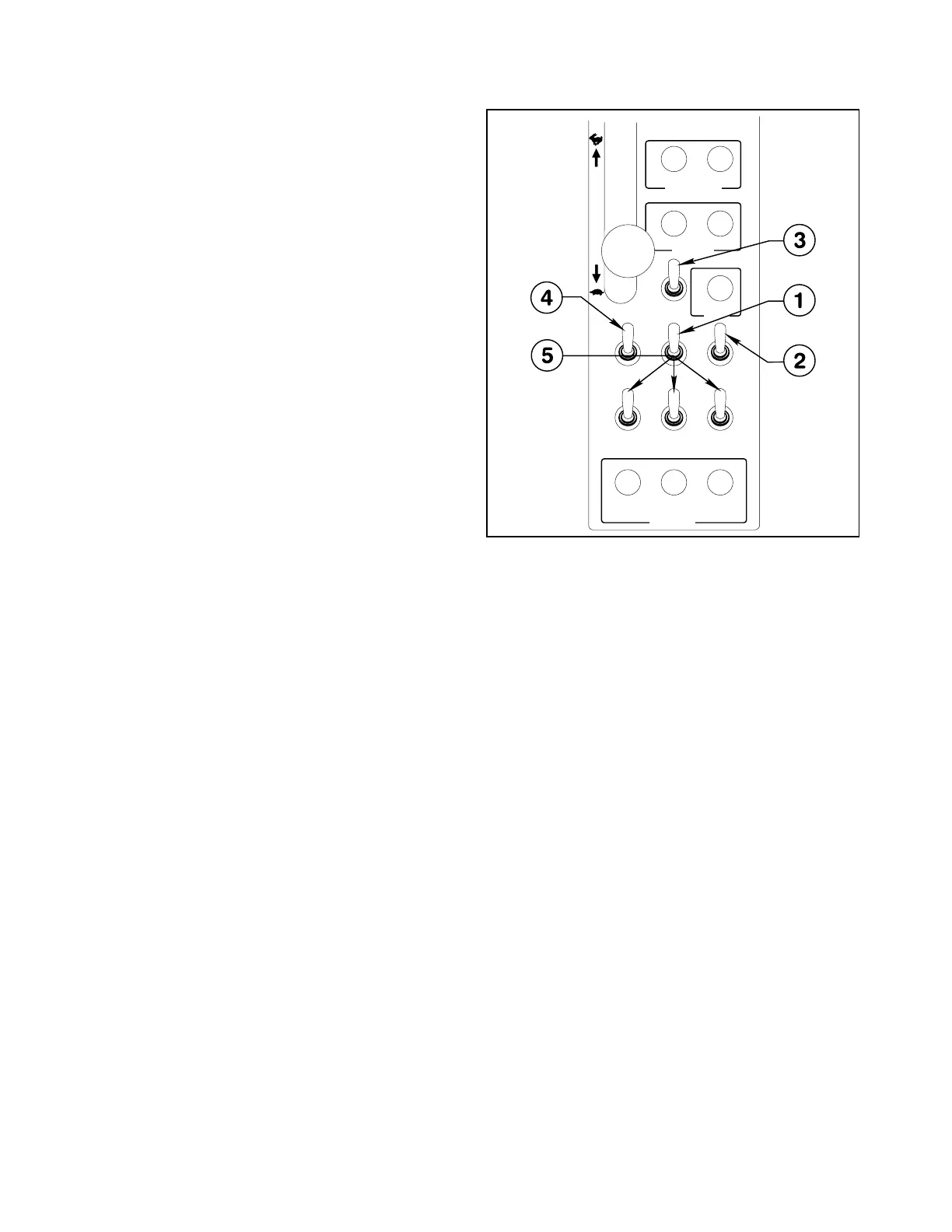

CONSOLE (Fig. 44)
1. SPRAY PUMP CONTROL SWITCH: Move to
"ON" position to engage the Spray Pump. Move
to "OFF" position to disengage Spray Pump.
2. JET AGITATOR SWITCH: Activates or stops
the agitation of spray solution in the Tank.
3. PRESSURE ADJUST SWITCH: Hold to
INCREASE or DECREASE spraying pressure to
desired level.
4. MASTER ON/OFF SWITCH: Activates all
three Boom Valves to control the flow of spray
solution to the Boom Sections.
5. INDIVIDUAL BOOM ON/OFF SWITCHES:
Allows individual selection of Boom sections and
controls the flow of spray solution to left, center,
and right Booms.
REMOTE MASTER ON/OFF SWITCH (ON
FLOORBOARD): Is in series with the Master Boom
ON/OFF switch; The operator must first turn on
the Master Boom ON/OFF switch on the center
console; then click on the Remote Boom ON/OFF
Switch on the floor board.
BOOM INDICATOR LIGHTS (ON DASH): When
lit, indicate which Boom Section(s) is on. See Page
21.
Figure 44
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
UP UP
RAISE
AUTO
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
DOWN DOWN
LOWER
MAN
OFF
L
L
R
R
PRESSURE
(DUMP BED)
OFF
(SET)
MASTER
BOOM
AGITATOR
CHEM 1
PUMP
RINSE
PUMP
AGITATOR
AGITATOR
CHEM 2
T
H
R
O
T
T
L
E
BOOM 1 BOOM 2 BOOM 3
InJector Pro™
FOAM MARKER
BOOM LIFT
SONIC
BOOM
94-7134
1157
