Toro 44547 - Maintenance; Lubrication; Checking the Gear Box Lubrication

Maintenance
Lubrication
ServiceInterval:Every50hours
Thedebrisblowerhasbearingsandbushingsthatmust
belubricatedregularly.Ifthemachineisoperatedunder
normalconditions,lubricatebearingswithNo.2general
purposelithiumbasegreaseafterevery50hoursofoperation.
Lubricatettingsimmediatelyaftereverywashing,regardless
oftheintervallisted.

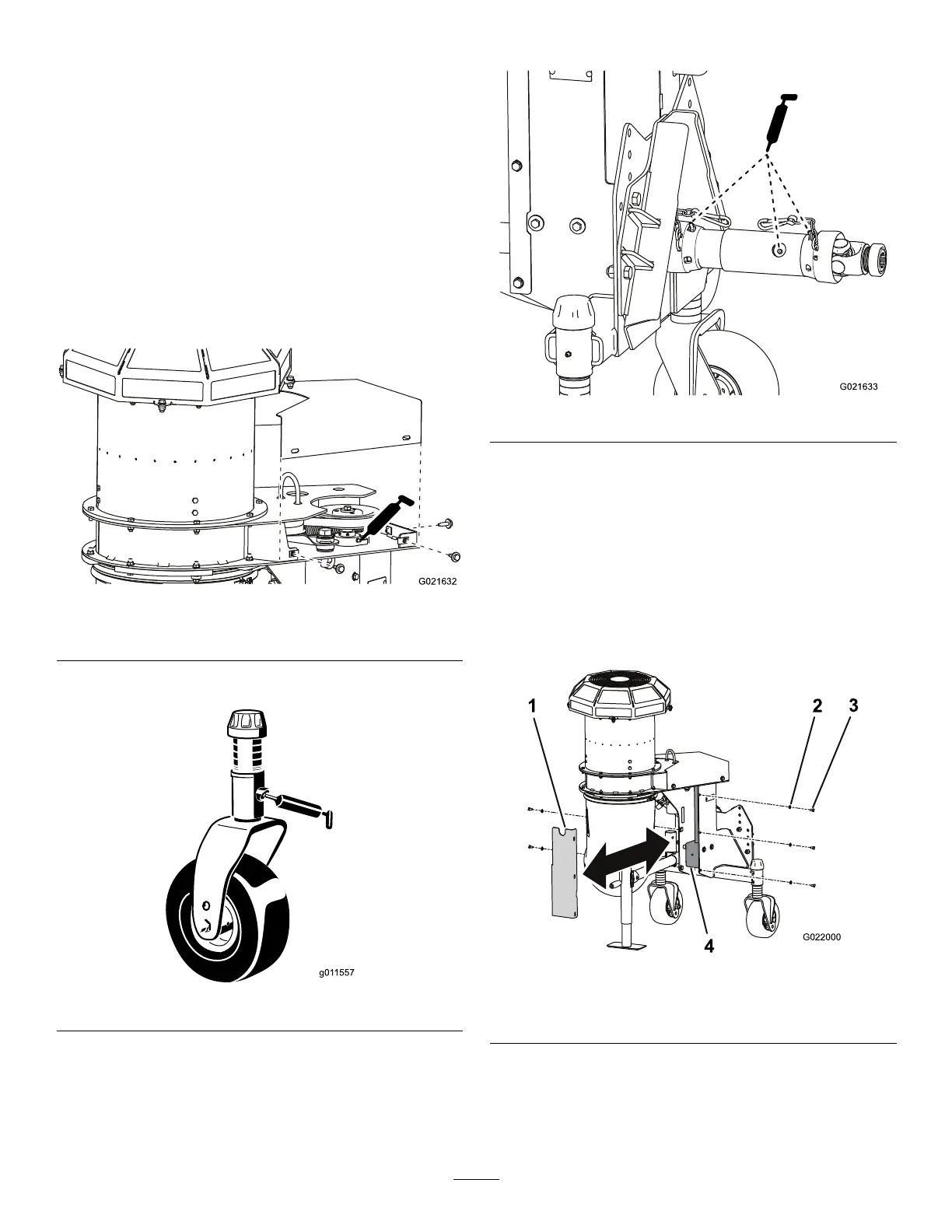

Thelubricationpointsareasfollows:
Drivepulley(
Figure21)
G021632
Figure21
Shownwithcoverremoved
Castorwheelshaft(2)(Figure22)
Figure22
Driveshaft(Figure23)
G021633
Figure23
CheckingtheGearBox
Lubrication
ServiceInterval:Every50hours
1.Positionthemachineandbloweronalevelsurfaceand
lowertheblower.
2.Removethe(5)screwsandwasherssecuringthegear
casecovertotheblower(Figure24).
1 2
3
4
G022000
Figure24
1.Cover3.Screw
2.Washer
4.Gearbox
3.Removethecovertoexposetheblowergearcase
(Figure24).
4.Removethecheck/llplugfromthesideofthegear
box(
Figure25).
