Toro 44547 - Removing the Blower from the Crate

1
RemovingtheBlowerfromthe
Crate
NoPartsRequired
Procedure
UsetheinstructionsinProcedure1tosimplifytheremoval
oftheblowerfromthecrate.
Important:Beforetheblowerframeisunboltedfrom
theshippingcrateorthecrateisremoved,makesureto
installthejackstandtohelpstabilizetheblower.
1.Removethetopofthecrate(Figure3).
1
2
3
4
G021672

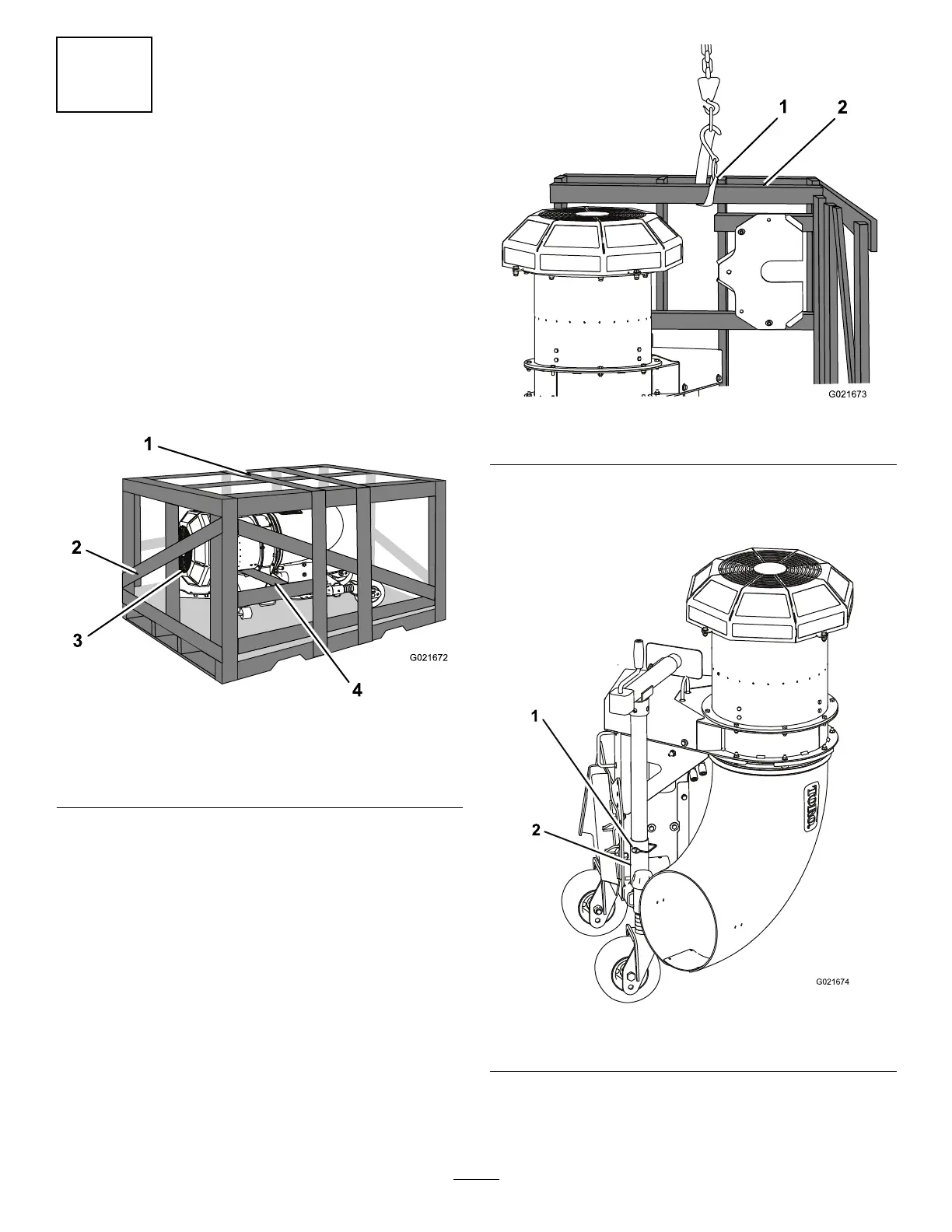

Figure3
1.Topofcrate3.Topofmachine
2.Endofcrate
4.Boardunderblower
housing
2.Removetheendofthecratewhichistowardthetop
ofthemachine(Figure3).
3.Removetheboardthatisundertheblowerhousing
(Figure3).
4.Secureastraptothetopend,2x4,deckboardand
liftthepalletuntilthecrateandblowerisstandingup
vertically(Figure4).
G021673
1
2
Figure4
1.Liftstrap
2.Topend,2x4,deckboard
5.Removethesnapperpinsecuringthejackstandtubeto
thestoragetube(Figure5).Removethejackassembly
fromthestorageposition.
G021674
1
2
Figure5
1.Snapperpin
2.Jackstandtube
6.Removethestrapfromthepalletandattachittothe
liftloopontheblower(Figure6).Liftthebloweruntil
thestrapistight.
