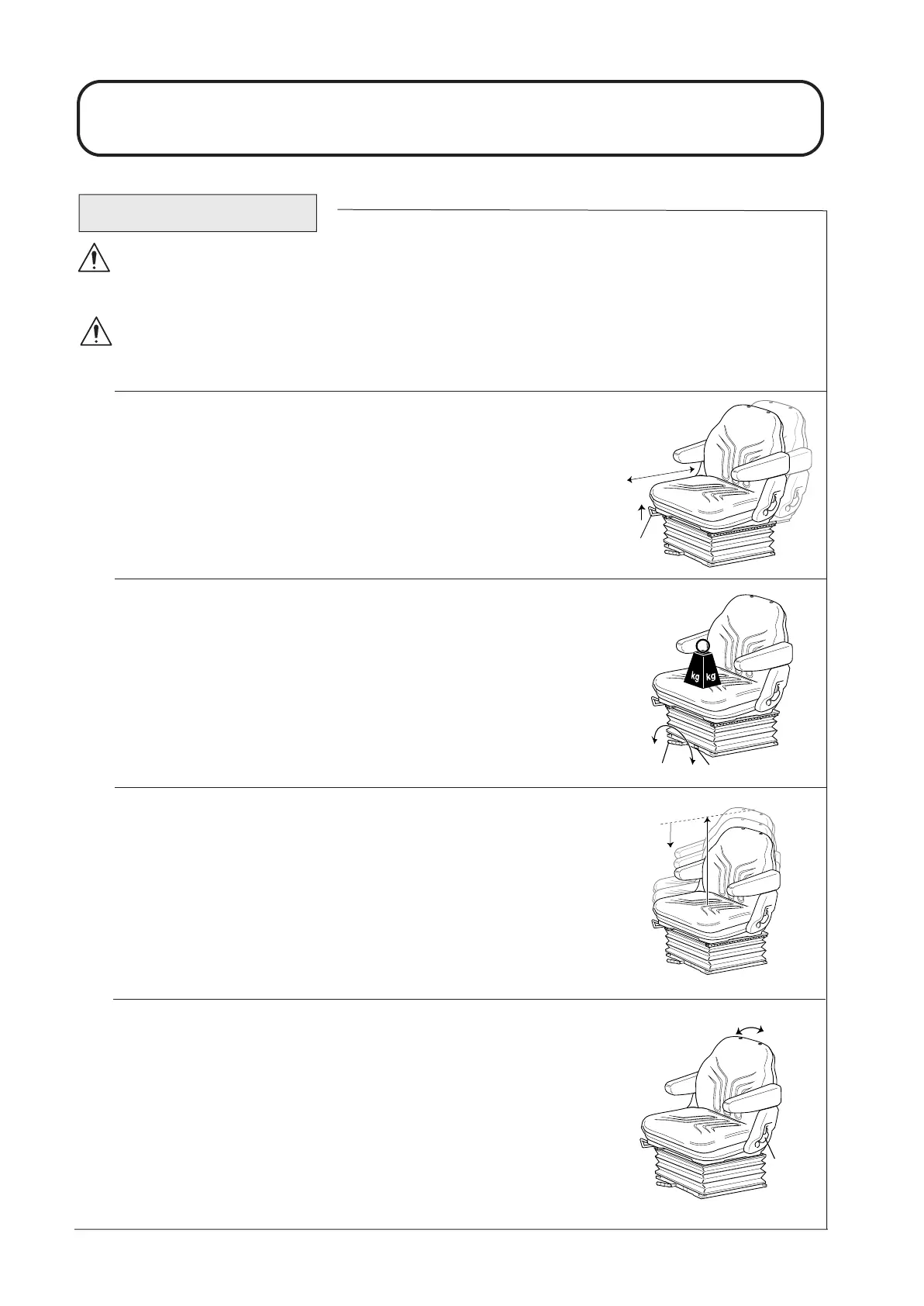

OPERATING THE MOWER
WARNING: PREVENT ACCIDENTS - Never operate the mower without first checking that the
operator seat mechanisms are in good working order and that, once adjusted and locked, the seat
remains securely in position.
WARNING: PREVENT ACCIDENTS - Adjustment of the seat mechanisms should only be carried
out when the mower is at a standstill with the parking brake engaged.
Fore/Aft Adjustment: Move lever ‘B’ upwards to adjust the Fore/Aft posi-
tion of the seat. Release the lever to lock the seat in position.
Operator weight adjustment: Rotate handle ‘C’ clockwise as shown to
increase suspension stiffness and counter-clockwise to decrease. Dial ‘D’
indicates when the optimum suspension adjustment has been set according
to operator weight (kg).
Height adjustment: Manually lift the seat for incremental height adjustment.
To lower lift the seat to beyond its highest setting, then allow it to drop to the
lowest setting.
Backrest adjustment: Pull handle ‘E’ outwards to adjust the seat backrest
angle. Release the handle to lock the seat backrest in position.
OPERATOR SEAT
1.31
1.31
