A
F
1.44
1.44

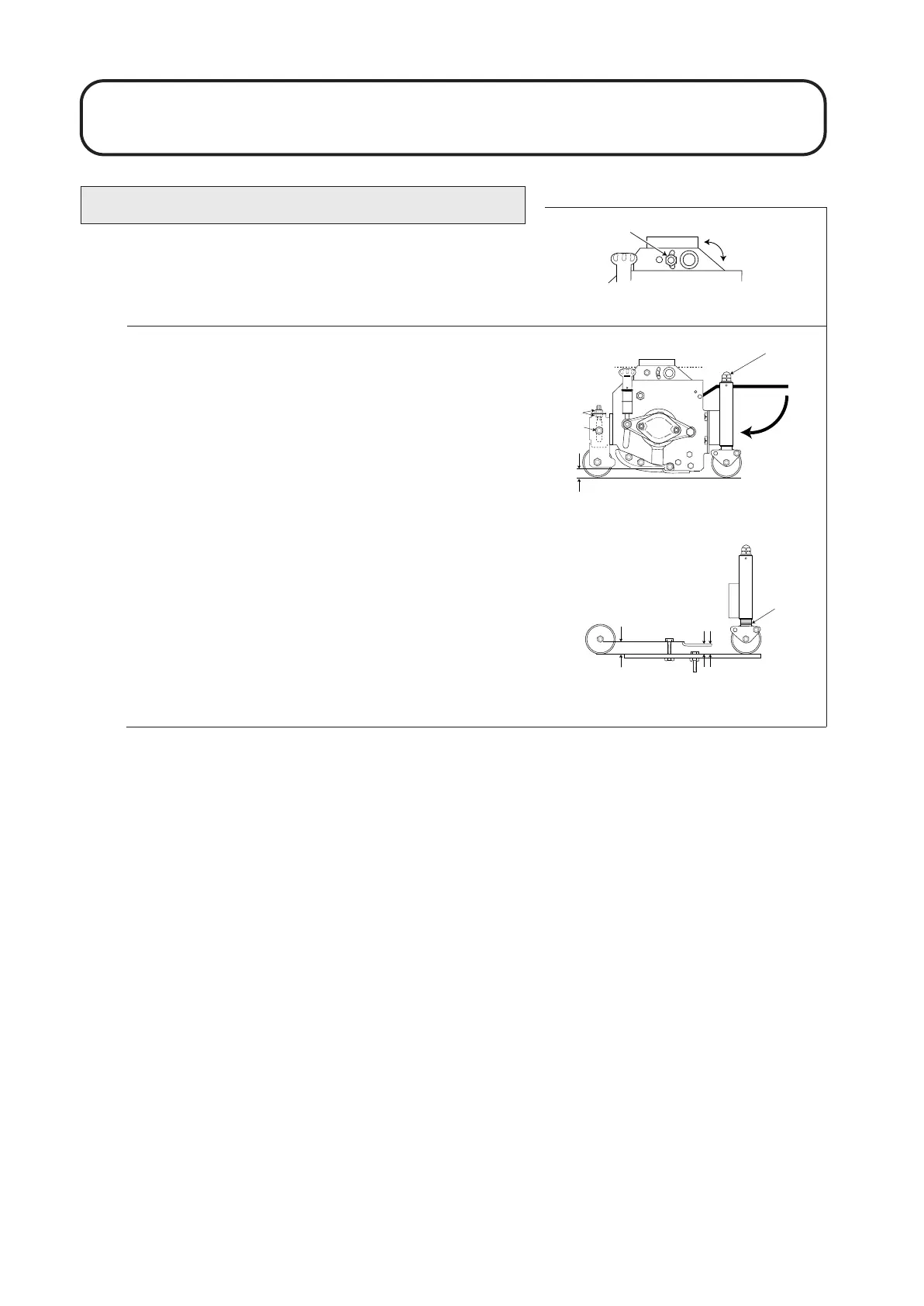

Pivot knuckle fixing: Secure the bolt in the rear “floating” slot posi-
tion ‘A’ as shown.
Height of cut adjustment: The height of cut is gauged by the position
of the front and rear rollers.
To alter the rear roller position, turn the adjusting nut assembly ‘B’ both
ends clockwise to decrease height of cut ‘E’ or anti-clockwise to
increase height of cut ‘E’.
IMPORTANT: PREVENT DAMAGE - Do not attempt to unlock
the nut assemblies, ‘B’.
To alter the front roller position loosen bolts ‘F’. Release and turn
adjusting nuts ‘D’ both ends clockwise to increase the height of cut or
anti-clockwise to decrease the height of cut.
Ensure that all cutterheads are set at the same height of cut by referring
to the indicator rings ‘C’ or use the height of cut gauge across the full
width of each cutterhead as shown.
Tighten nuts ‘D’ and ‘F’ both ends.
