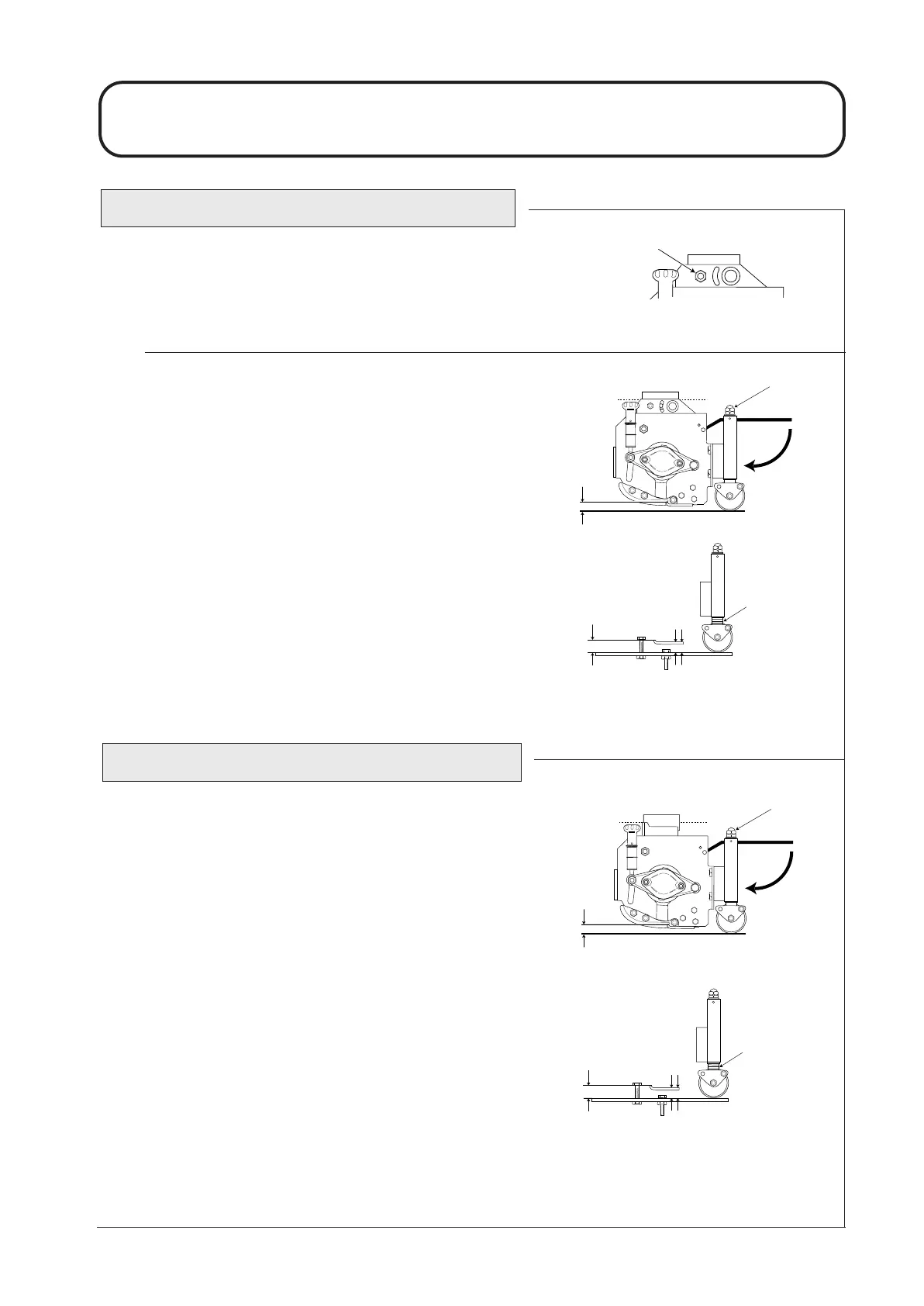

Pivot knuckle fixing: Secure the bolt in the front “fixed” hole
position ‘A’ as shown.
Height of cut adjustment: The height of cut is gauged by the
position of the rear roller.
Turn the adjusting nut assembly ‘B’ both ends clockwise to
decrease height of cut ‘E’ or anti-clockwise to increase height of
cut ‘E’.
IMPORTANT: PREVENT DAMAGE - Do not attempt to
unlock the nut assemblies, ‘B’.
Ensure that all cutterheads are set at the same height of cut by
either referring to the indicator rings ‘C’ or by using a height of
cut gauge across the full width of each cutterhead for greater
accuracy as shown.
MK3 254mm (10") FIXED CUTTERHEAD
Height of cut adjustment: The height of cut is gauged by the
position of the rear roller.
Turn the adjusting nut assembly ‘B’ both ends clockwise to
decrease height of cut ‘E’ or anti-clockwise to increase height of
cut ‘E’.
IMPORTANT: PREVENT DAMAGE - Do not attempt to
unlock the nut assemblies ‘B’.
Ensure that all cutterheads are set at the same height of cut by
either referring to the indicator rings ‘C’ or by using a height of
cut gauge across the full width of each cutterhead for greater
accuracy as shown.
