AdjustingtheHeightofCut
UsingtheTransportLock
Thetransportlockhas2positions,andisusedwith
thedeck-liftpedal.ThereisaLOCKpositionand
anUNLOCKpositionforthetransportpositionofthe
mowerdeck(Figure30).
g229103

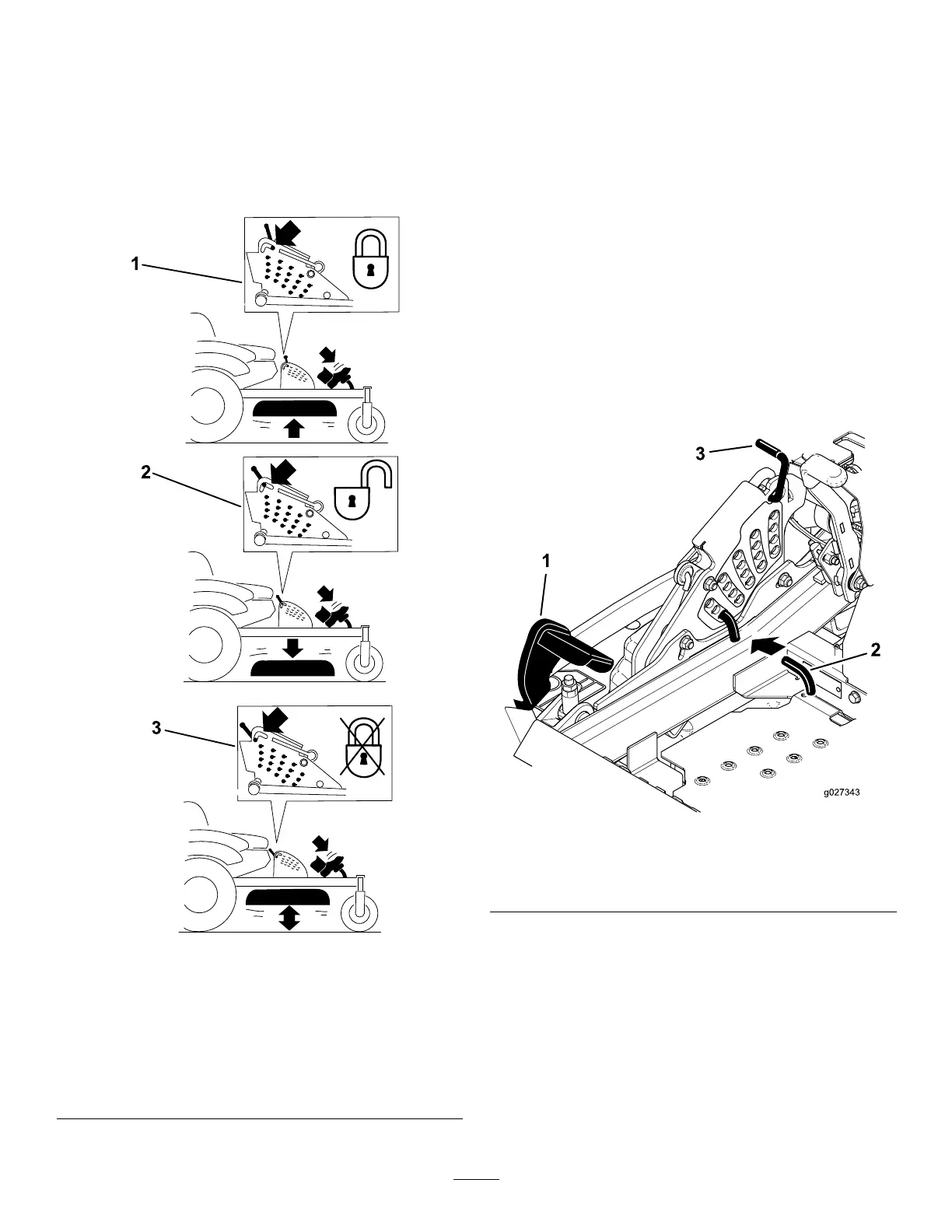

Figure30
Transport-LockPositions
1.Transportlockknob3.UNLOCKposition—The
mowerdeckdoesnotlock
intothetransportposition.
2.LOCKposition—The
mowerdecklocksintothe
transportposition.
AdjustingtheHeight-of-CutPin
Theheight-of-cutisadjustedfrom25to140mm(1
to5-1/2inches)in6mm(1/4inch)incrementsby
relocatingtheclevispinintodifferentholelocations.
1.Movethetransportlocktothelockposition.
2.Pushonthedeck-liftpedalwithyourfoot,and
raisethemowerdecktothetransportposition
(alsothe140mm(5-1/2inches)cuttingheight
position)asshowninFigure31.
3.Toadjust,rotatethepin90degreesandremove
thepinfromtheheight-of-cutbracket(Figure
31).
4.Selectaholeintheheight-of-cutbracket
correspondingtotheheight-of-cutdesired,and
insertthepin(Figure31).
5.Pushonthedecklift,pullbackonthetransport
lock,andslowlylowerthemowerdeck.
g027343
Figure31
1.Deck-liftpedal
3.Transportlock
2.Cut-of-heightpin
