g015373
1 2 3
2

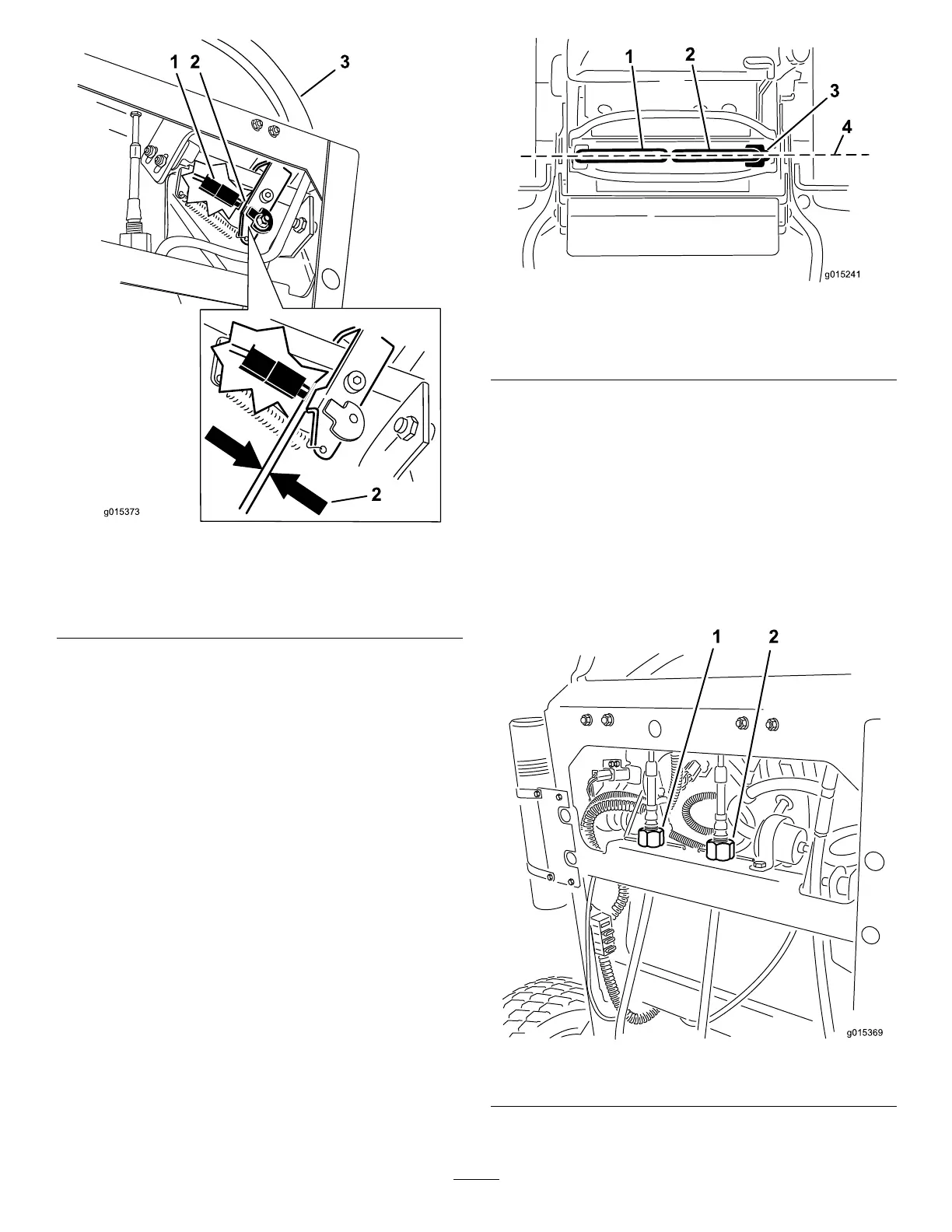

Figure71
1.Switch
3.Rightmotioncontrollever
intheneutralunlocked
position
2.1/8inch(3mm)
12.Tightentheswitchscrews.
AdjustingtheNeutralPostionforthe
MotionControlLevers
Important:Ensurethetrackingofthemoweris
correctafteradjustingthemotioncontrollevers.
Adjustingthetrackingandaligningthemotion
controlleversfronttobackisthesameprocedure
(
Figure72).
Note:Adjustthehorizontalalignmentbeforethefront
tobackalignment.
Ifthemotioncontrolleversdonotalignfronttoback,
ortherightsidecontrolleverdoesnotmoveeasilyinto
theneutrallockposition,adjustmentisrequired.
1.Afterthehorizontalalignmentisnished,checkthe
fronttobackalignment(Figure72).
g015241
Figure72
1.Leftmotioncontrollever
3.Neutrallockedposition
2.Rightmotioncontrollever4.Alignthecontrollevers
fronttoback
2.Rotatetherightcableadjustmenttoplacetheright
motioncontrolleverinthecenteroftheneutrallock
slotinthecontrolpanel.
3.Rotatetheleftcableadjustmenttoplacetheleft
motioncontrolleveralignmentequalwiththe
rightmotioncontrollever.Thiswillprovidean
approximateequaltrackingoftheleftwheelspeed
totherightwheelspeed.
4.Checkforpropertracking.RefertoAdjustingthe
TrackingintheMaintenanceSection.
g015369
1 2
Figure73
1.Leftcableadjustment
2.Rightcableadjustment
49
