Controls
Becomefamiliarwithallthecontrolsbeforeyoustartthe

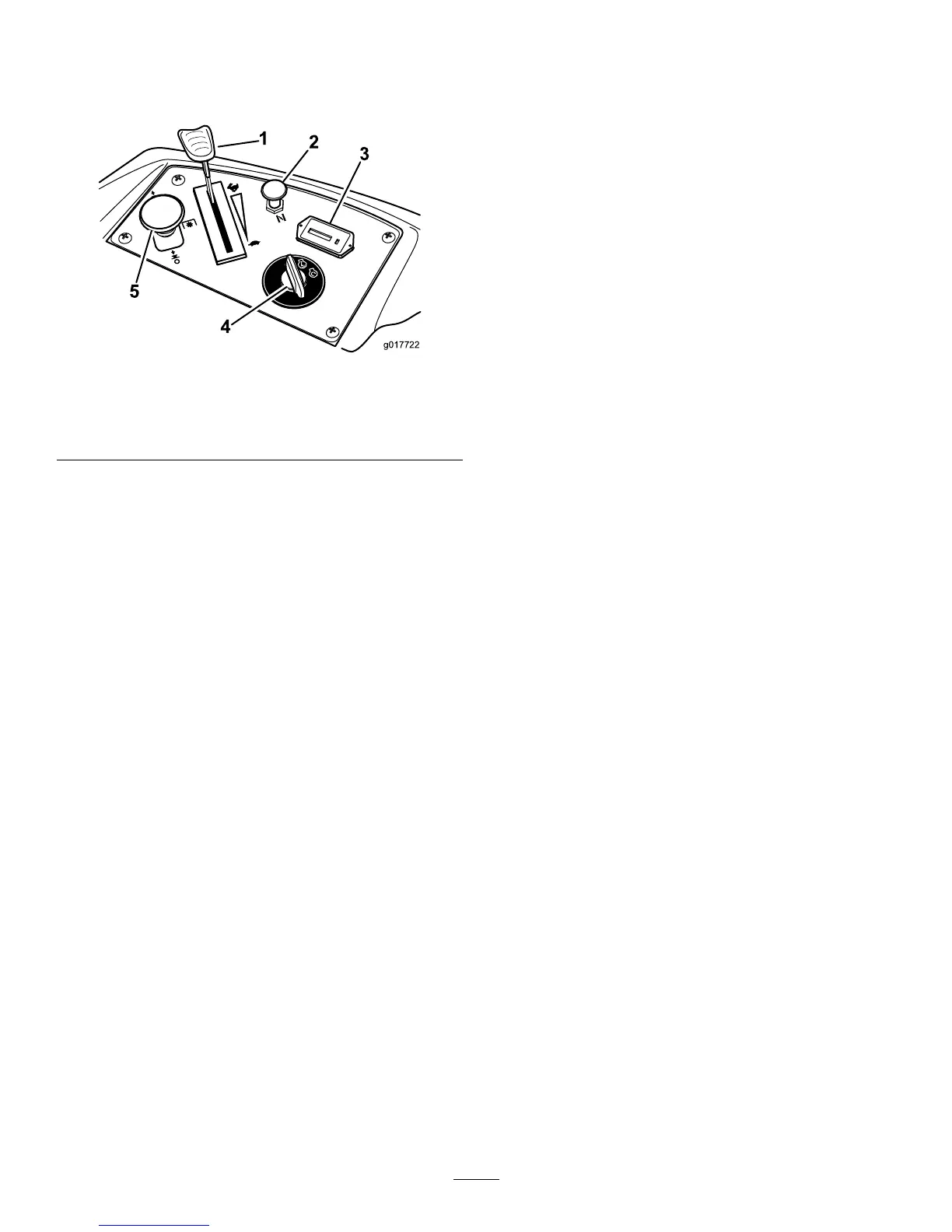

engineandoperatethemachine(Figure5).
g017722
1
2
3
4
5
Figure5
1.Throttlecontrol4.Ignitionswitch
2.Choke5.Bladecontrolswitch(PTO)
3.Hourmeter
IgnitionSwitch
Theignitionswitchhasthreepositions:Start,RunandOff.
ThekeywillturntoStartandmovebacktoRunuponrelease.
TurningthekeytotheOffpositionwillstoptheengine;
however,alwaysremovethekeywhenleavingthemachineto
preventtheenginefromaccidentallystarting(Figure5).
ThrottleControl
ThethrottlecontrolisvariablebetweenFastandSlow.
Movingthrottleleverforwardwillincreaseenginespeedand
movingthrottlelevertotherearwilldecreaseenginespeed.
Movingthethrottleforwardintothedetentisfullthrottle
(Figure5).
Choke
Usethechoketostartacoldengine.Pullthechokeknobup
toengageit.Pushdownonthechokeknobtodisengageit.
BladeControlSwitch(PowerTake-Off)
Thebladecontrolswitch,representedbyapowertake-off
(PTO)symbol,engagesanddisengagespowertothemower
blades(
Figure5).
HourMeter
Thehourmeterrecordsthenumberofhoursthebladeshave
operated.Itoperateswhenthebladecontrolswitch(PTO)is
engaged.Usethesetimesforschedulingregularmaintenance
(Figure5).
FuelGauge
Thefuelwindowlocatedbelowtheoperatorpositioncanbe
usedtoverifythelevelofgasolineinthetank(Figure7).
MotionControlLevers
Themotioncontrolleversarespeedsensitivecontrolsof
independentwheelmotors.Movingaleverforwardor
backwardturnsthewheelonthesamesideforwardorin
reverse;wheelspeedisproportionaltotheamountthelever
ismoved.Movethecontrolleversoutwardfromthecenter
totheneutrallockpositionandexitthemachine(Figure4).
Alwayspositionthemotioncontrolleversintotheneutrallock
positionwhenyoustopthemachineorleaveitunattended.
ParkingBrakeLever
Theparkingbrakeleverislocatedonleftsideoftheconsole
(Figure4).Thebrakeleverengagesaparkingbrakeonthe
drivewheels.Pulltheleverupandrearwardtoengagethe
brake.Pushtheleverforwardanddowntodisengagethe
brake.
FootPedalDeckLiftSystem
Thefootpedaldeckliftsystemallowstheoperatortolower
andraisethedeckfromtheseatedposition.Theoperatorcan
usethefootpedaltoliftthedeckbrieytoavoidobstacles
orlockthedeckinthehighestheight-of-cutortransport
position(
Figure4).
Height-of-CutLever
Theheight-of-cutleverworkswiththefootpedaltolockthe
deckinaspeciccuttingheight.Onlyadjusttheheightofcut
whilemachineisnotmoving(Figure4).
Attachments/Accessories
AselectionofToroapprovedattachmentsandaccessoriesis
availableforusewiththemachinetoenhanceandexpand
itscapabilities.ContactyourAuthorizedServiceDealeror
Distributororgotowww .Toro.comforalistofallapproved
attachmentsandaccessories.
