FuelGauge
Usethefuelwindowbelowtheoperatortoverifythelevelof
gasolinebeforellingthetank(Figure7).
G020318
1
1

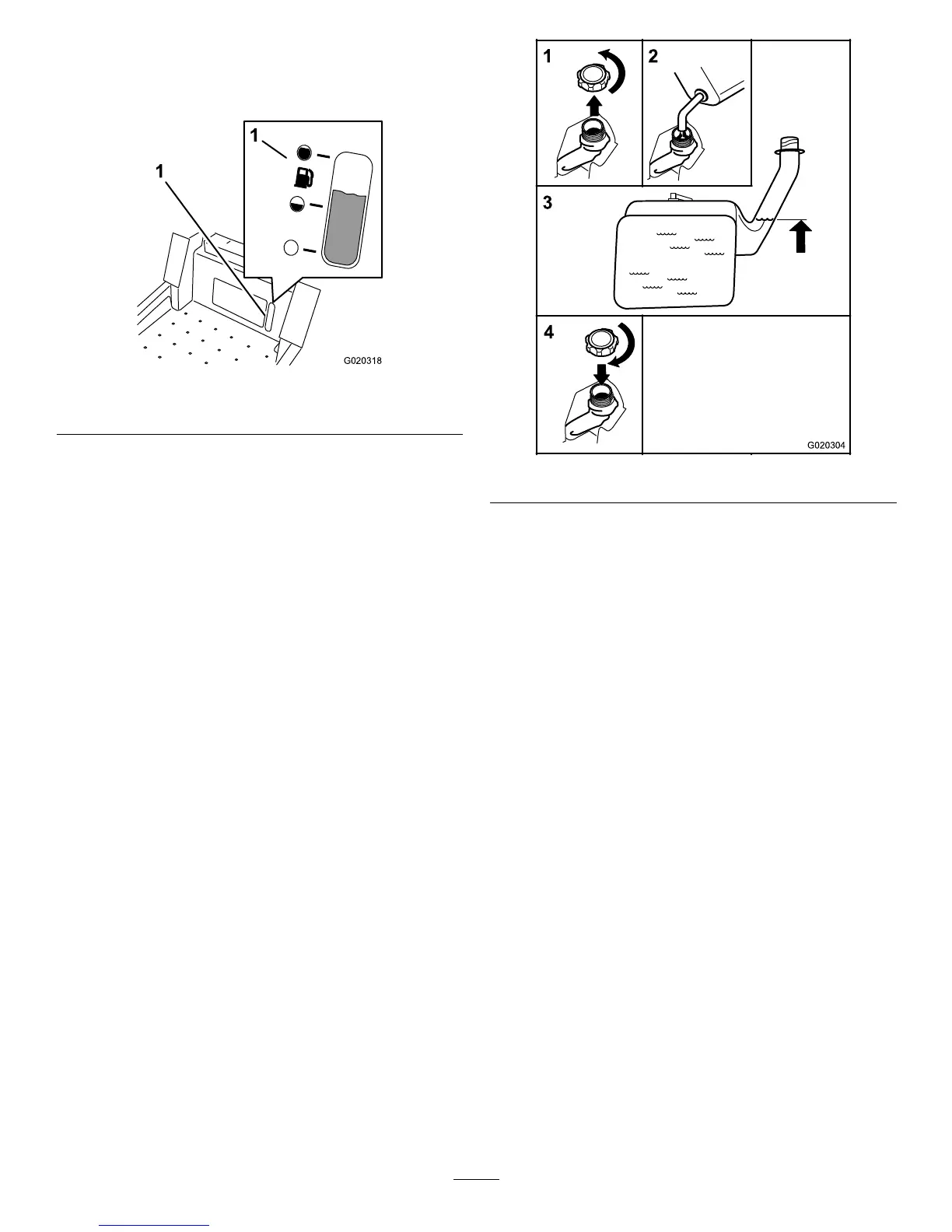

Figure7
1.Fuelgaugewindow
FillingtheFuelTank
Makesuretheengineisshutoffandthemotioncontrolsare
intheparkposition.
Important:Donotoverllfueltank.Fillthefueltank
tothebottomofthellerneck.Theemptyspaceinthe
tankallowsthefueltoexpand.Overllingmayresultin
fuelleakageordamagetotheengineoremissionsystem.
1.Cleanaroundthefueltankcapandremovethecap.
Note:Youcanusethefuelwindowbelowthe
operatingpositionverifythepresenceofgasoline
beforellingthetank(Figure7).
2.Slowlyaddregular,unleadedgasolineuntilthefuel
reachesthebaseofthellerneckFigure8.
G020304
1
2
3
4
Figure8
3.Installthefueltankcapsecurelyandtightenuntilit
“clicks.”Wipeupanygasolinethatmayhavespilled.
CheckingtheEngineOilLevel
Beforeyoustarttheengineandusethemachine,checktheoil
levelintheenginecrankcase;refertoCheckingtheEngine
OilLevel(page29).
