Cleaningthe
Engine-CoolingFinsand
Shrouds
ServiceInterval:Every100hours/Yearly(whichever
comesrst)
1.Disengagetheblade-controlswitch(PTO)and
engagetheparkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Removetheair-intakescreen,therecoilstarter,
andthefanhousing(Figure76).
4.Cleanthedebrisandgrassfromtheengine
parts.
5.Installtheair-intakescreen,therecoilstarter,
andthefanhousing(Figure76).
g004218

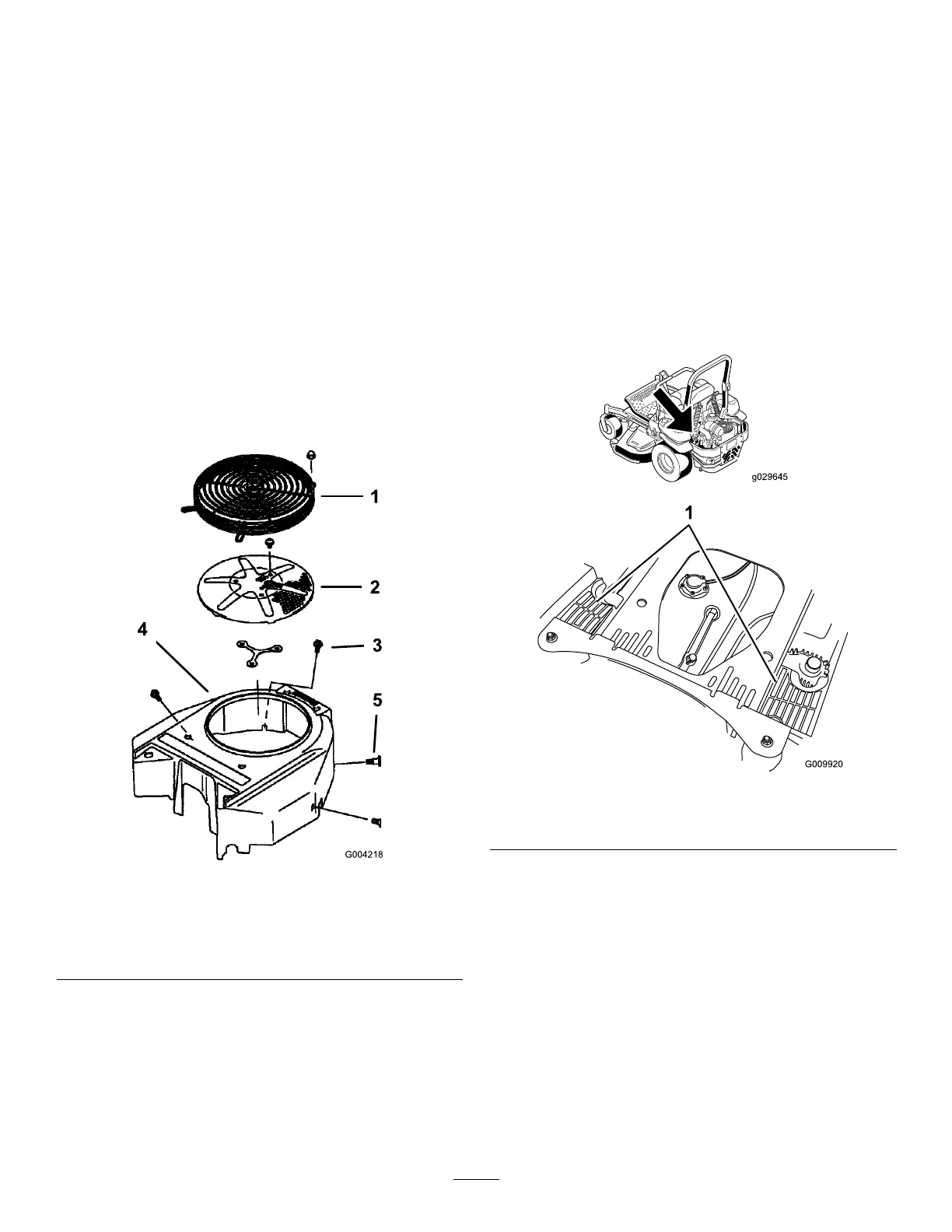

Figure76
1.Engineguard4.Fanhousing
2.Engineair-intakescreen
5.Screw
3.Bolt
CheckingandCleaningthe
Hydraulic-UnitShrouds
ServiceInterval:Beforeeachuseordaily
1.Disengagetheblade-controlswitch(PTO)and
engagetheparkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Movetheseatforward.
4.Cleanthedebrisandgrassfromthe
hydraulic-unitshrouds(Figure77).
5.Positiontheseat.
g029645
g009920
Figure77
1.Hydraulic-unitshrouds
