Toro 75969TE - Page 11

To Next Page

To Previous Page

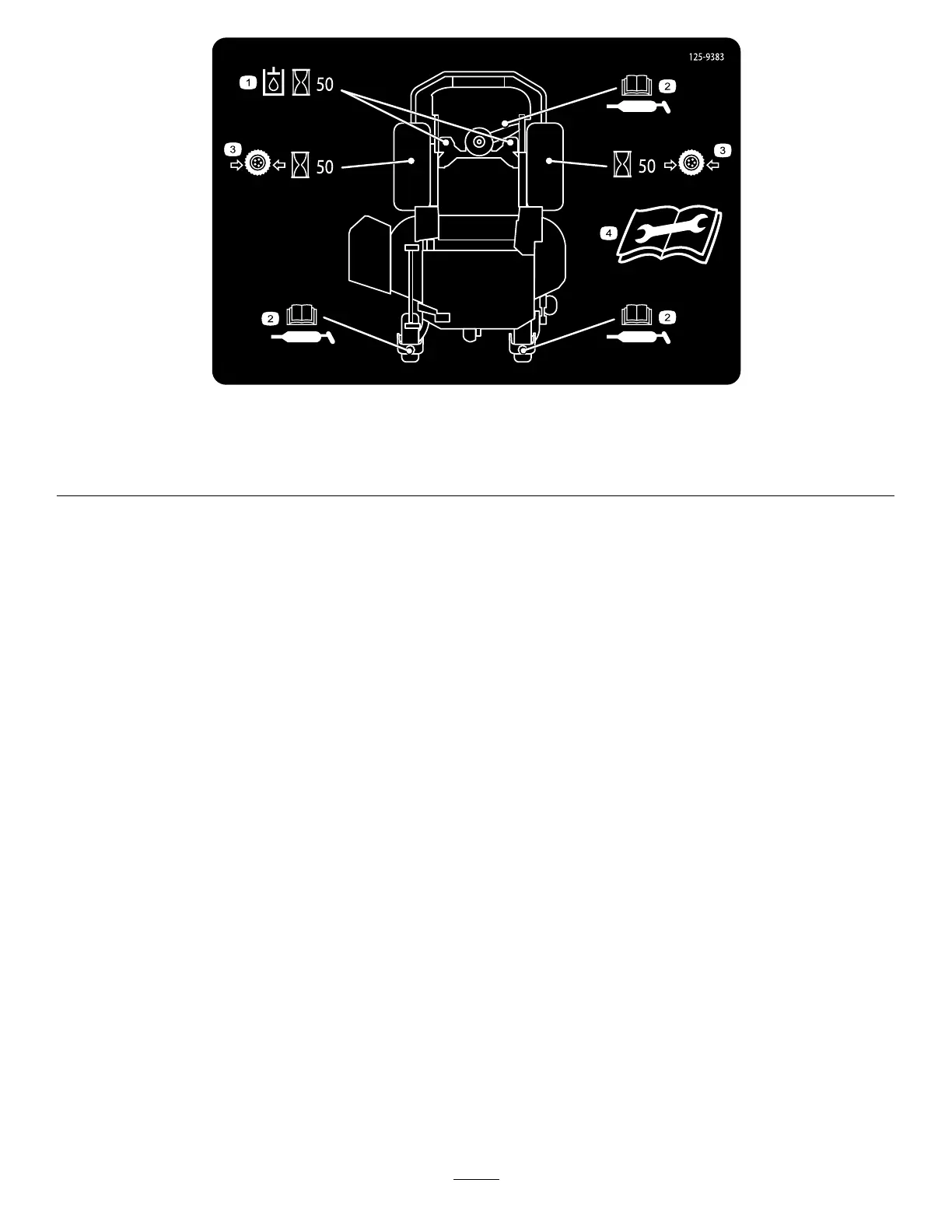

decal125-9383

125-9383

1.Checkthehydraulicuidevery50operatinghours.3.Checkthetirepressureevery50operatinghours.

2.ReadtheOperator’sManualforinformationonlubricating

themachine.

4.ReadtheOperator’sManualbeforeservicingorperforming

maintenance.
