Toro 75969TE - Adjusting the Height of Cut

AdjustingtheHeightofCut
UsingtheTransportLock
Thetransportlockhas2positions,andisusedwith
thedeck-liftpedal.ThereisaLOCKpositionanda
UNLOCKpositionforthetransportposition(Figure28).

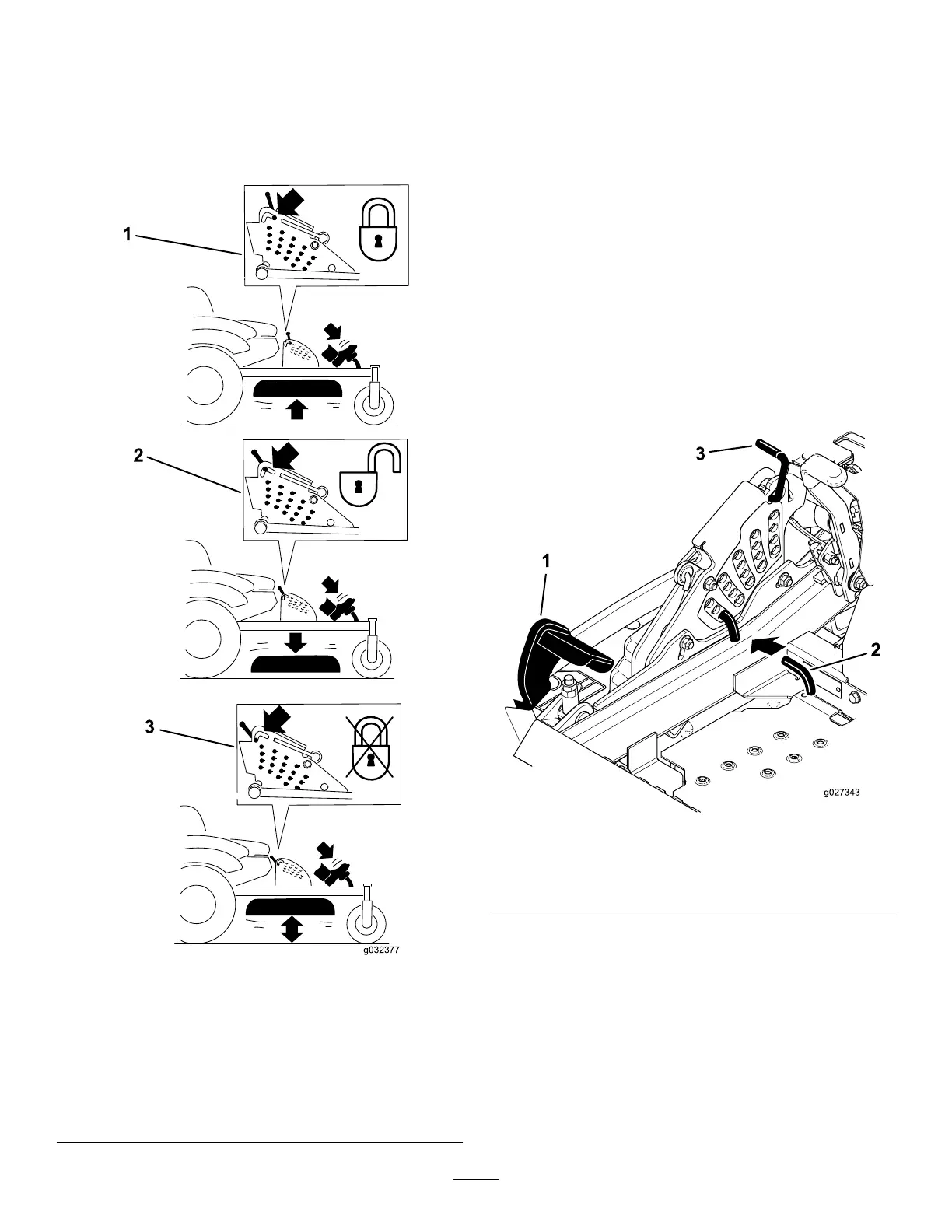

g032377
Figure28
Transport-LockPositions
1.Transportlock3.UNLOCKposition—does
notlockthemowerdeck
intotransportposition
2.LOCKposition—mower
decklocksintotransport
position
AdjustingtheHeight-of-CutPin
Theheight-of-cutisadjustedfrom25to140mm(1
to5-1/2inches)in6mm(1/4inch)incrementsby
relocatingtheclevispinintodifferentholelocations.
1.Movethetransportlocktothelockposition.
2.Pushonthedeck-liftpedalwithyourfoot,and
raisethemowerdecktothetransportposition
(alsothe140mm(5-1/2inches)cuttingheight
position)asshowninFigure29.
3.Toadjust,rotatethepin90degreesandremove
thepinfromtheheight-of-cutbracket(Figure
29).
4.Selectaholeintheheight-of-cutbracket
correspondingtotheheight-of-cutdesired,and
insertthepin(Figure29).
5.Pushonthedecklift,pullbackonthetransport
lock,andslowlylowerthemowerdeck.
g027343
Figure29
1.Deck-liftpedal
3.Transportlock
2.Cut-of-heightpin
28
