ServicingtheFuses
Theelectricalsystemisprotectedbyfuses,andrequiresno
maintenance.Ifafuseblows,checkthecomponentorcircuit
foramalfunctionorshort.
1.Releasethecushionfromtherearofthemachine.

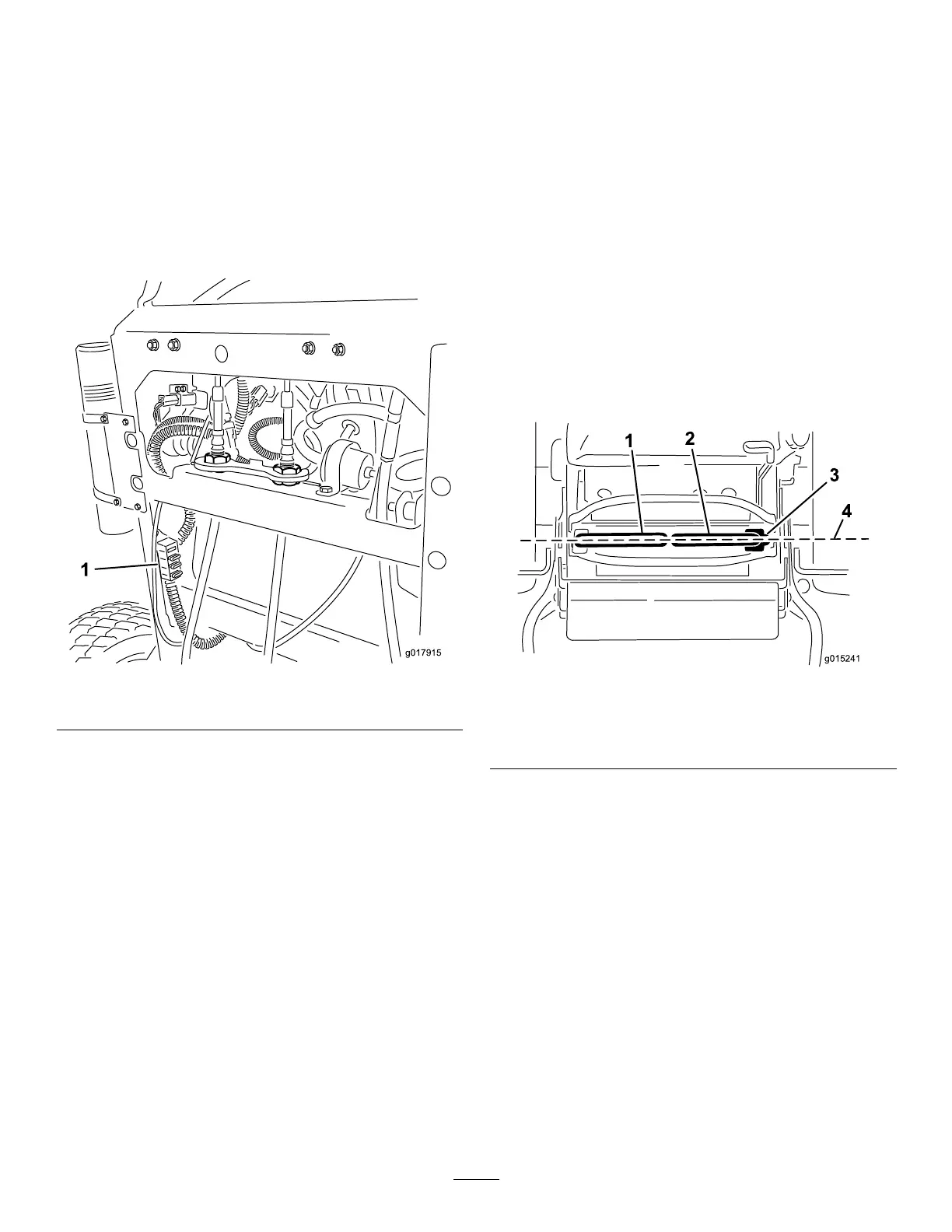

2.Pulloutonthefusetoremoveorreplaceit(Figure55).
3.Installthecushiontotherearofthemachine.
Note:Ensurethatthecorrect-sizefuseisinstalled
Figure55.
g017915
1
Figure55
1.Fuses
DriveSystem
Maintenance
AdjustingtheTracking
Note:Determinetheleftandrightsidesofthemachine
fromthenormaloperatingposition.
1.Pushbothcontrolleversforwardthesamedistance.
2.Checkifthemachinepullstooneside.
Note:Ifitdoes,stopthemachineandsettheparking
brake.
3.Releasethecushionfromtherearofthemachine.
4.Rotatetherightcableadjustmenttopositiontheright
motioncontrolinthecenterofthecontrolpanel
neutral-lockslot(Figure57).
g015241
Figure56
1.Leftmotion-controllever
3.Neutral-lockedposition
2.Rightmotion-controllever4.Alignthecontrollevers
fronttoback
5.Rotatetheleftcableadjustmenttomatchtheleft
wheelspeedtothepreviouslysetrightwheelspeed.
6.Adjustinquarter-turnincrementsuntilthemachine
tracksstraight.
Note:Onlyadjusttheleftcabletomatchtheleft
wheelspeedtotherightwheelspeed.Donotadjust
therightwheelspeedasthiswillpositiontheright
motion-controlleveroutofthecenterforthecontrol
panelneutral-lockslot.
