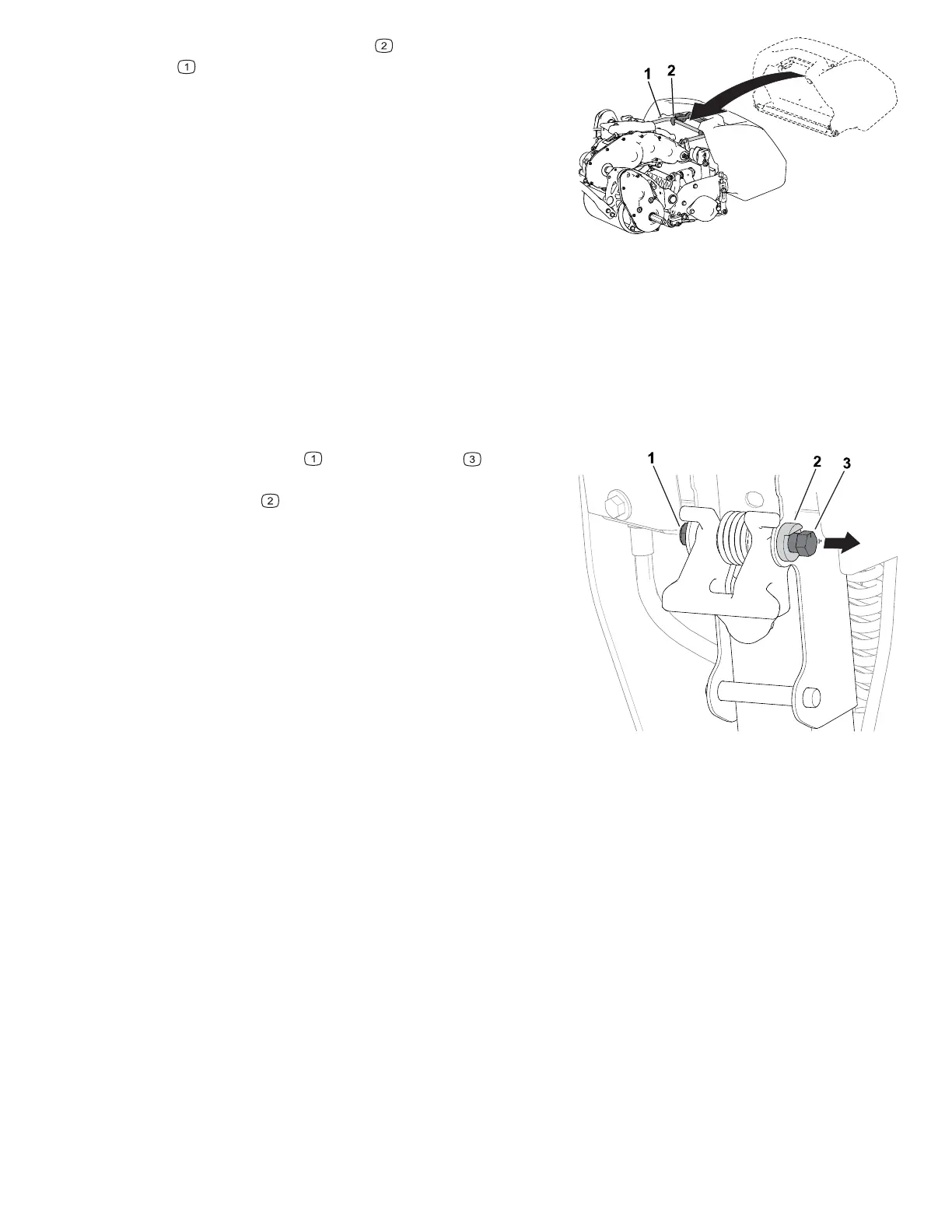

G404689
3. Install the basket hooks over the frame loop
.
Adjusting the Latch Bolt for the Handle-Height
Adjuster
If the handle-height adjuster is not parallel with the upper receiver weldment, perform the
following steps to adjust the bolt:
G440770
1. Loosen the nut on the latch bolt so that
the bolt head can move freely just beyond the
pivot stop
.
Note: You can apply pressure to the handle-
height-adjuster spring to reduce tension on the
bolt.
Setup: Adjusting the Latch Bolt for the Handle-Height
Adjuster
Page 3–3 3460-892 A
