G440771

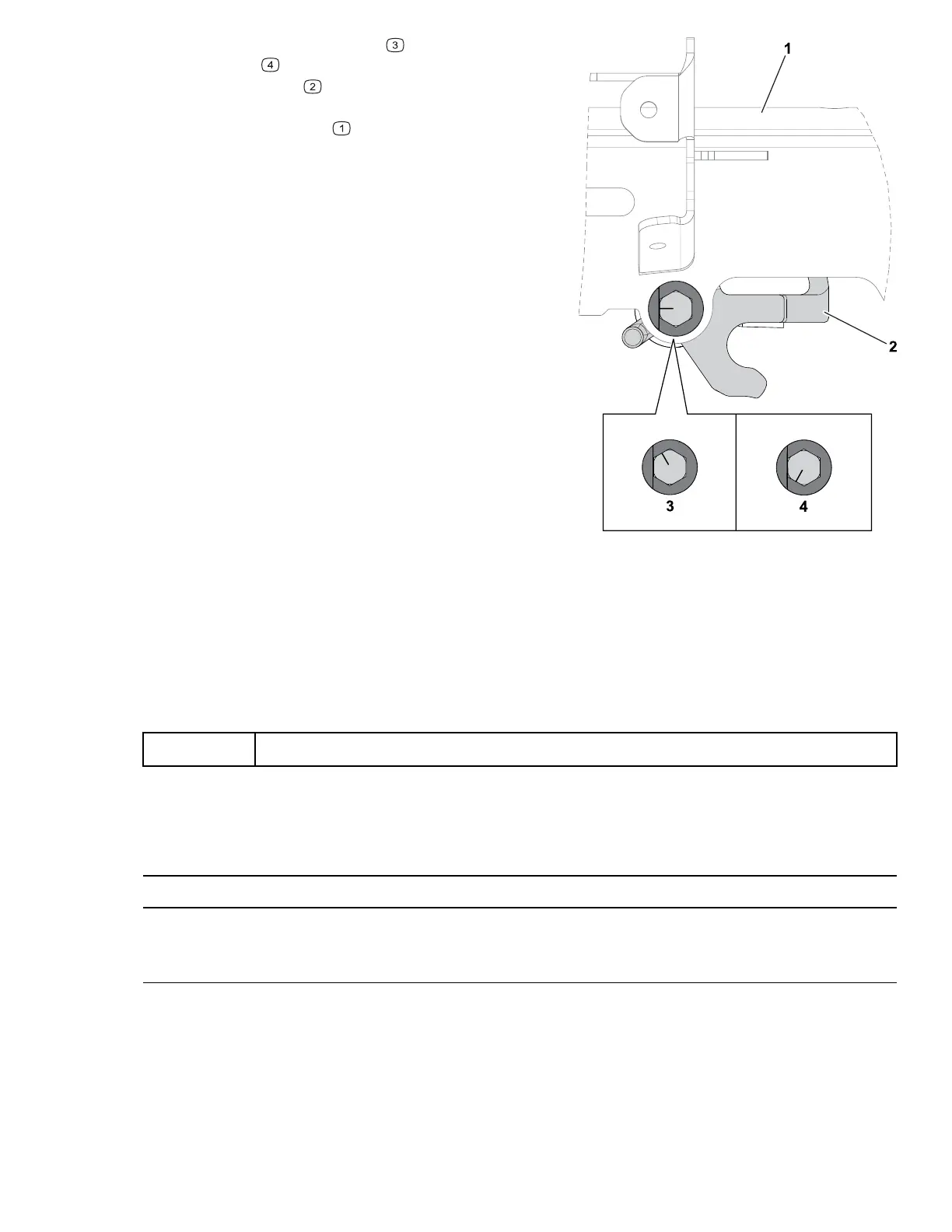

2. Rotate the bolt clockwise or counter-
clockwise
to adjust the angle of the handle-
height adjuster
in or out. The handle-height
adjuster should be parallel to the upper
receiver weldment
.
3. Tighten the nut on the latch bolt so that the
new bolt position is secured against the pivot
stop.
Mounting the Battery Charger
Optional
Parts Required
4 Screw (1/4 inch with a 7/16 diameter head)—Not included
You can mount the charger to a surface using the key holes on the back of the charger; use
screws that have a 1/4-inch diameter shaft and a head diameter less than 11 mm (7/16
inch).
IMPORTANT
Survey your work area and determine a location that best meets the criteria for safe
and effective operation of the charger.
3460-892A Page 3–4 Setup: Mounting the Battery Charger
