Replacing Fuses (continued)
G404897

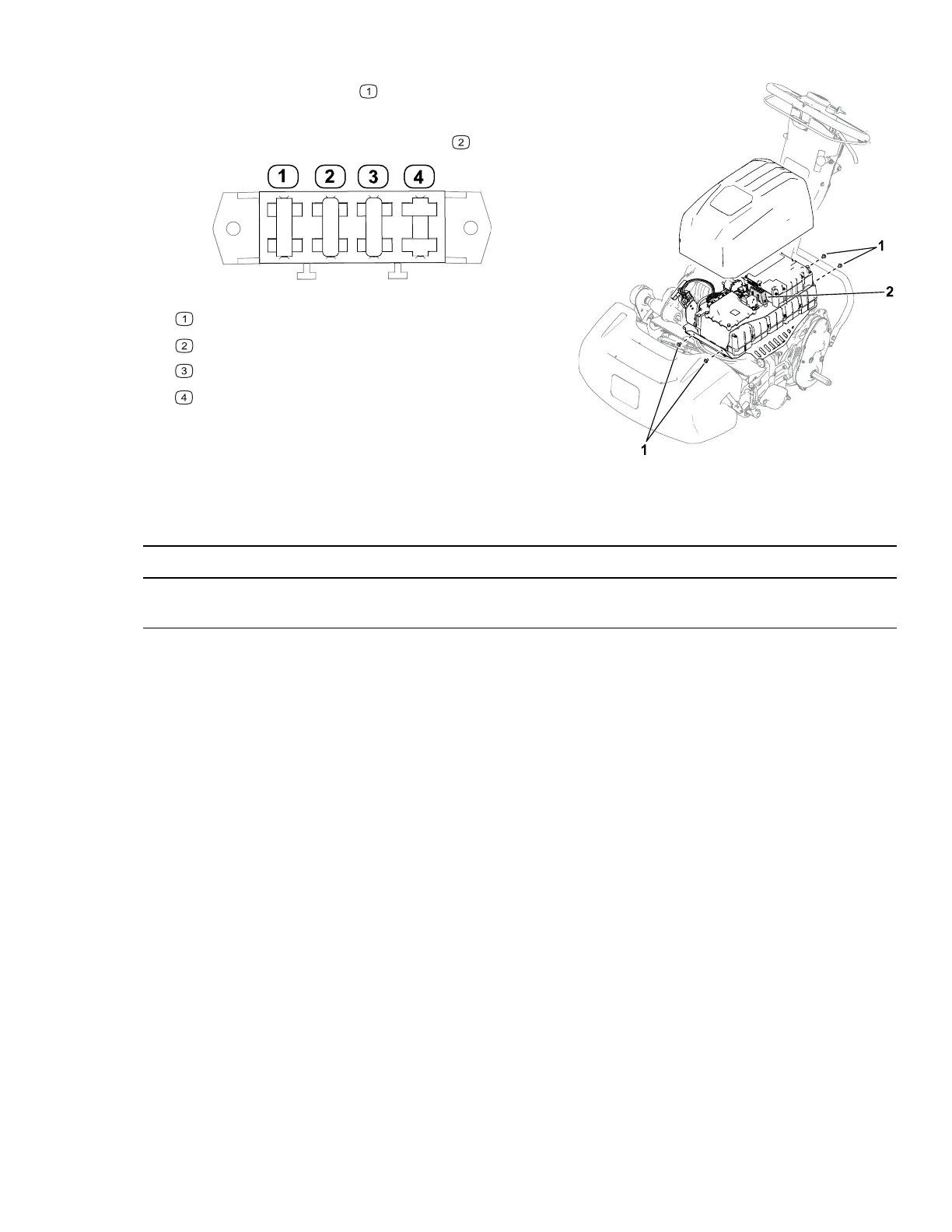

2. Remove the 4 screws that secure the
battery-pack cover and remove the cover.
3. Check the fuses in the fuse block
.
G404909
30A—main power supply circuits
3A—logic power supply circuits
3A—optional LED work light circuit
Open slot
4. If any fuse is blown, replace them with a fuse
of the appropriate voltage and amperage.
Refer to the traction unit Service Manual for
specific fuse part numbers.
IMPORTANT
All fuses on the machine are rated for 80V. Do not use 12V automotive fuses.
Controls Maintenance
Adjusting the Service/Parking Brake
Adjust the service/parking brake if it slips during operation.
