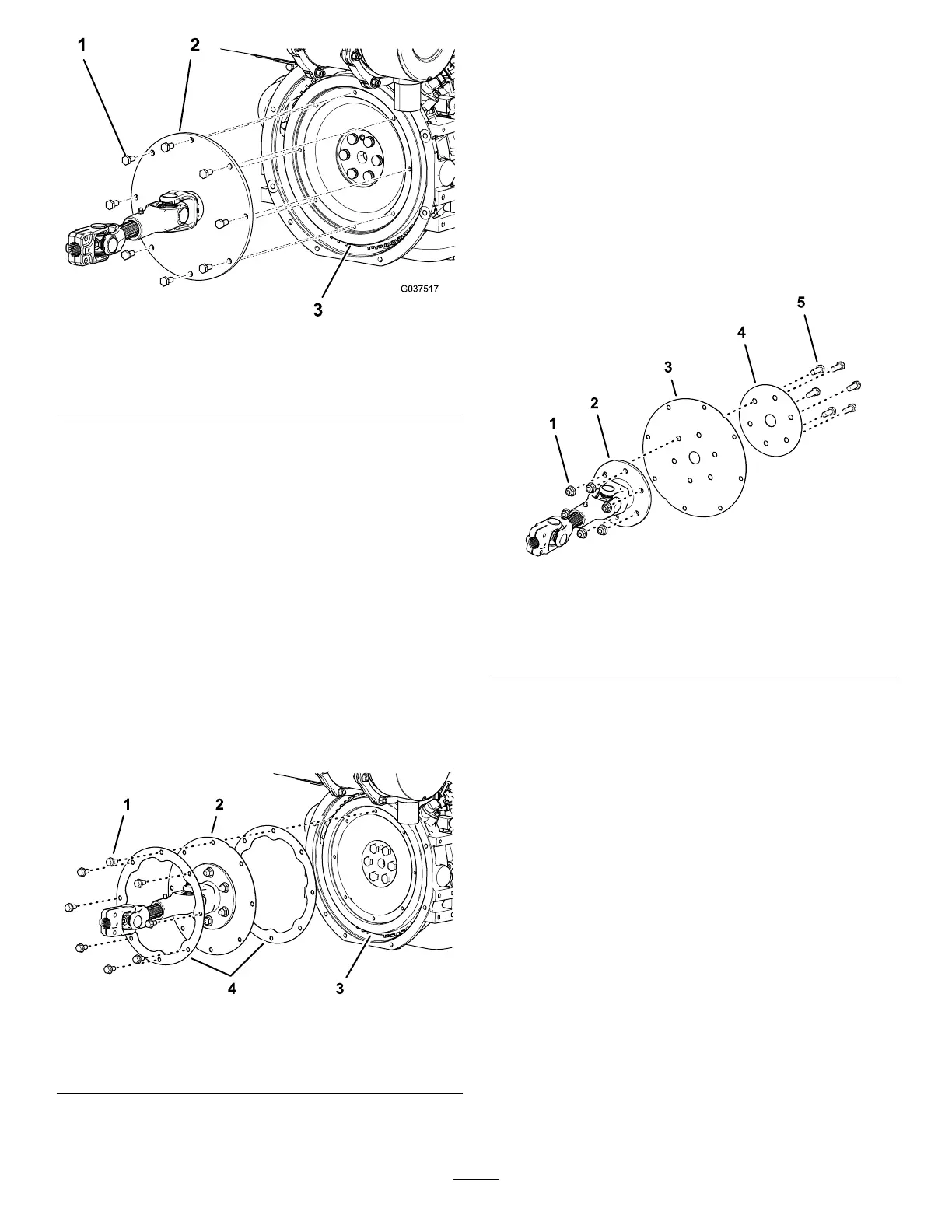

g037517
Figure3
1.Flange-headcapscrew(8)3.Flywheel(engine)
2.Flywheel-adapterplate
RemovingtheDriveshaftand
Flywheel-AdapterPlatefromthe
Engine
MachineswithBack-UpRings
Remove8ange-headcapscrewsthatsecurethe
ywheel-adapterplateand2backupringstothe
ywheeloftheengine,andremovethebackuprings
andthedriveshaftandywheel-adapterplatefromthe
machine(Figure4).
Discardthe8ange-headcapscrewsand2backup
ringsthatyouremoved.
Note:Keepthedriveshaftandywheel-adapterplate
forlaterinstallation.
g266462
Figure4
1.Flange-headcapscrew
3.Flywheel(engine)
2.Flywheel-adapterplate4.Backuprings
Replacingthe
Flywheel-AdapterPlate
RemovingtheDriveshaftfromthe
Flywheel-AdapterPlate
1.Removethe6capscrewsand6angelocknuts
thatsecuretheywheel-adapterplateand
backupplatetothedriveshaft(Figure5).
Discardthe6capscrewsand6nutsthatyou
removed.
g266461
Figure5
1.Flangelocknut4.Backupplate
2.Driveshaft5.Capscrew
3.Flywheel-adapterplate
2.Separatethedriveshaftfromthe
ywheel-adapterplateandbackupplate
(Figure5).
Discardtheywheel-adapterplateandbackup
platethatyouseparated.
3
