Ignition / Charge Coil Gap Adjustment
High Voltage Ignition Systems can be Dangerous - Use Caution when Servicing Ignition Systems
1. Install the coil and lightly tighten the mounting bolts.
2. Rotate engine so the coil is aligned with the magnet portion of the flywheel.
3. Insert the feeler gauge between the flywheel and coil.
4. Adjust the coil gap at both side of the coil.
5. Torque the coil mounting bolts to specification – 7.5 ft-lbs (10 Nm).
Ignition Coil Resistance Inspection
Primary Coil
Place Ohm meter leads between the harness connection
lead and the exposed metal coil leg.
Secondary Coil
Place Ohm meter leads between exposed metal coil leg
and the spark plug terminal connection.

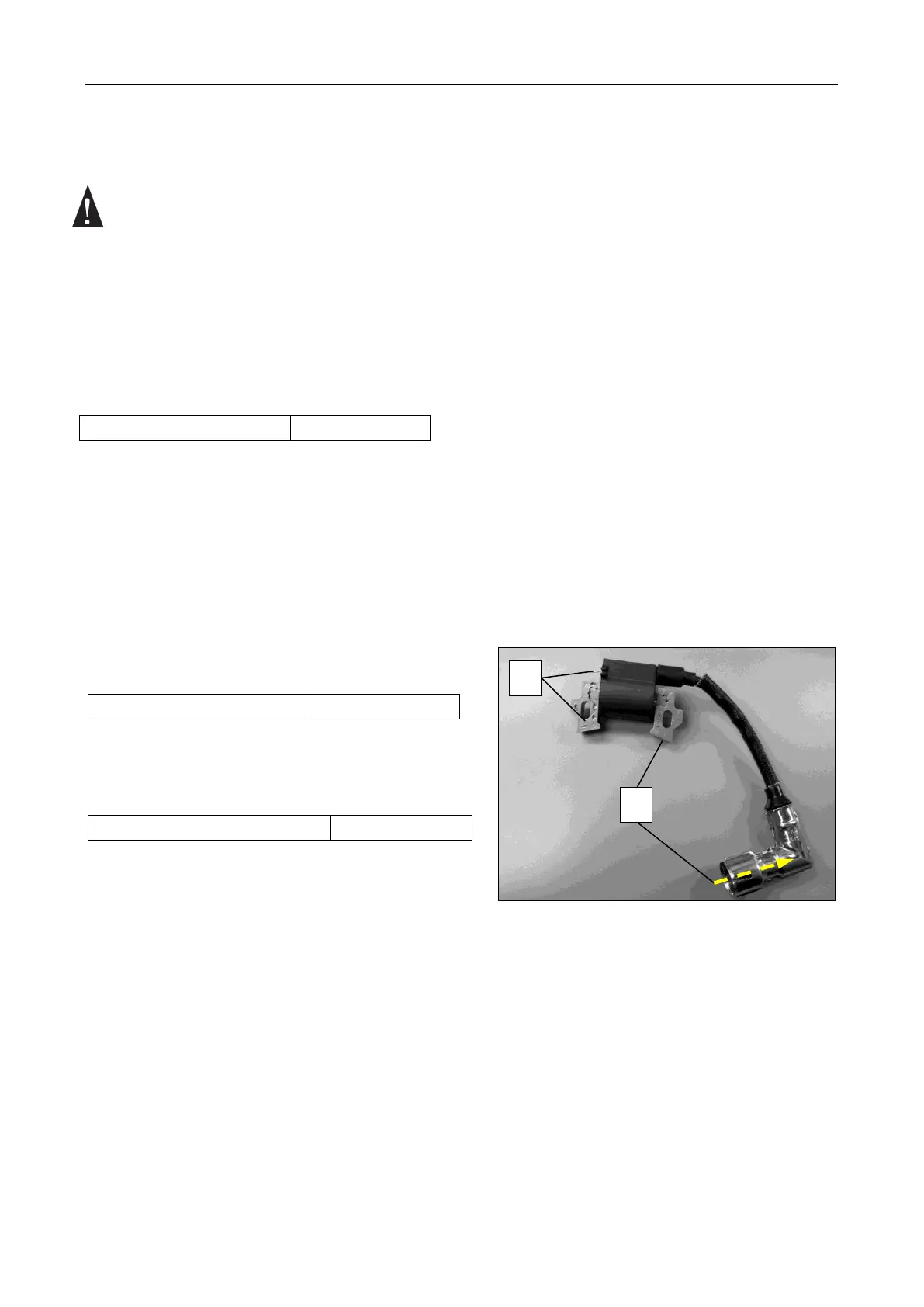

Ignition / Charge Coil Gap
A - Primary Coil Resistance
B - Secondary Coil Resistance
