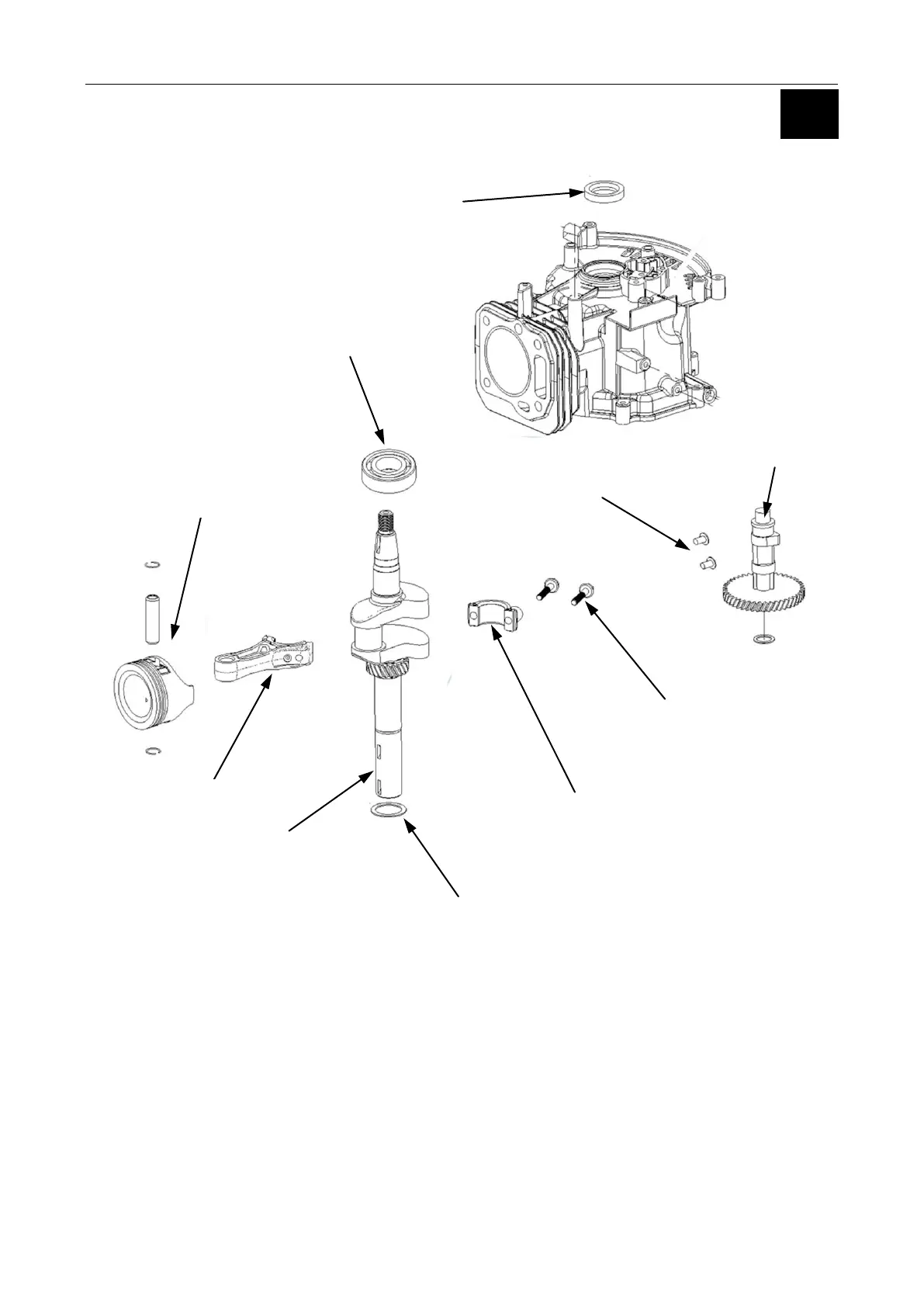

Crankshaft / Piston / Camshaft Exploded View and Service Info
3
Crankshaft
Thrust Washer
Connecting Rod
Bolts
9.5 ft-lbs (13 Nm)
Bearing
Piston Asm.
Connecting Rod
Connecting Rod Cap
Valve Tappets
Cam Shaft
Oil Seal
