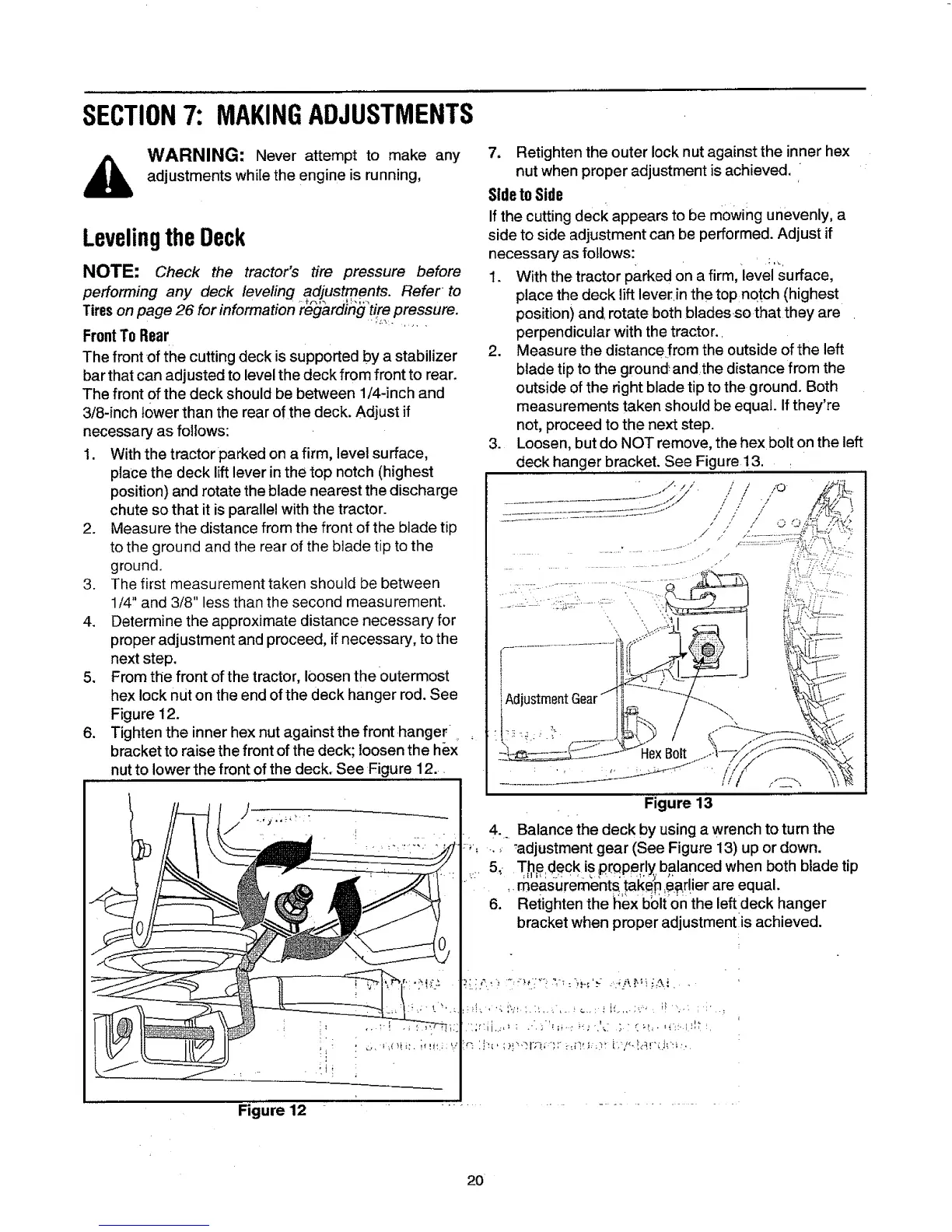

SECTION7: MAKINGADJUSTMENTS
WARNING: Never attempt to make any
adjustments while the engine is running,
Levelingthe Deck
NOTE: Check the tractor's tire pressure before
performing any deck leveling adjustments. Referto
Tireson page 26 for information r_arding_tire pressure.
FrontTo Rear
The front of the cutting deck is supported by a stabilizer
bar that can adjusted to level the deck from front to rear.
The front of the deck should be between 1/4-inch and
3!8-inch lower than the rear of the deck. Adjust if
necessary as follows:
1. With the tractor parked on a firm, level surface,
place the deck lift lever in the top notch (highest
position) and rotate the blade nearest the discharge
chute so that it is parallel with the tractor.
2. Measure the distance from the front of the blade tip
to the ground and the rear of the b]ade tip to the
ground.
3. The first measurement taken should be between
1/4" and 3/8" less than the second measurement.
4. Determine the approximate distance necessary for
proper adjustment and proceed, if necessary, to the
next step.
5. From the front of the tractor, loosen the outermost
hex lock nut on the end of the deck hanger rod. See
Figure 12.
6. Tighten the inner hex nut againstthe front hanger ,
bracket to raise the front of the deck; loosen the hex
nut to lower the front of the deck. See Figure 12..
7. Retighten the outer lock nut against the inner hex
nut when proper adjustment is achieved. "
Sideto Side
Ifthe cutting deck appears to be mowing unevenly, a
side to side adjustment can be performed. Adjust if
necessary as follows:
1. With the tractor parked on a firm, level surface,
place the deck lift leverin the topnotch (highest
position) and, rotate both b ades so that they are
perpendicular with the tractor. _
2. Measure the distance from the outside of the left
blade tip to the ground_and the distance from the
outside of the right blade tip to the ground. Both
measurements taken should be equal. If they're
not, proceed to the next step.
3. Loosen, but do NOT remove, the hex bolt on the left
deck hanger bracket. See Figure 13.
• / /,,' _ - iY_f7
• ". . t ! ,,O _ ,_.
................................... .i/ .." / .,, ._'v._:;
_'_'i: .................:.................. : :.ii _ _, '.'". '
i
iAdjustmentGear _
Figure 13
4. Balance the deck by using a wrench to turn the
"-adjustmentgear (See Figure 13) up or down.
_.:.5.- T..h,edeck s p.roper y ba anced when both blade tip
measurements takeD,e .a,rher are equal.
6. Retighten the }lex b01t0nthe leftdeck hanger
bracket when proper adjustment is achieved.
Figure 12
20¸
