Toro LX500 - Cruise Control Circuit

2006 190-D (Int’l)
2007 DH220 (Int’l)
11 - 12 Demystification Guide

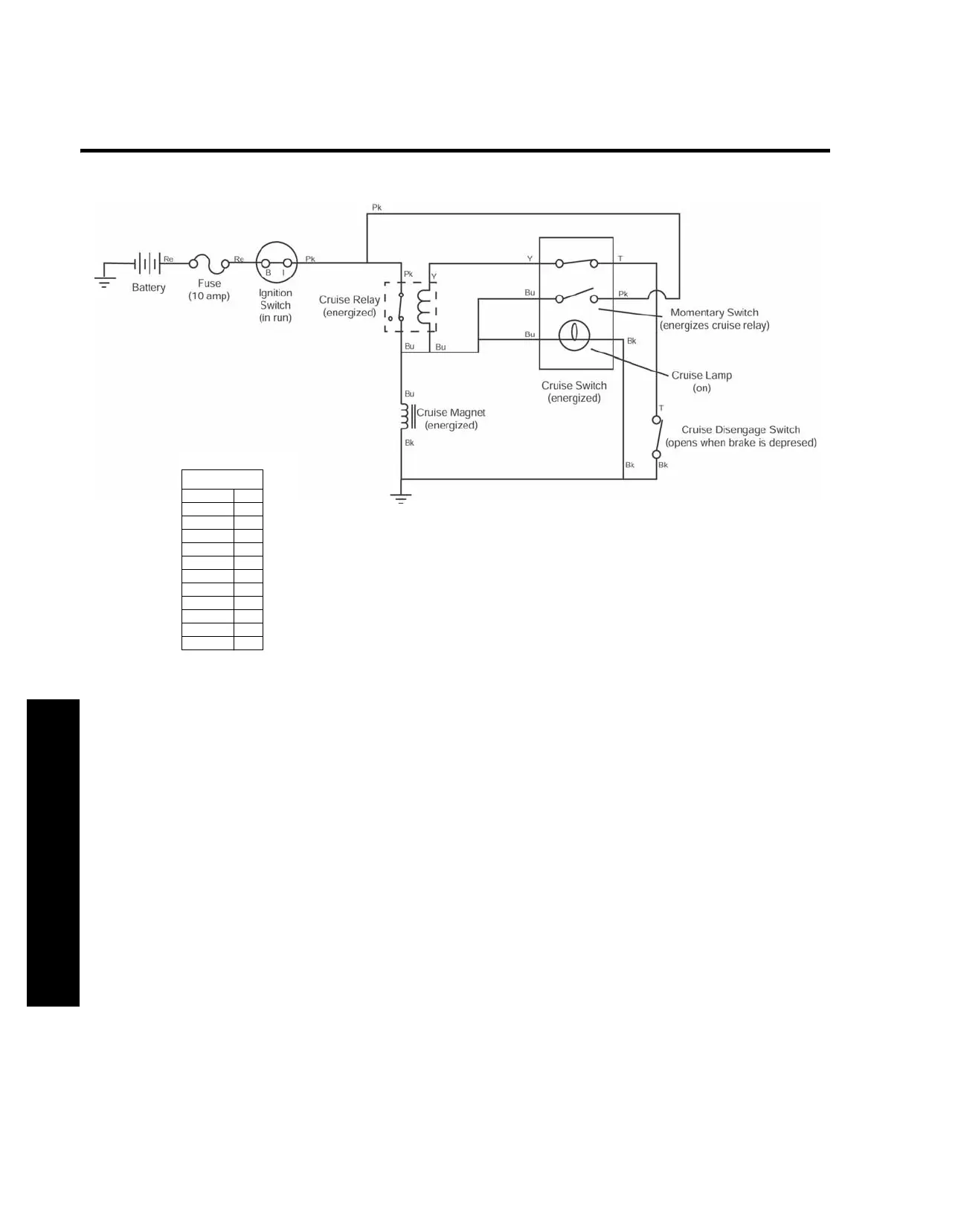

Cruise Control Circuit
(ignition switch in “run”)
Legend
Black Bk
Blue Bu
Brown Bn
Green Gn
Grey Gy
Orange Or
Pink Pk
Red Re
Tan T
Violet Vio
White W
Yellow Y
Circuits
