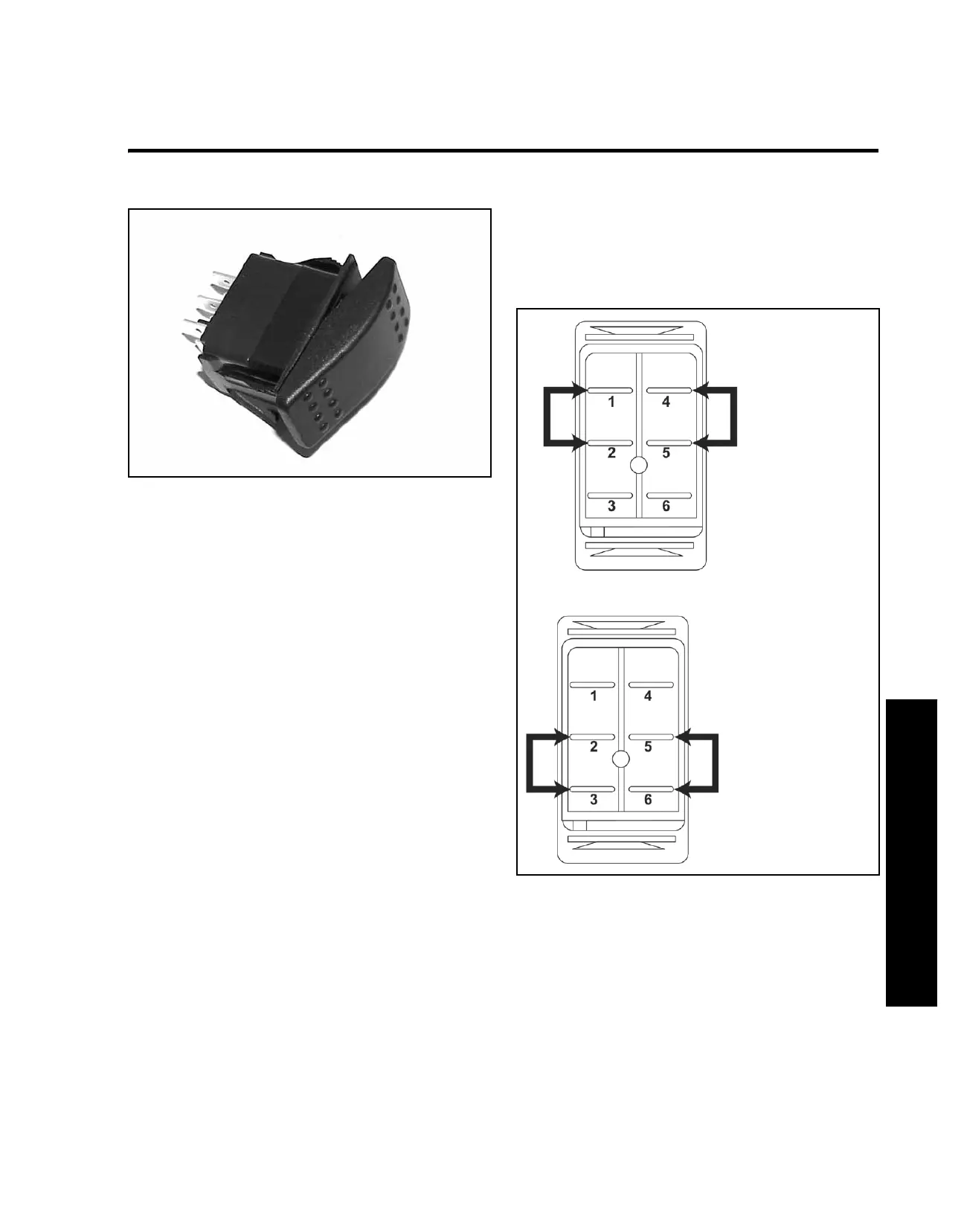

Switch, Light
Figure 34 mvc-108
Purpose
This rocker switch is typically used to provide switching
for the lights (Figure 34).
How it Works
The switch has contacts inside which connect two
terminals in one position while disconnecting the other
two. The rating on the switch is 20 amp capacity at 12
volts.
Testing
1. Disconnect the switch from the wiring harness.
2. Using a VOM or test lamp, test the continuity of
the terminals, using the diagrams below (Figure
35).
Figure 35
mvc162art
“OFF” Position no
continuity
“ON” Position
continuity between
terminals 2-3 / 5-6
