Toro LX500 - Charging Circuit

170-D (Int’l), 150-D (Int’l) 2006
DH210 (Int’l), DH210 (Int’l) 2007
10 - 10 Demystification Guide

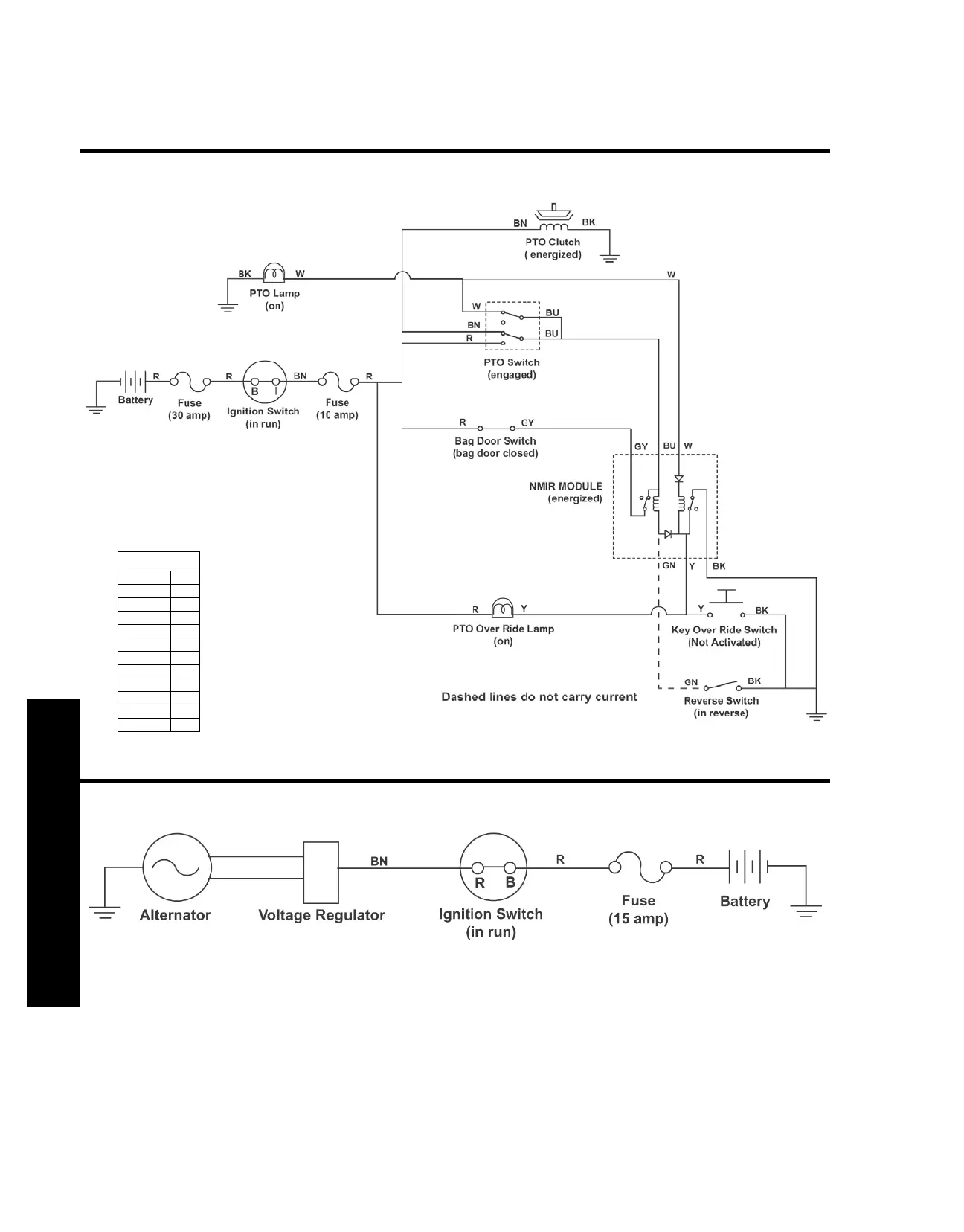

Reverse Operating System Circuit
(PTO “on”, in reverse, override mode)
Charging Circuit
(ignition switch in “run”)
Legend
Black Bk
Blue Bu
Brown Bn
Green Gn
Grey Gy
Orange Or
Pink Pk
Red Re
Tan T
Violet Vio
White W
Yellow Y
Circuits
