Toro LX500 - Page 93

2006 170-D (Int’l), 150-D (Int’l)
2007 DH210 (Int’l), DH210
Demystification Guide 10 - 9

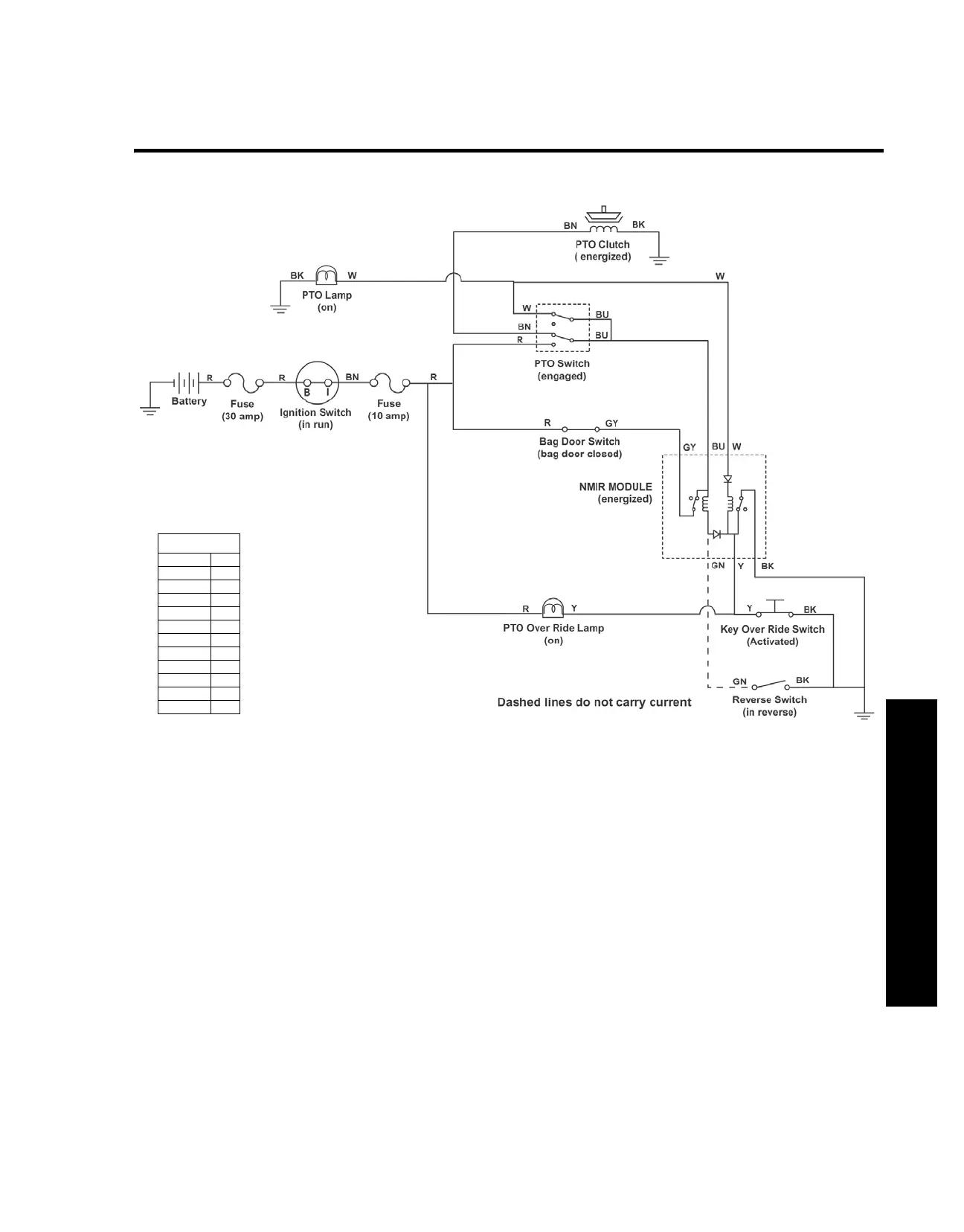

Reverse Operating System Circuit
(Override key switch “activated”)
Legend
Black Bk
Blue Bu
Brown Bn
Green Gn
Grey Gy
Orange Or
Pink Pk
Red Re
Tan T
Violet Vio
White W
Yellow Y
Circuits
