TIME SAVERS
2 - 10
Demystification Glossar
y

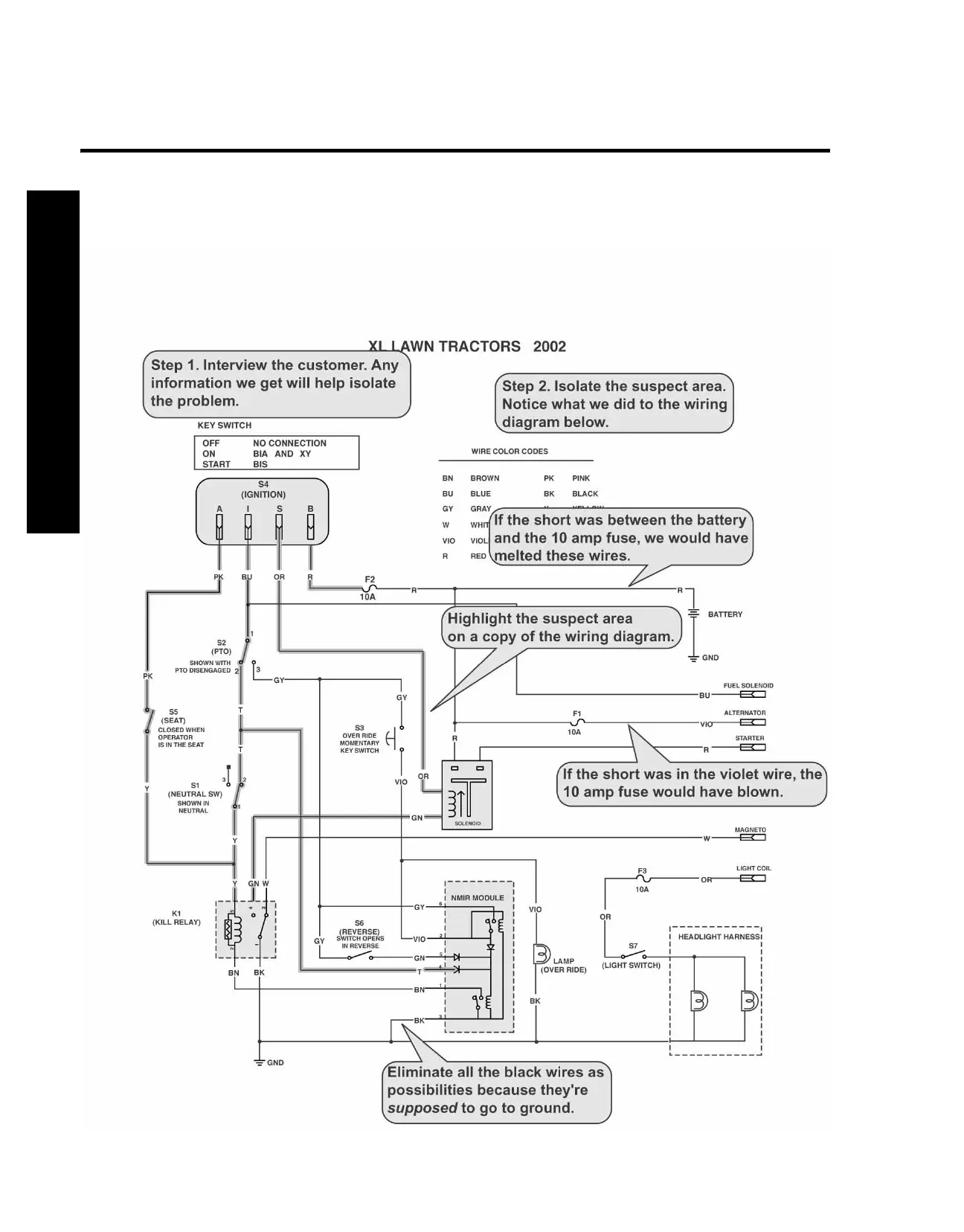

Sample Problem:
This XL lawn tractor won’t turn over
. The customer parked it in the garage
and turned it off. When he tried to start it a week later
, he heard one click.
After that, nothing would happ
en when he turned the key
.
We know it
is a short circuit because
we found the 10 amp fuse blown.
T
r
oubleshooting
11
13
Table of Contents
Glossary
17
Demystification Glossary
4
Table of Contents
17
Clutch, Electric (PTO)
19
Troubleshooting
19
Gauge, Fuel
20
Gauge, Voltmeter
21
Hourmeter
22
Magnet Assembly - Cruise Control
23
Microswitches
23
Keychoice™ Reverse Operating System
24
Keychoice™ Reverse Operating System Module
25
Module, Keychoice™ Reverse Operating System (Electric PTO Clutch)
27
Module, Keychoice™ Reverse Operating System (Manual PTO Clutch)
29
Module, Low Voltage
30
Relay
30
Sender, Fuel (P/N 94-1716)
31
Sender, Fuel (P/N 95-3971)
32
Solenoid
32
Switch, Brake
33
Switch, Cruise Control (P/N 93-0527 and P/N 94-7602)
34
Switch, Key (P/N 88-9830 or 104-2541)
35
Switch, Key (P/N 99-7429)
36
Switch, Key (P/N 92-6785)
37
Switch, Keychoice™ Reverse Operating System
38
Switch, Light
39
Switch, Neutral
40
Switch, Neutral - Plunger Type
40
Switch, Neutral Adjustable - Plunger Type
41
Switch, PTO
42
Switch, Reverse
43
Switch, Seat
43
315-8 2007 Classic Gt
45
Classic GT
45
Wiring Diagrams
46
Starter Motor Circuit
48
Spark Circuits
49
Reverse Operating System Circuits
50
Battery Charge Circuit
54
Hourmeter
55
Light Circuit
55
Low Oil Pressure Light Circuit
55
Z480, Z440 (Int'l) 2007
61
Wiring Diagram
62
Starter Motor Circuit
63
Spark Circuits
64
PTO Clutch Circuit
64
2006 Zx480, Zx525 (Int'l), Zx525 2007 Zx440 (Int'l)
65
Wiring Diagram
66
Starter Motor Circuit
67
Spark Circuits
68
Battery Charge Circuit
68
PTO Clutch Circuit
68
2006 1332-G (Int'l) 2007 G132 (Int'l)
69
G (Int'l)
69
Wiring Diagrams
70
Starter Motor Circuit
72
Spark Circuits
73
Battery Charge Circuit
76
Bag Full Circuit
76
2006 1332-H Int'l) 2007 H132 (Int'l)
77
Wiring Diagrams
78
H (Int'l)
78
H132 (Int'l)
79
Starter Motor Circuit
80
Spark Circuits
81
Battery Charge Circuit
83
Bag Full Circuit
84
2006 170-D (Int'l), 150-D (Int'l) 2007 Dh210 (Int'l), Dh210
85
D (Int'l), 150-D (Int'l)
85
Wiring Diagrams
86
Starter Motor Circuit
88
Spark Circuits
89
Charging Circuit
94
Light Circuit
95
Hourmeter Circuit
95
Bag Full Circuit
95
2006 190-D (Int'l) 2007 Dh220 (Int'l)
97
DH220 (Int'l)
97
Wiring Diagram
98
Spark Circuits
100
Starter Motor Circuit
100
Reverse Operating System Circuits
102
Charging Circuit
106
Bag Full Circuit
107
Hourmeter Circuit
107
Light Circuit
107
Cruise Control Circuit
108
Table of Contents
127
Using this Manual
129
Time Savers
130
Glossary
147
Lx420, Lx460
165
Lx425,Lx465
165
Lx500 / Gt2100 / Gt2200 / Gt2300
177
