Toro LX500 User Manual

5HYHUVH2SHUDWLQJ6\VWHP
(ignition switch in “Reverse Caution”,
RMC “activated”, transmission in “reverse”, PTO “on”)
LX420, LX460 2006
LX425, LX465 2007
 'HP\VWL¿FDWLRQ*XLGH

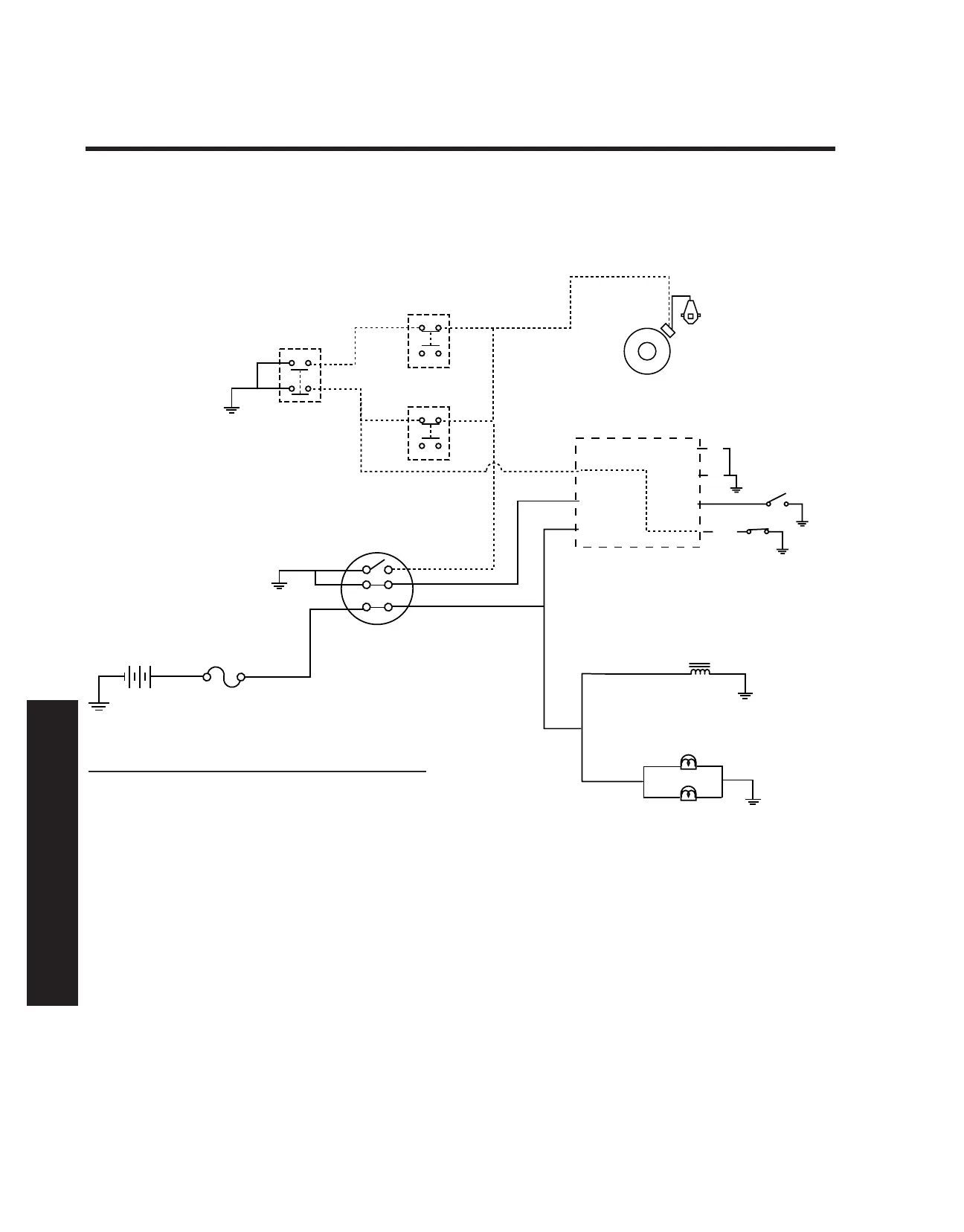

Circuits
Fuel Solenoid
(Energized)
IGNITION
MODULE
SPARK PLUG
Dashed lines do not carry current
GN
GN
Y
Y
Y
R
R
R
R
Y/BK
GN
GN
R R/W
R/W
R
BU
BU
GN
Y
Y/BK
Y/BK
Y/W
Y/BK
PUR
PUR
Headlight Harness
(Headlights on)
G
BA1
M
LA2
Ignition Switch
(In Caution)
Brake Switch
(Brake Off)
Seat Switch
(Operator On)
PTO Switch
(PTO On)
A1 Power
A2 Power
PB Bypass
Magneto
Ground
RMC Module
Rev Sw
Park Sw
Reverse Switch
(In Reverse)
Park Switch
(Brake Off)
R/BK
Battery
Fuse
(20 Amp)
BN
BU
GY
W
PUR
R
PK
BK
Y
Y/BK
Y/W YELLOW WHITE
T
GN
OR
BROWN
BLUE
GRAY
WHITE
PURPLE
RED
PINK
BLACK
YELLOW
TAN
GREEN
ORANGE
WIRE COLOR CODES
R/W
YELLOW BLACK
RED WHITE
OR/BK
OR/W
ORANGE BLACK
ORANGE WHITE
R/BK RED BLACK
