Toro LX500 - Page 60

Z380, Z420, Z480 2006
5 - 4 Demystification Guide

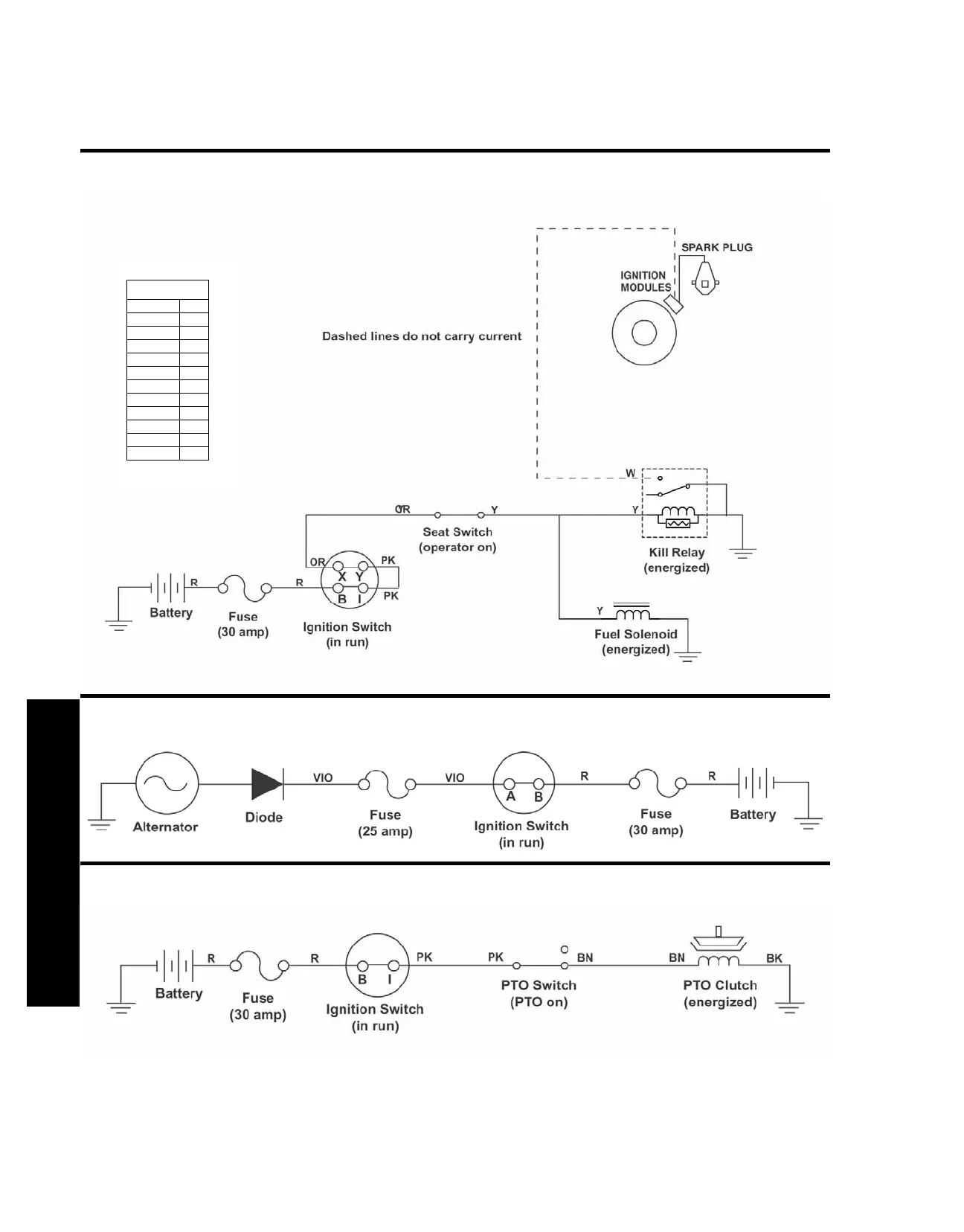

Spark Circuit
(ignition switch in “run”)
Battery Charge Circuit
(ignition switch in “run”)
PTO Clutch Circuit
(ignition switch in “run”)
Legend
Black Bk
Blue Bu
Brown Bn
Green Gn
Grey Gy
Orange Or
Pink Pk
Red Re
Tan T
Violet Vio
White W
Yellow Y
Circuits
