Toro LX500 - Page 82

1332-H (Int’l) 2006
2007
9 - 6 Demystification Guide

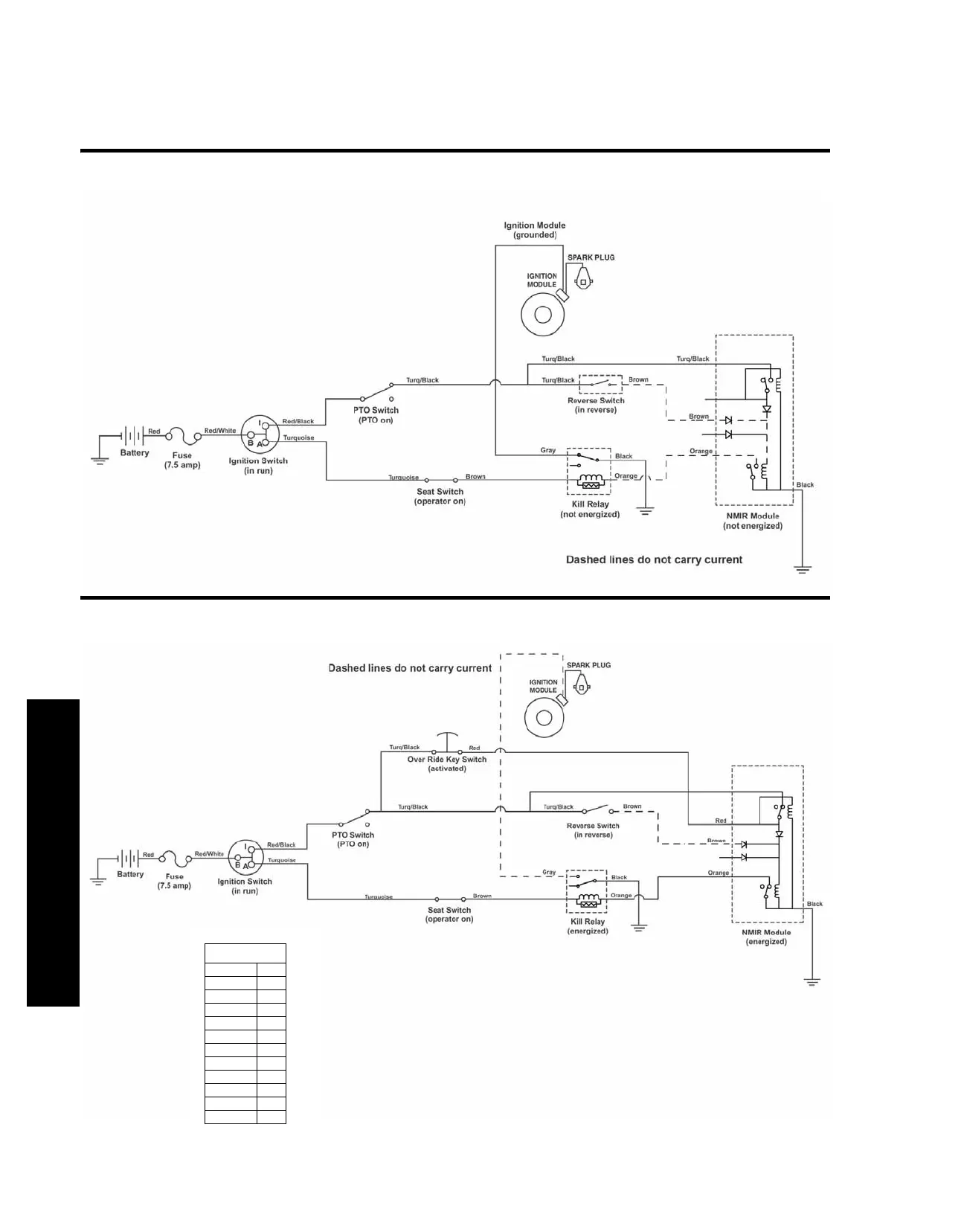

Spark Circuit
(in reverse, PTO “on”)
Spark Circuit
(in reverse, override key switch activated)
Legend
Black Bk
Blue Bu
Brown Bn
Green Gn
Grey Gy
Orange Or
Pink Pk
Red Re
Tan T
Violet Vio
White W
Yellow Y
Circuits
