CHASSIS
3-17
Toro Single Stage Snow Service Manual
Quick Shoot Contols

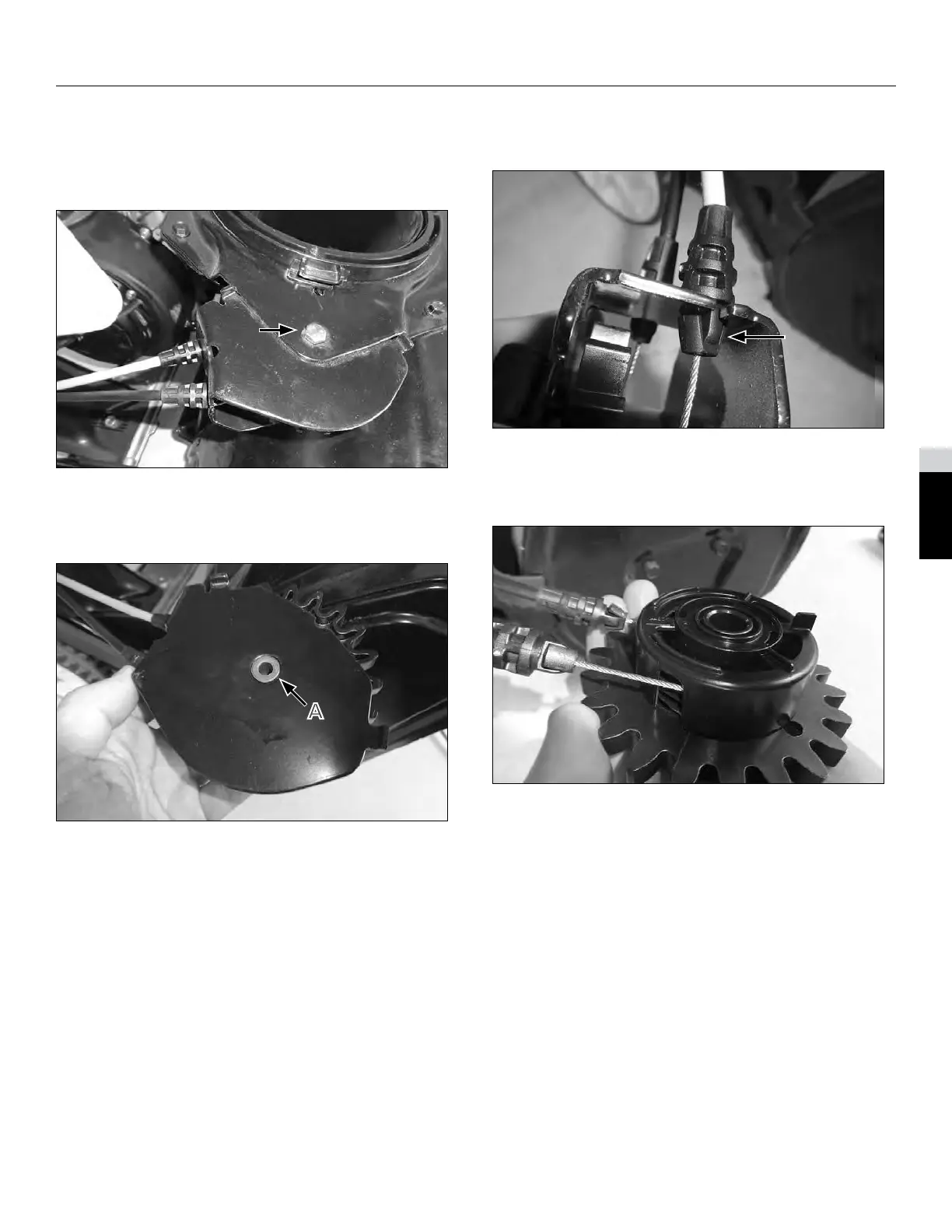

1. Remove the bolt holding the quick chute gear
assembly to the chute housing (Fig. 021).
2. Remove the complete assembly. Remove pinion
spacer sleeve (A) Fig. 022).
Fig. 021
3. With a pliers, compress the cable locks and remove
the cables from the pinion bracket (Fig. 023).
4. Turn the gear assembly over and remove the
cable retainer (Fig. 024).
Fig. 022
A
Fig. 023
Fig. 024
