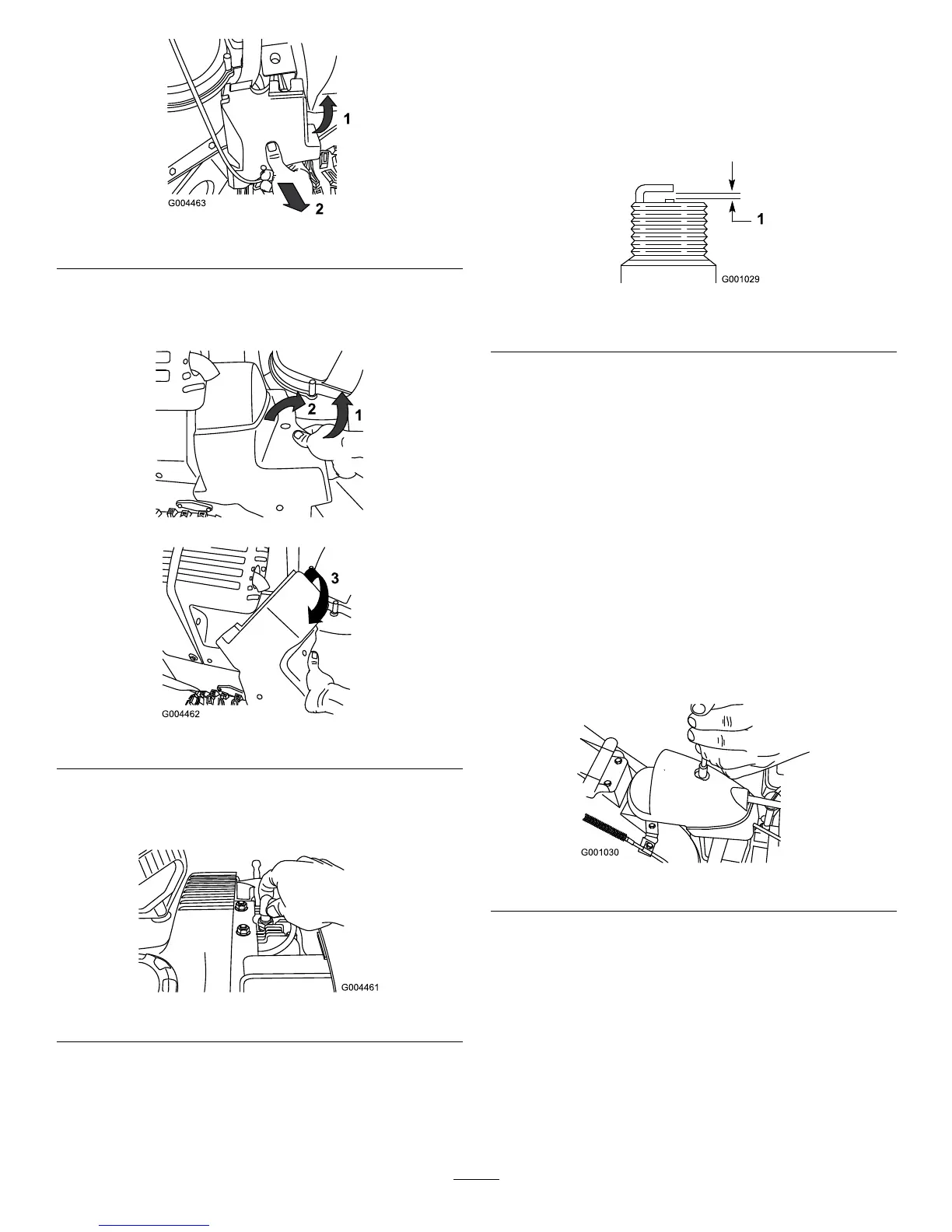

Figure44
3.Removethefastenersontherightbeltcover,
thenremovethecoverinthesequenceshownin
Figure45.
Figure45
4.Separatethefrontenginecoverfromtherearengine
coveranddisconnectthewirefromthesparkplug
(Figure46).
Figure46
5.Cleanaroundthebaseofthesparkplug.
6.Removethesparkplug.
7.Examinethesparkplugandreplaceitifitiscracked,
fouled,dirty,oriftheelectrodesareworn.
Important:Donotcleantheelectrodesbecause
gritcouldenterthecylinderanddamagethe
engine.
8.Setthegapbetweentheelectrodesonthesparkplug
at0.030inch(0.76mm)(Figure47).
Figure47
1.0.030inch(0.76mm)
9.Installthesparkplugbyhandandthentorqueitto
15ft-lb(20.4N·m).
Note:Ifyoudonothaveatorquewrench,tighten
theplugrmly.
AdjustingtheDischargeChute
Latch
Ifthedischargechutedoesnotlockintothedesired
positionordoesnotunlocksothatyoucanmoveitto
anotherposition,adjustthedischargechutelatch.
1.Removethefasteneronthegearcover(
Figure48),
liftthefrontofthecoverup,andslideitbackand
outoftheway.
Figure48
2.Loosentheboltonthecableclamp(Figure49).
21
