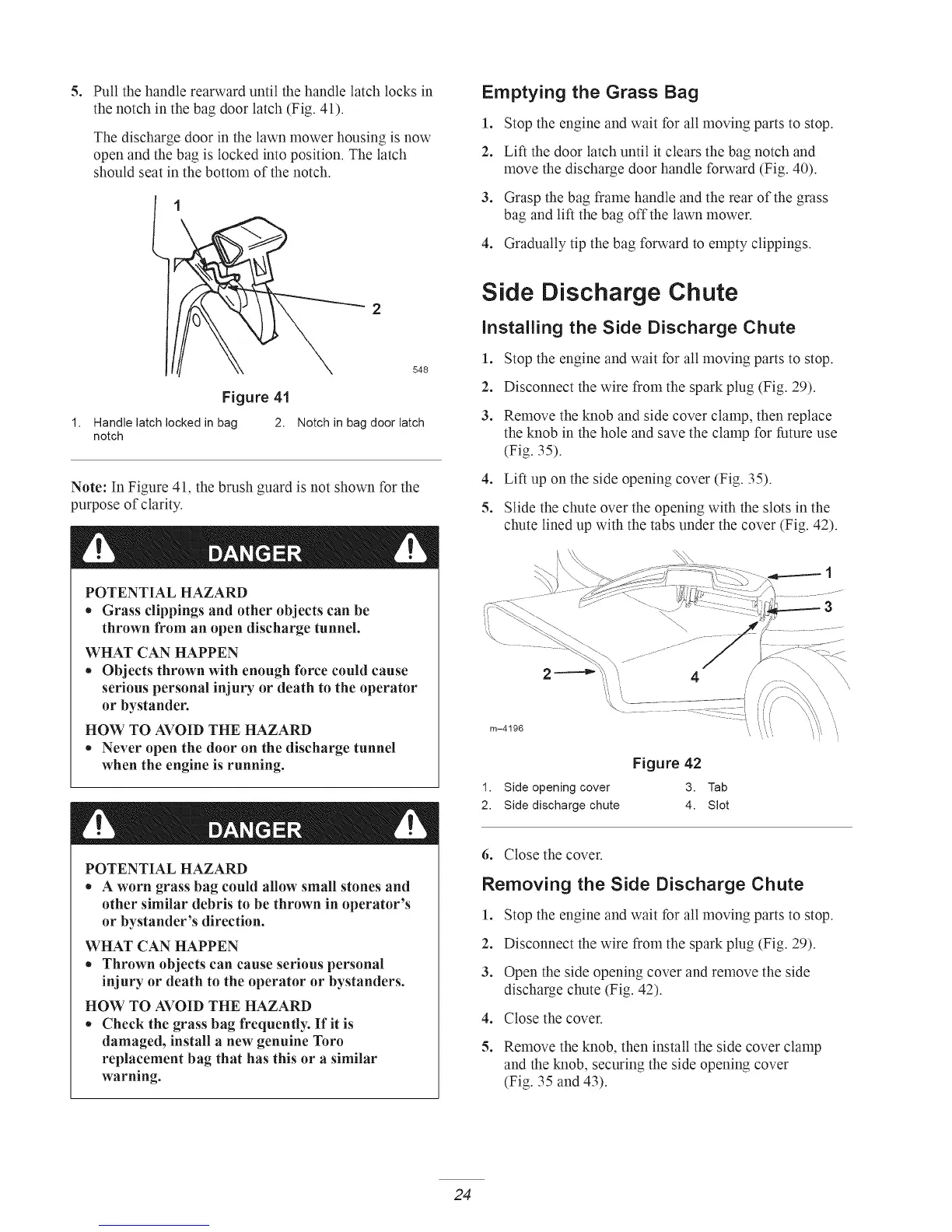

5. Pull the handle rearward until the handle latch locks in
the notch in the bag door latch (Fig. 41).
The discharge door in the lawn mower housing is now
open and the bag is locked into position. The latch
should seat in the bottom of the notch.
l
2
Figure 41
Handle latch locked in bag 2.
notch
548
Notch in bag door latch
Note: In Figure 41, the brush guard is not shown for the
purpose of clarity.
POTENTIAL HAZARD
* Grass clippings and other objects can be
thrown from an open discharge tunnel.
WHAT CAN HAPPEN
* Objects thrown with enough force could cause
serious personal injury or death to the operator
or bystander.
HOW TO AVOID THE HAZARD
* Never open the door on the discharge tunnel
when the engine is running.
POTENTIAL HAZARD
* A worn grass bag could allow small stones and
other similar debris to be thrown in operator's
or bystander's direction.
WHAT CAN HAPPEN
* Thrown objects can cause serious personal
injury or death to the operator or bystanders.
HOW TO AVOID THE HAZARD
* Check the grass bag frequently. If it is
damaged, install a new genuine Toro
replacement bag that has this or a similar
warning.
Emptying the Grass Bag
1. Stop the engine and wait for all moving parts to stop.
2. Lift the door latch until it clears the bag notch and
move the discharge door handle forward (Fig. 40).
3. Grasp the bag flame handle and the rear of the grass
bag and lift the bag off the lawn mower.
4. Gradually tip the bag forward to empty clippings.
Side Discharge Chute
Installing the Side Discharge Chute
1. Stop the engine and wait for all moving parts to stop.
2. Disconnect the wire from the spark plug (Fig. 29).
3. Remove the knob and side cover clamp, then replace
the knob in the hole and save the clamp for future use
(Fig. 35).
4. Lift up on the side opening cover (Fig. 35).
5. Slide the chute over the opening with the slots in the
chute lined up with the tabs under the cover (Fig. 42).
1
4
m-4196
Figure 42
1. Side opening cover 3. Tab
2. Side discharge chute 4. Slot
6. Close the cover.
Removing the Side Discharge Chute
1. Stop the engine and wait for all moving parts to stop.
2. Disconnect the wire from the spark plug (Fig. 29).
3. Open the side opening cover and remove the side
discharge chute (Fig. 42).
4. Close the cover.
5. Remove the knob, then install the side cover clamp
and the lamb, securing the side opening cover
(Fig. 35 and 43).
24
