-. Discharge Tunnel
Figure 43
m-4279
POTENTIAL HAZARD
* If the side opening cover is not securely
clamped in place, debris could be thrown out of
the side opening.
WHAT CAN HAPPEN
* Thrown debris can cause serious personal
injury or death to the operator or bystanders.
HOW TO AVOID THE HAZARD
* Always ensure that either the side opening
cover is closed and locked in place by the side
cover clamp or that the side discharge chute is
securely seated in place before starting the lawn
mower.

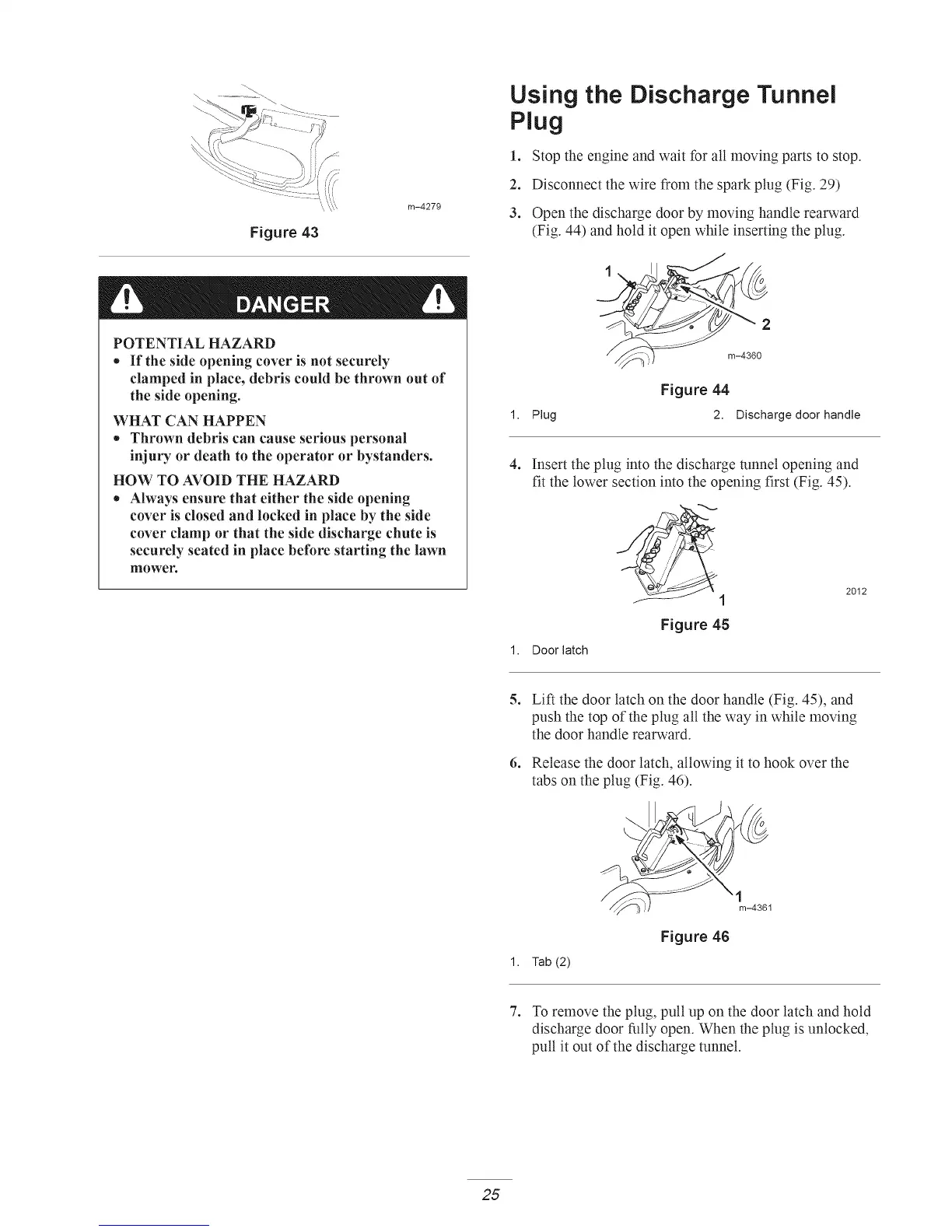

Using the
Plug
1.
2.
3.
Stop the engine and wait for all moving parts to stop.
Disconnect the wire from the spark plug (Fig. 29)
Open the discharge door by moving handle rearward
(Fig. 44) and hold it open while inserting the plug.
1. Plug
4.
2
m-4360
Figure 44
2. Discharge door handle
Insert the plug into the discharge tunnel opening and
fit the lower section into the opening first (Fig. 45).
_1 2o12
Figure 45
1. Door latch
6.
Lift the door latch on the door handle (Fig. 45), and
push the top of the plug all the way in while moving
the door handle rearward.
Release the door latch, allowing it to hook over the
tabs on the plug (Fig. 46).
1. Tab (2)
Figure 46
I
m-4361
7. To remove the plug, pull up on the door latch and hold
discharge door fillty open. When the plug is unlocked,
putt it out of the discharge tunnel.
25
