Reelmaster 3550−D/3555−D/3575−DHydraulic System Page 4 − 54

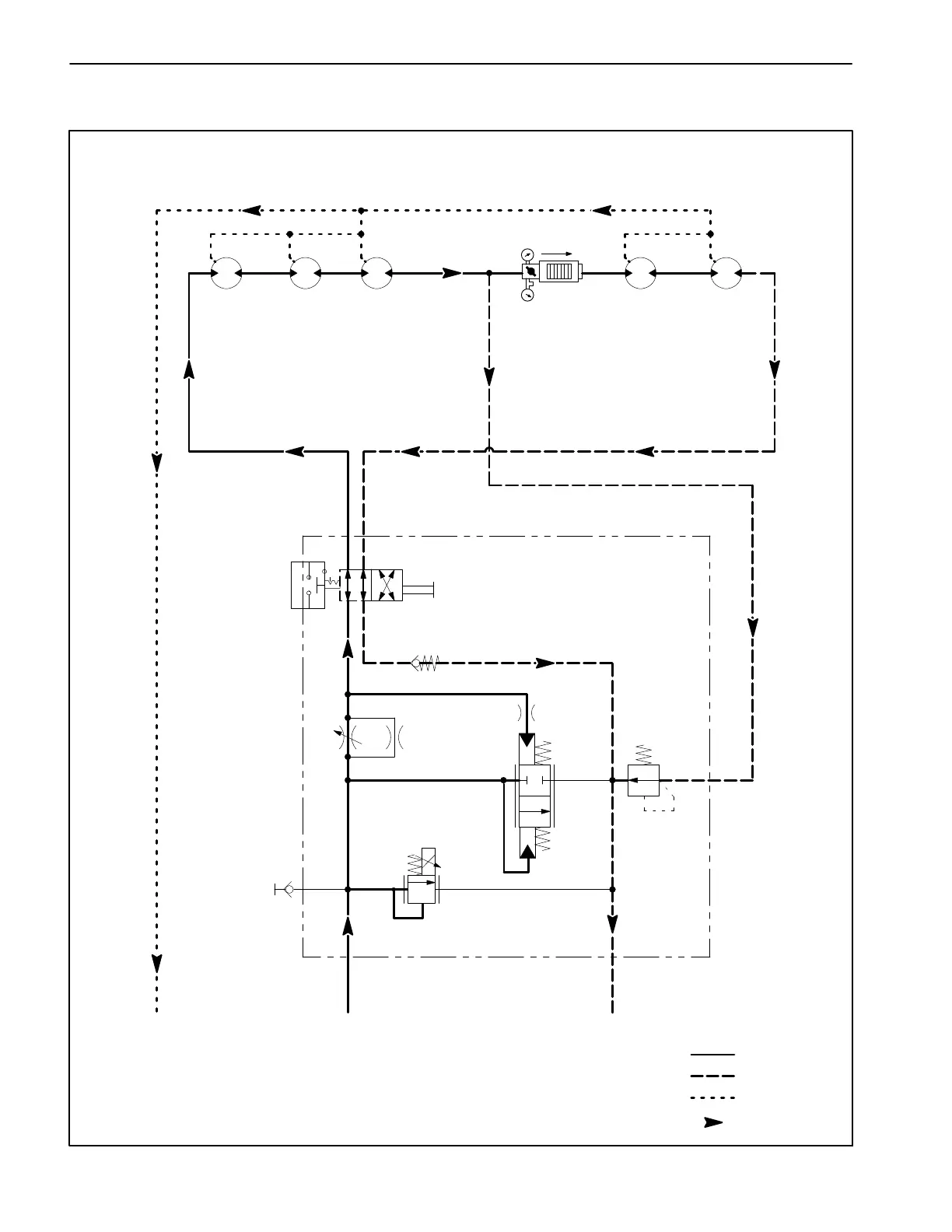

Cutting Unit Circuit Testing − Mow Control Manifold Relief Valve (RV) Pressure Test
High Pressure
Low Pressure
Return or Suction
Flow
TESTER
WITH
PRESSURE GAUGE
AND FLOW METER
BACKLAP
SWITCH
(SW)
REEL #4
LC
FC
PRV
MV
T
M1
P
G
M2
MOW CONTROL MANIFOLD
CV1
1500 PSI
M3
REEL #1 REEL #5 REEL #2 REEL #3
OR1
.050”
OR2
.020”
RV
TO
OIL COOLER
FROM
GEAR PUMP
(P1)
TO
HYDRAULIC
TANK
3000 PSI
