Snow Commander Service Manual 3 - 3
ENGINE REMOVAL / INSTALLATION

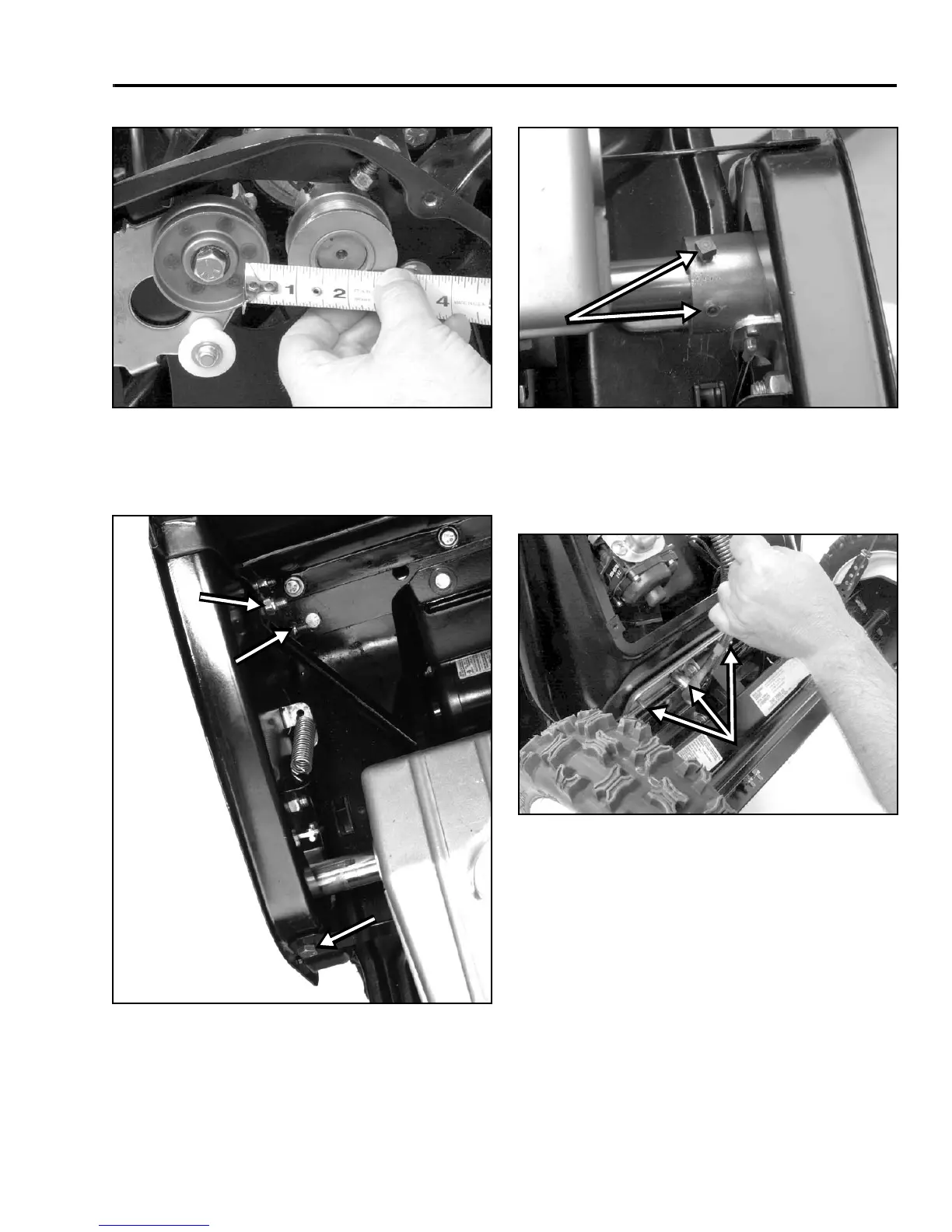

Figure 23 3428-0232
10. On the left side of the engine, is an engine brace
which is bolted to the side plate in 3 places (Figure
24). Remove all three bolts.
Figure 24
3428-0246
11. Remove the engine pulley. Loosen 2 set screws
and pull the pulley straight off (Figure 25).
Figure 25
3428-0237
12. Tip the machine forward and remove the 3
locknuts securing the center pivot bracket (Figure
26). They are on studs, so it will not be necessary
to try to hold the bolt head.
Figure 26
3428-0251
