Toro® - SnowMaster® Service Manual
3-18 Table of Contents
CHASSIS
1. Rotor-Pulley Asm.
2. Rotor Clutch Asm.
3. Flat Idler-Pulley
4. Rotor Jack shaft-Pulley
5. V Poly-Belt
6. Extension Spring
Lubricate idler arm, on both sides around pivot hole
with grease.
Spring must be assembled as shown, it must pass
through both the slot and hole in spring clip.
1
2
Extended pulley hub must be assembled towards the
rotor.
Ensure idler arm, pivots freely after assembly.
3
4
1
2
3
4
5
6
1
2
3
4

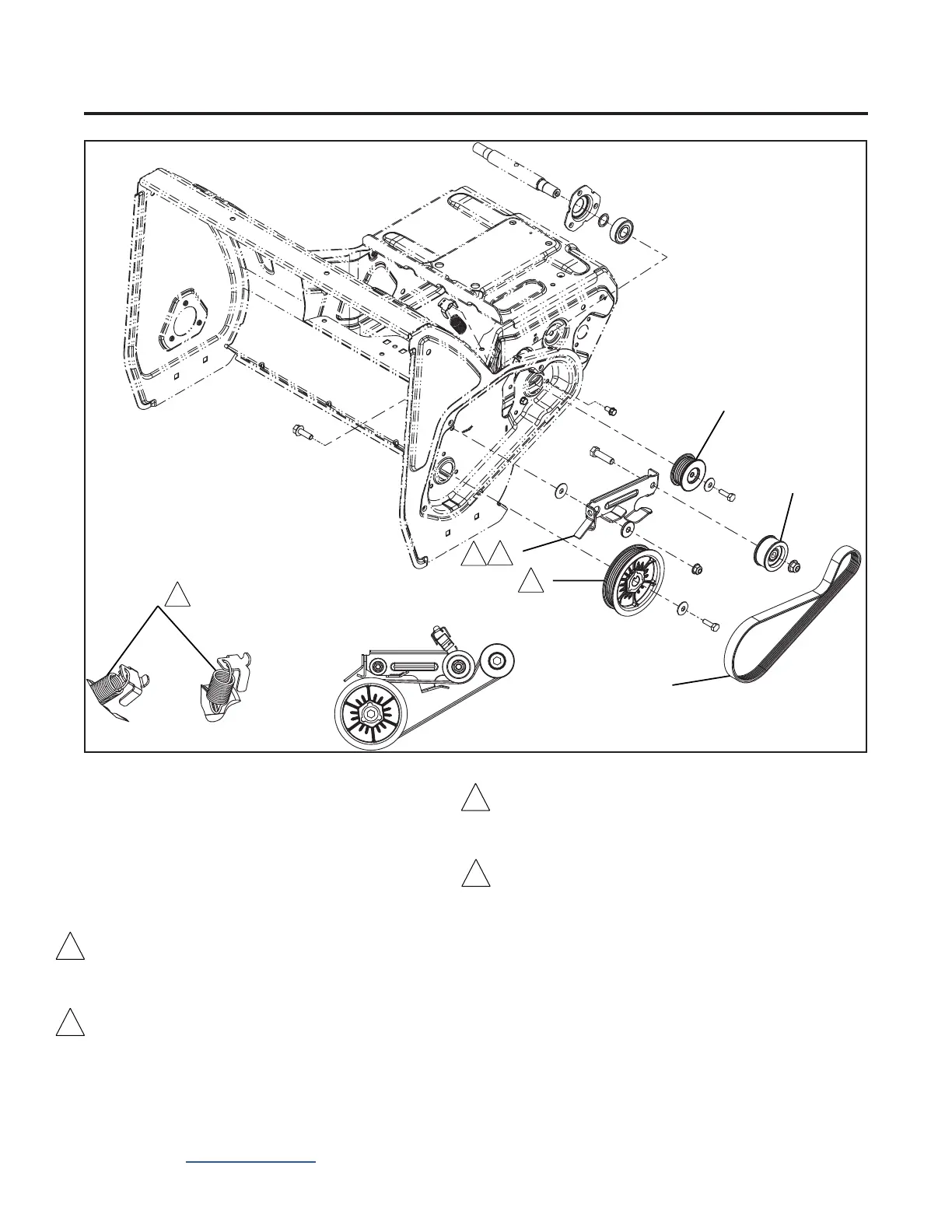

Figure 54
Rotor and Rotor Drive
