Toro® - SnowMaster® Service Manual 3-19
Chassis
3
Table of Contents
CHASSIS
Jackshaft Removal and
Replacement (Figure 54)
Removal
1. Remove the belt covers, belt, and transmission from
the unit.
2. Place a screw driver or similar tool through the hole
in the jackshaft (Figure 55).
3. Remove the bolt securing the jackshaft/rotor pulley
(item 4). Remove the pulley (Figure 56).
4. Inside the housing, remove the bolts securing the
other jackshaft pulley (item 4). Remove the pulley
(Figure 57).
5. Remove the three bearing retainer bolts from inside
the belt housing (Figure 58).
6. Remove the three bearing retainer bolts form the
side of the housing. Remove the bearing retainer
(Figure 59).

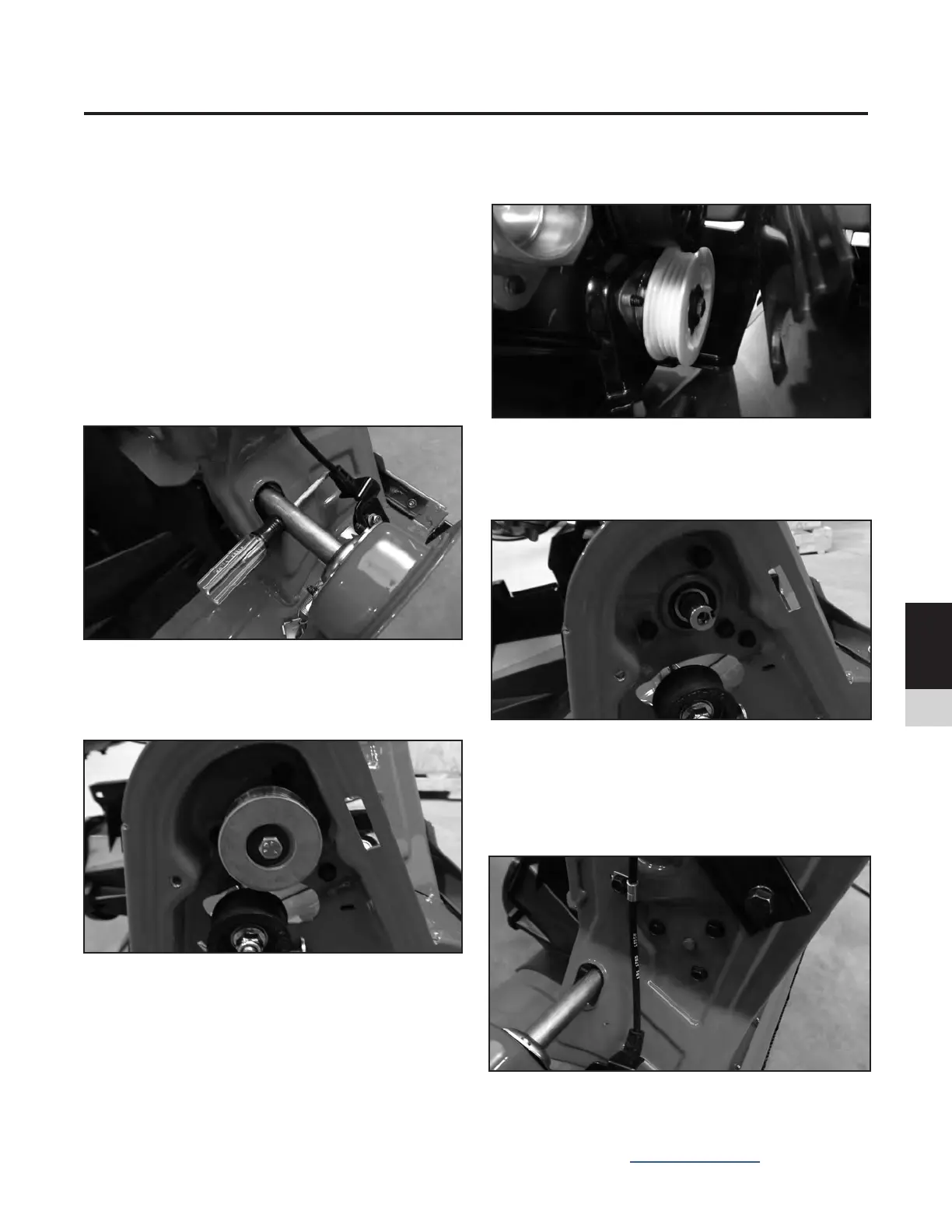

Figure 55
Figure 56
Figure 57
Figure 58
Figure 59
