CHASSIS
Jackshaft Replacement (Cont.)
Removal (Cont.)
7. Loosen the tensioner arm bolt. Move the tensioner
out of the way (Figure 60).
8. Slide the jackshaft support plate to the right and
remove (Figure 61).
Replacement
1. Slide the jackshaft, thrust washer, bearing, and
bearing retainer into the chassis, through the hole
in the belt cover (Figure 62).
2. Slide the jackshaft support plate, thrust washer,
bearing, and bearing retainer onto the jackshaft
inside the housing (Figure 63).

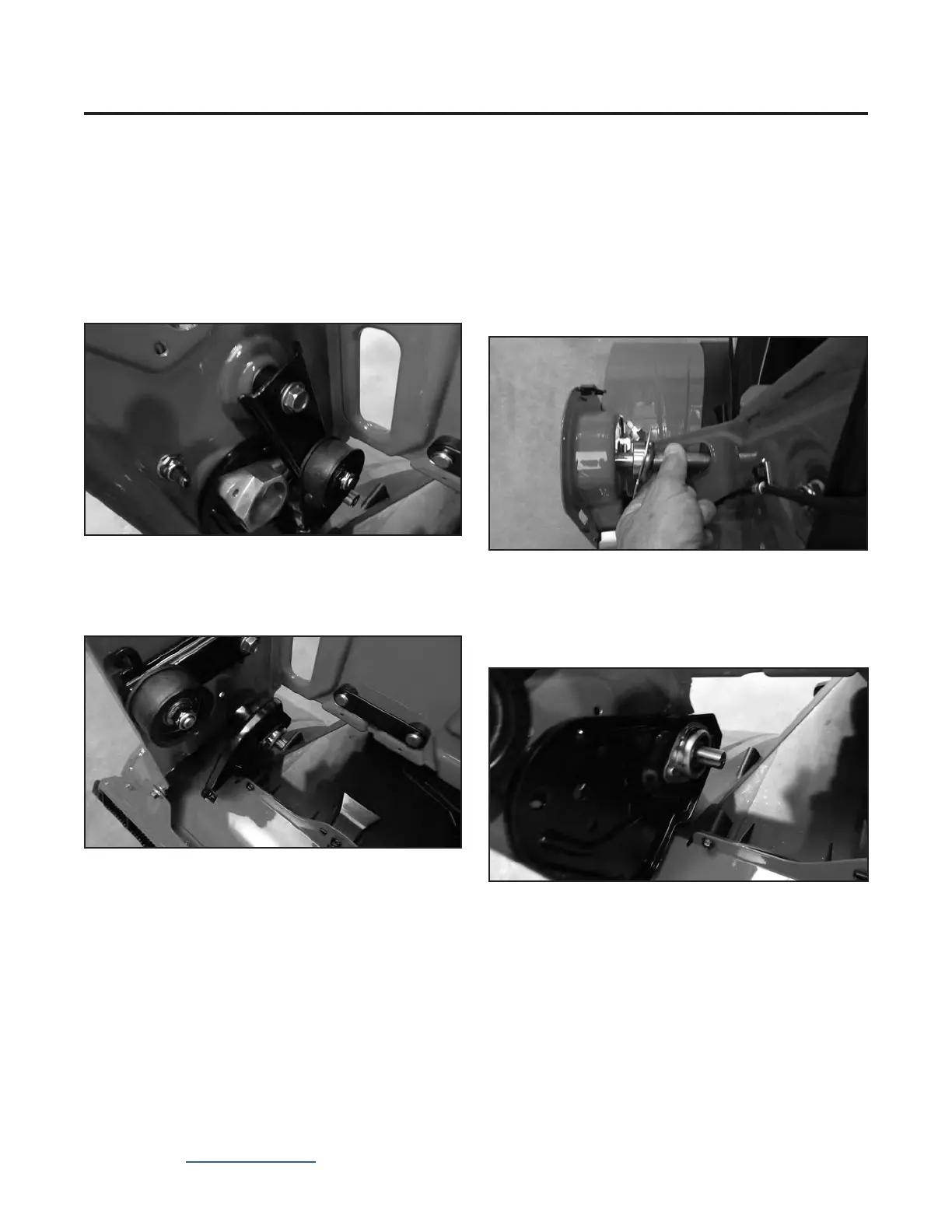

Figure 60
Figure 61
Figure 62
Figure 63
