Toro® - SnowMaster® Service Manual 3-21
Chassis
3
Table of Contents
CHASSIS
Jackshaft Replacement (Cont.)
Replacement (Cont.)

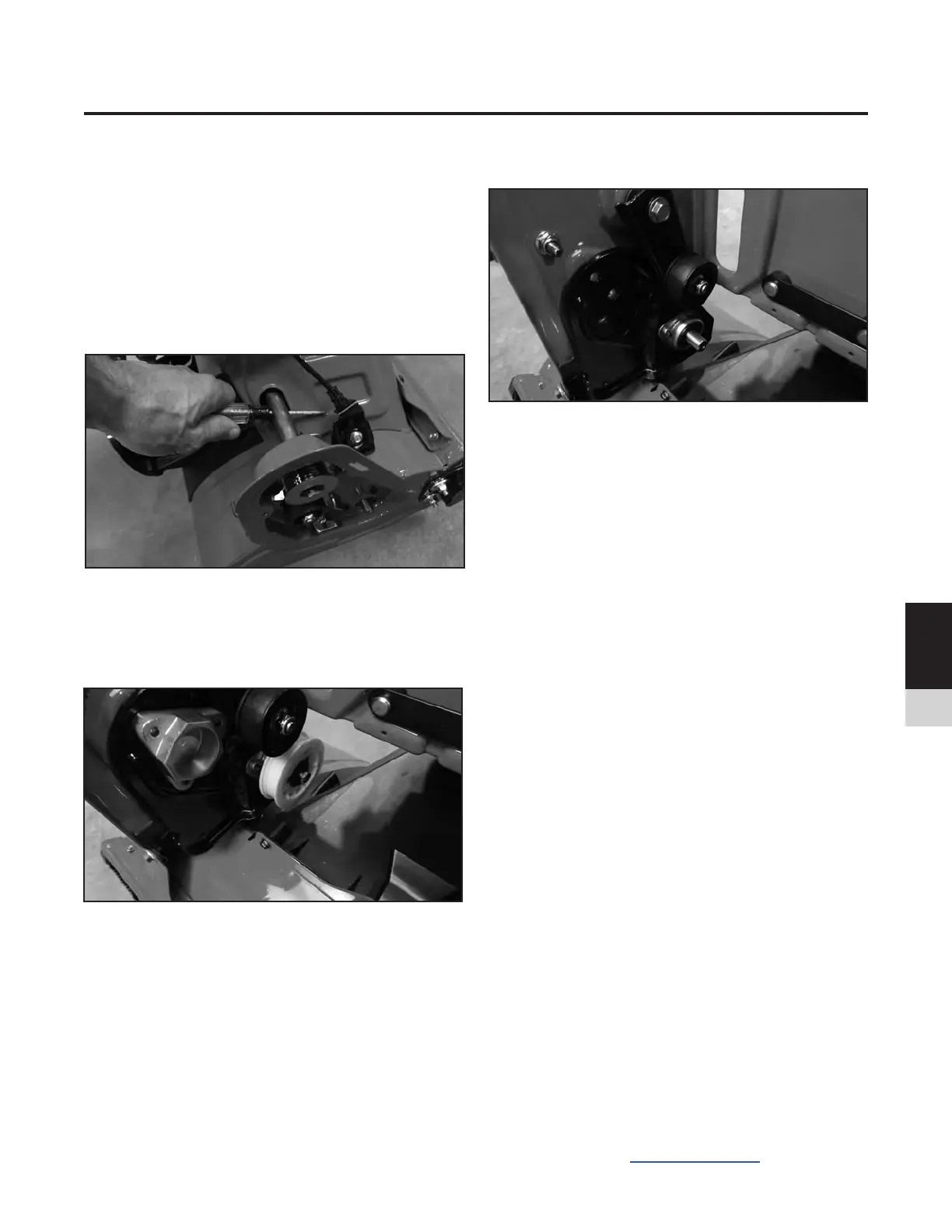

5. Insert a screw drive or similar tool into the hole in
the jackshaft. Install the jackshaft/rotor pulley. Apply
Loctite® 243 to bolt. Torque to 96 in-lbs. (11 Nm)
(Figure 64).
6. Install the other jackshaft pulley. Torque to 96 in-lbs.
(11 Nm). Install the lower bearing retainer. Torque
to 96 in-lbs. (11 Nm) (Figure 65).
3. Install the mounting bolts. Torque to 96 in-lbs. (11
Nm).
4. Slide the tensioner arm back into position. Torque to
30 ft-lbs. (40 Nm) (Figure 66).
Figure 66
Figure 64
Figure 65
