CHASSIS
Transmission Replacement (Cont.)
Replacement

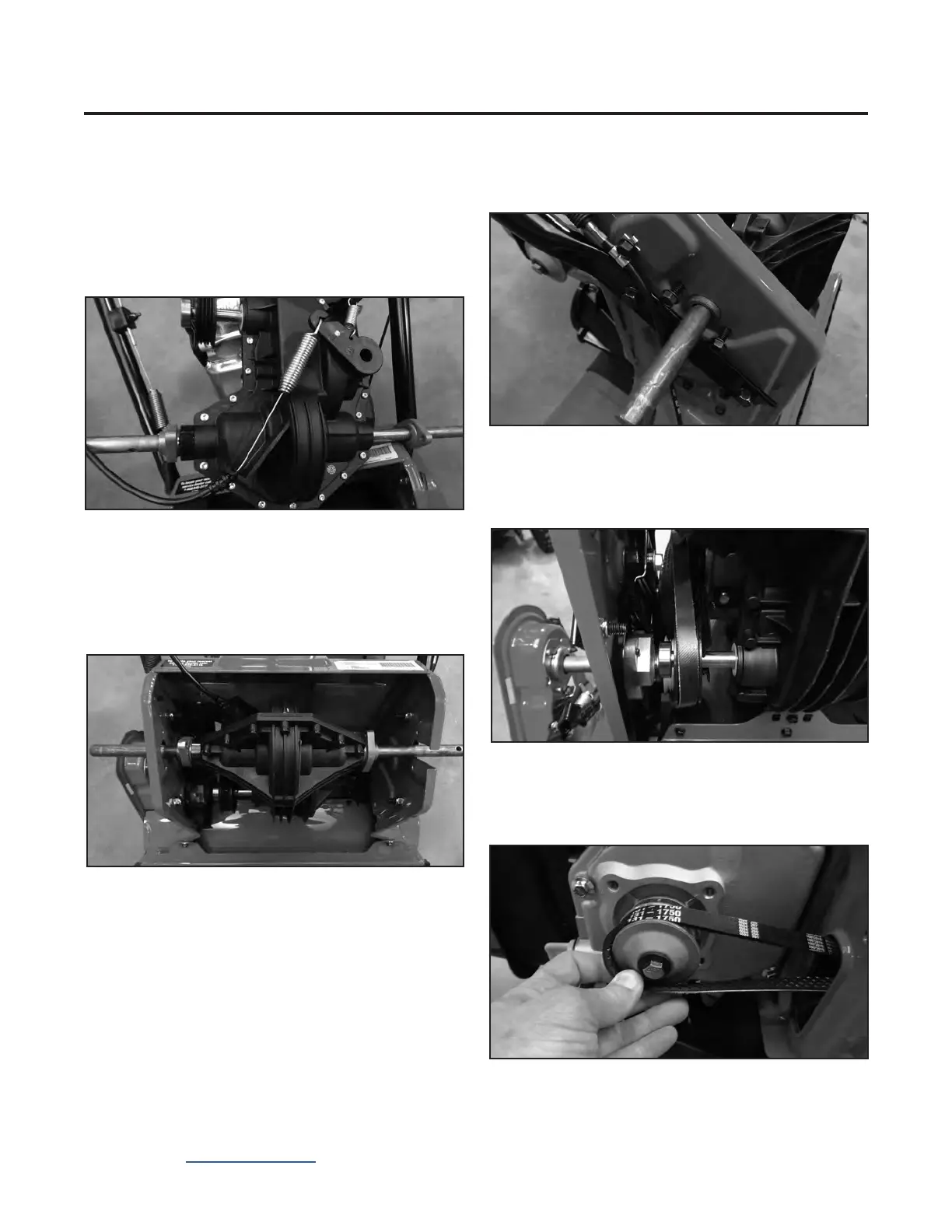

1. Install the traction cable (Figure 67).
2. Slide the bearings and bearing retainers on the
drive shafts. Insert the left side axle through the
hole in the housing and set the right side axle in the
axle slot (Figure 68).
3. Slide the bearing carriers to the housing and install
the mounting bolts. Torque bolt to 96 in-lbs. (11 Nm)
(Figure 69).
4. Slide the drive belt up through the housing and
around the lower pulley (Figure 70).
5. Route the belt the correct way and install belt on
crankshaft pulley (Figure 71).
Figure 67
Figure 68
Figure 69
Figure 70
Figure 71
