Spezifikationen
ABMESSUNGEN
Steuerung
186 mm B
140 mm H
67 mm T
Programmiermodul TEMP-MOD
186 mm B
140 mm H
47 mm T
Rückseitenmodul TEMP-B-4 /B-6 / B-8 INDOOR
149 mm B
104 mm H
37 mm T
LEISTUNG
Rückseitenmodul TEMP-B-4 /B-6 / B-8
Stromversorgung: 24 V AC 50/60 Hz @ 0,625 A
Ausgang zu jedem Magnetventil und zu MV: 24 V AC @ 250 mA
Maximal 2 Ausgänge gleichzeitig EIN, einschließlich MV
Sensoreingang: N.C. Potentialfreier Kontakt - 24 V AC @ 15 mA
Programmiermodul TEMP-MOD
Stromversorgung: 24 V AC 50/60 Hz @ 150 mA
WLAN-Modul (optional)
Stromversorgung: 3,3 V DC @ 150 mA
VERWENDUNG
Programmiermodul und Rückseitenmodul (TEMP-B-4, TEMP-B-6,
TEMP-B-8) funktionieren nur als zusammengehörendes Paar.
BETRIEBSTEMPERATUR
Von -10 °C bis 60 °C
• Unterbrechung bedeutet: Type 1Y
• Verschmutzungsgrad: 2
• Bemessungsstoßspannung: 330V

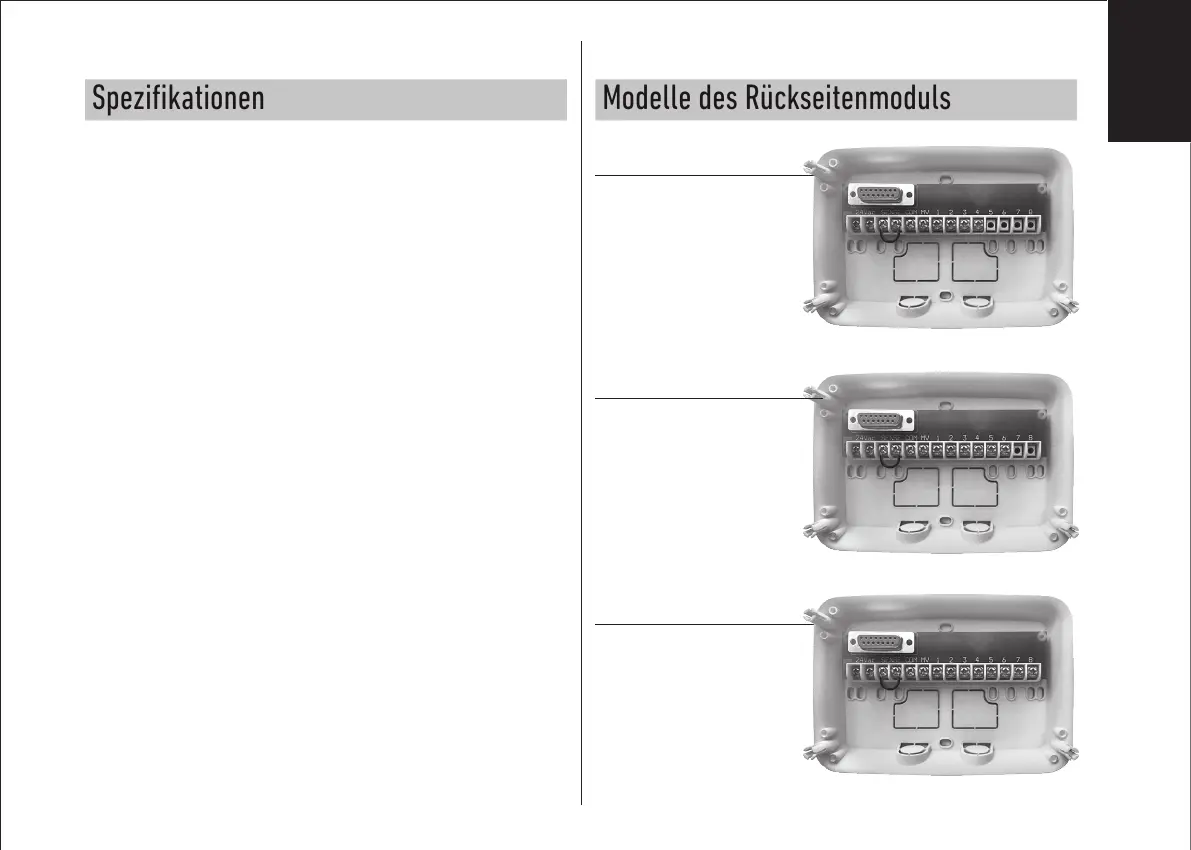

Modelle des Rückseitenmoduls
TEMP-B-4
4 Stationen+MV
TEMP-B-6
6 Stationen+MV
TEMP-B-8
8 Stationen+MV
Toro TEMPUS Controller 4
_
6
_
8
Deutsch
