FillingtheFuelTank
Makesuretheengineisshutoffandthemotioncontrolsare
intheparkposition.Tankmaximumcapacityis2.9gallons.
Important:DoNotoverllfueltank.Fillthefueltank
tothebottomofthellerneck.Theemptyspaceinthe
tankallowsthefueltoexpand.Overllingmayresult
infuelleakageordamagetotheengineoremissions
system.
1.Cleanaroundthefueltankcapandremovethecap.
Note:Youcanusethefuelwindowtoverifythe
presenceofgasolinebeforellingthetank(Figure9).
2.Slowlyaddregular,unleadedgasolineuntilthefuel
reachesthebaseofthellerneck(Figure9).
G014474
1
2
3
4
5
6

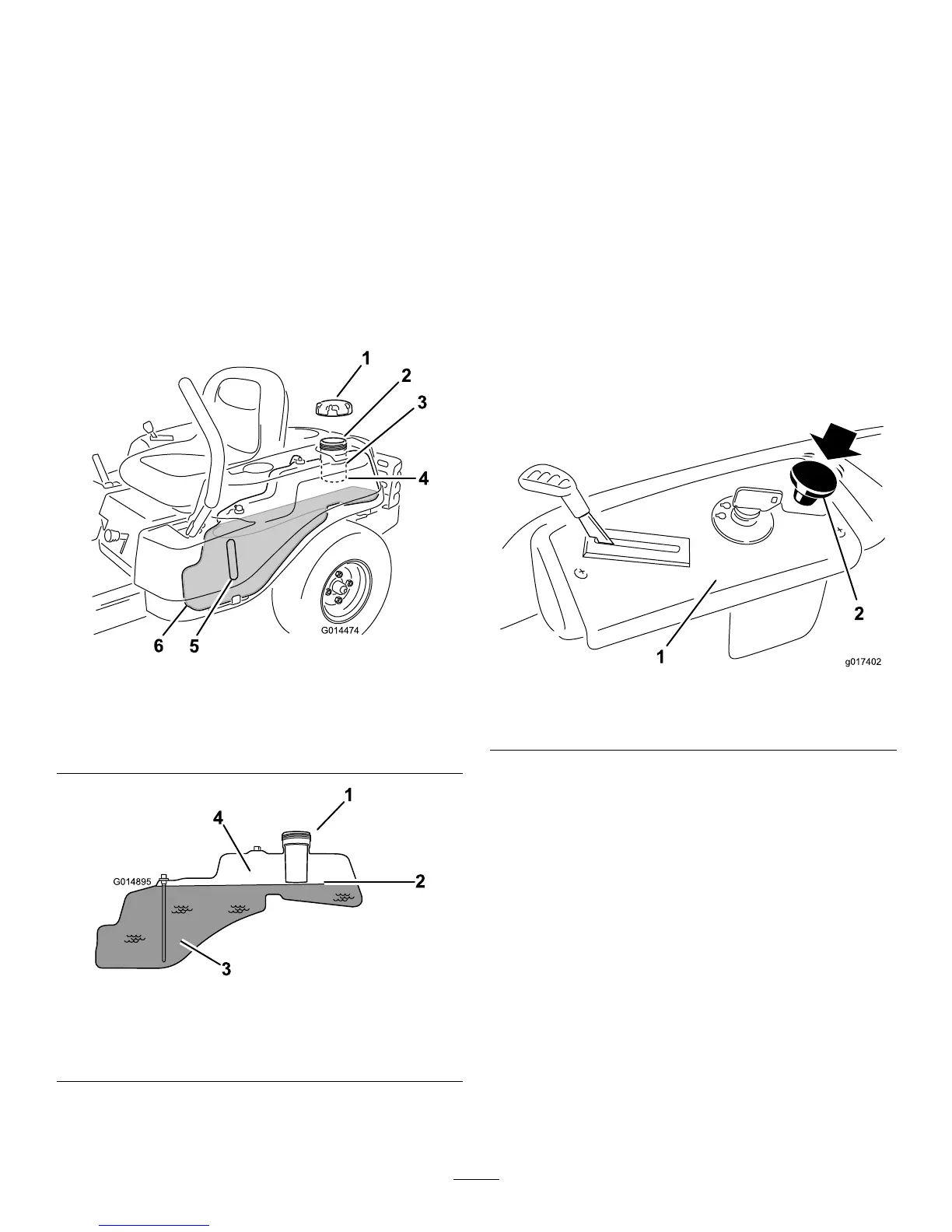

Figure9
1.Fueltankcap
4.Baseofllerneck,DO
NOTFILLPASTHERE
2.Fillopening5.Fuelwindow
3.Fillerneck
G014895
1
2
3
4
Figure10
1.Fillopening3.Fuel
2.Baseofllerneck,DO
NOTFILLPASTHERE
4.Emptyspaceforfuel
expansion.
Important:DoNotoverllfueltank.Fillthe
fueltanktothebottomofthellerneck.The
emptyspaceinthetankallowsthefueltoexpand.
Overllingmayresultinfuelleakageordamage
totheengine.
3.Installthefueltankcapsecurelyandtightenuntilit
“clicks”.Wipeupanygasolinethatmayhavespilled.
CheckingtheEngineOilLevel
Beforeyoustarttheengineandusethemachine,checktheoil
levelintheenginecrankcase;refertoCheckingtheOilLevel
intheEngineMaintenancesection.
StartingtheEngine
1.Sitdownontheseatandmovethemotioncontrols
outwardtotheparkposition.
2.Disengagethebladesbymovingthebladecontrol
switchtoOff(Figure11).
Figure11
1.Controlpanel2.Bladecontrolswitch—Off
position
3.MovethethrottlelevertoChokebeforestartingacold
engine(Figure12).
Itmaybenecessarytoholdtheleveragainstthestop,
inthechokeposition,whiletryingtostarttheengine.
Note:Awarmorhotenginemaynotrequirechoking.
